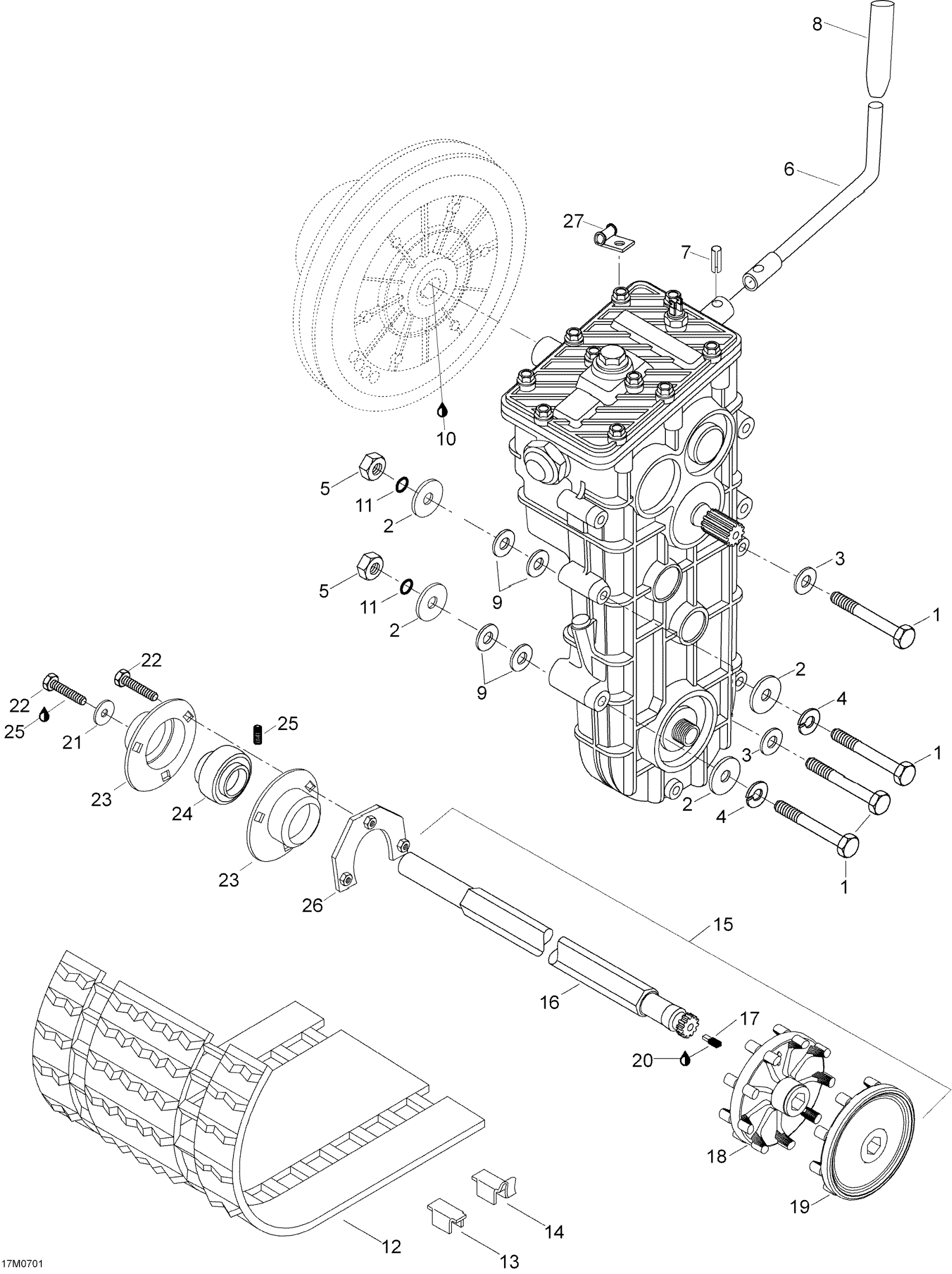

Ski-Doo Skandic SUV 600, 2007 Drive System 600 SUV Diagram
#
Description
Price
1
Screw M8 X 80
M40012
Unavailable
3
Flat Washer 8 mm
234081410
Unavailable
4
Lock Washer 8 mm
234181401
Unavailable
5
Hex. Elastic Stop Nut M8
232581414
Unavailable
6
Lever welding - Call your local BRP dealership
5340902
Unavailable
7
PIN SPRING - Call your local BRP dealership
M41007
Unavailable
8
Shift button This part replaces M28247.
28247
Unavailable
9
M8 Washer This part replaces M20077.
20077
Unavailable
10
LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership
219704461
Unavailable
11
O-RING - Call your local BRP dealership
506151140
Unavailable
12
Track ass'y | Includes 10 to 12 This part replaces M13070.
13070
Unavailable
13
CLEAT - Call your local BRP dealership
M5318322
Unavailable
14
CLEAT-GUIDE - Call your local BRP dealership
M5318323
Unavailable
15
Not Available As Spare Part - Friction Washer
Unavailable
16
Drive Axle This part replaces M5345117.
5345117
Unavailable
17
Speed Drive Insert This part replaces M542013.
542013
Unavailable
19
HALF SPROCKET - Call your local BRP dealership
415067400
Unavailable
21
Washer
M546336
Unavailable
22
HEX. SCREW M8 X 20 - Call your local BRP dealership This part replaces M40336.
40336
Unavailable
23
Bearing House This part replaces M534430.
534430
Unavailable
24
BALL BEARING - Call your local BRP dealership | Includes 24 to 25
M31UC205
Unavailable
25
BALL BEARING - Call your local BRP dealership | Includes 24 to 25
M31UC205
Unavailable
26
Fasten Ring Weld This part replaces M546421.
546421
Unavailable
27
WIRE-HOLDER - Call your local BRP dealership
M5443134
Unavailable
