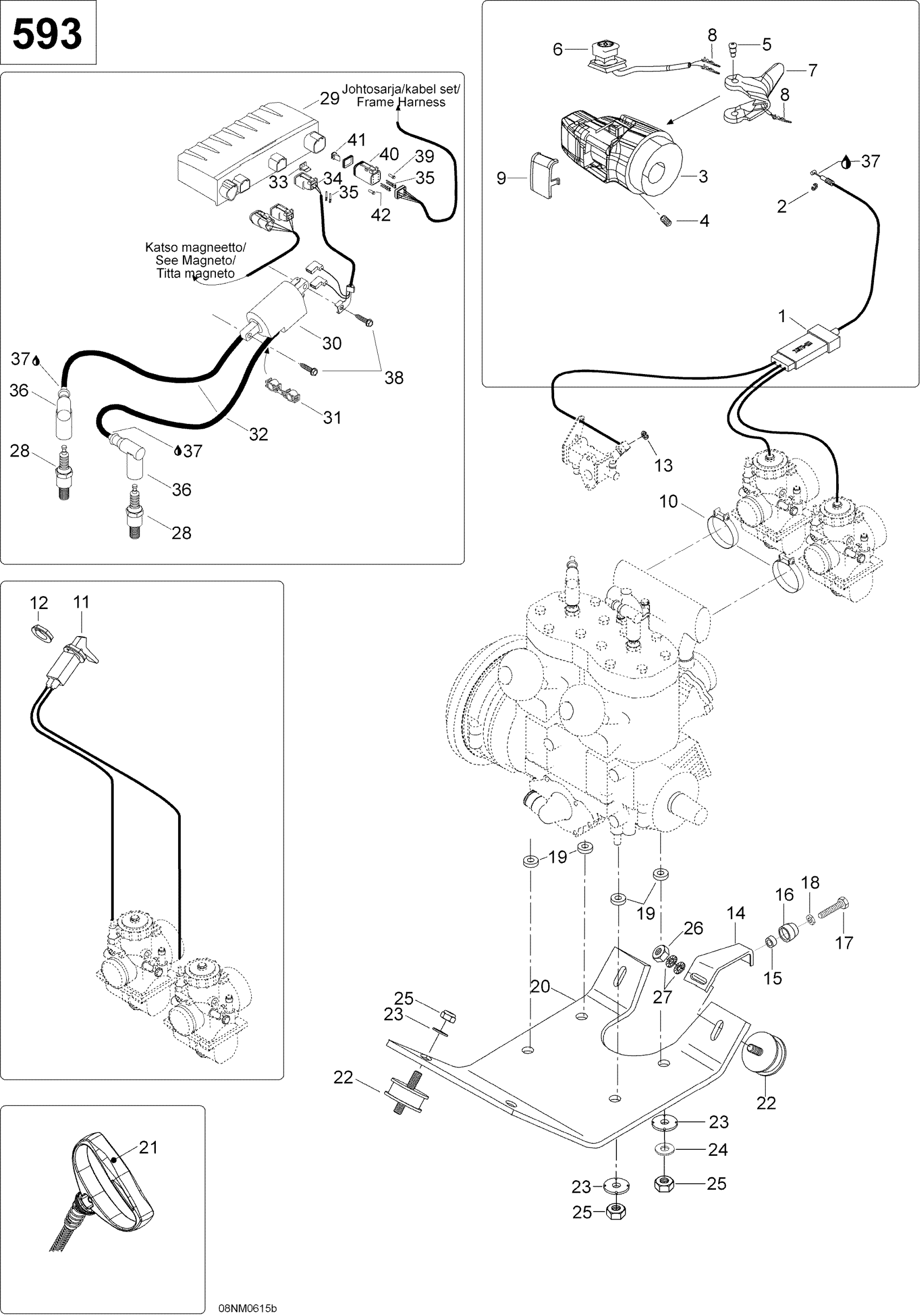

Ski-Doo Skandic SUV 600, 2006 Engine And Engine Support Diagram

#

Description
Price

1

THROTTLE CABLE - Call your local BRP dealership

M5246328

Unavailable

2

Circlip

M31038

Unavailable

3

THROTTLE HOUSING - Call your local BRP dealership

512059243

Unavailable

4

Socket Set Screw M8 X 10

414440800

$4.00

5

Flange Screw

732601143

$4.02

6

Kill Switch

515175410

Unavailable

7

Handle Ass'y

512059348

Unavailable

8

CONNECTOR - Call your local BRP dealership

605642628

Unavailable

9

Switch Cover

572100901

Unavailable

10

COLLAR - Call your local BRP dealership

414532700

Unavailable

11

Choke This part replaces M535482.

535482

Unavailable

12

PLASTIC NUT - Call your local BRP dealership

512059094

Unavailable

13

Circlip

414753500

$0.59

14

Support

M539902

Unavailable

15

Rubber Washer

M2846014

Unavailable

16

SLEEVE - Call your local BRP dealership

605449240

Unavailable

17

Hex. Screw M8 X 25

M40121

Unavailable

18

NUT - Call your local BRP dealership

M33003

Unavailable

19

SLEEVE - Call your local BRP dealership

M5446347

Unavailable

20

Engine Support

605248305

Unavailable

21

Starter Grip

572084400

Unavailable

22

RUBBER MOUNT - Call your local BRP dealership

570128700

Unavailable

23

Lock Washer

512056700

Unavailable

24

WASHER M10 - Call your local BRP dealership

20005

Unavailable

25

Elastic Locking Nut M10 X 1.5

233601416

$1.68

26

Hex. Nut M10 X 1.5

232006414

$1.11

27

Lock Washer D10

20068

Unavailable

28

Spark Plug NGK BR9ECS-5

512059552

$9.70

29

Calibration Module

605350037

Unavailable

30

Ignition Coil

410922935

Unavailable

31

Plastic Clip, Spark Plug Wire

410914600

Unavailable

32

SPARK PLUG WIRE - Call your local BRP dealership This part replaces 278001268.

278002198

Unavailable

33

Male Wedge 2 Ways

M42609

Unavailable

34

Female Connector, 2 Circuits

409207300

$9.60

35

Female Terminal

278000632

Unavailable

36

SPARK PLUG CAP - Call your local BRP dealership

278000237

Unavailable

37

Was 293550004 Dielectric Grease, 150 g

219704453

Unavailable

38

Screw

M40377

Unavailable

39

PLUG - Call your local BRP dealership

515175303

Unavailable

40

MALE HOUSING, 6 CIRCUITS - Call your local BRP dealership

710001540

Unavailable

41

MALE LOCK, 6 CIRCUITS - Call your local BRP dealership

278000737

Unavailable

42

Sealing Cap

293000052

Unavailable
