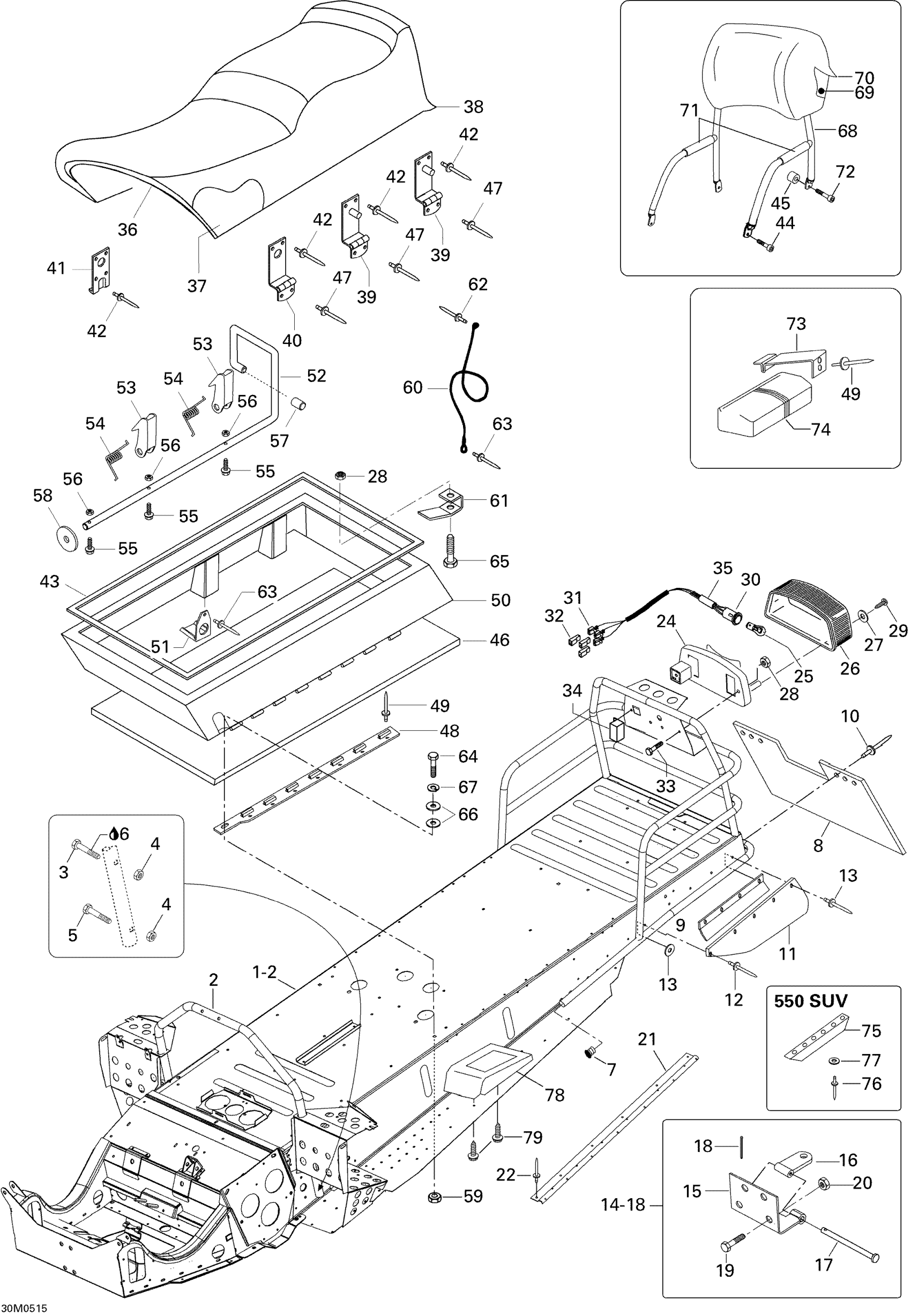

Ski-Doo Skandic SUV 600, 2005 Frame And Seat 600 SUV Diagram
#
1
Frame | 600 SUV, Includes 1 to 2
605149618
Unavailable
2
HANDLE SUPPORT - Call your local BRP dealership
605150258
Unavailable
3
Hex. Screw M6 X 30
207063044
Unavailable
7
PLUG - Call your local BRP dealership
M28136
Unavailable
8
Snow guard This part replaces M538629.
538629
Unavailable
9
Support
M5340532
Unavailable
10
Black, Rivet
M36036
Unavailable
11
Side Snowguard This part replaces M5142828.
5142828
Unavailable
12
RIVET - Call your local BRP dealership
M36097
Unavailable
14
Not Available As Spare Part - Friction Washer
Unavailable
15
Fitting Plate | Model- North America This part replaces M5344151.
5344151
Unavailable
16
TONGUE WELD - Call your local BRP dealership | Model- North America This part replaces M548745.
548745
Unavailable
17
PIN-RETAINER - Call your local BRP dealership | North America
560309200
Unavailable
19
HEX. SCREW M8 X 20 - Call your local BRP dealership This part replaces M40336.
40336
Unavailable
20
Hex. Elastic Stop Nut M8
232581414
Unavailable
21
ANTISLIPERRY RUNNING BAND - Call your local BRP dealership
605348881
Unavailable
22
Rivet
M36010
Unavailable
23
Not Available As Spare Part - Friction Washer
Unavailable
24
LIGHT HOUSING - Call your local BRP dealership
510004061
Unavailable
26
Lens
414513700
Unavailable
27
Washer - Call your local BRP dealership
414516400
Unavailable
28
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
29
Phillips Tapping Screw M3.9 X 25
209632540
Unavailable
30
Adapter
515175852
Unavailable
33
Hex. Screw M6 X 30
207063044
Unavailable
34
Adaptor
M5345713
Unavailable
35
Housing
M39023
Unavailable
36
Sub Seat
M519394
Unavailable
37
Foam Seat
605148623
Unavailable
38
COVER - Call your local BRP dealership
605153063
Unavailable
39
HINGE - Call your local BRP dealership
M549874
Unavailable
40
HINGE - Call your local BRP dealership
M5440581
Unavailable
41
Lock Plate
M549732
Unavailable
42
Rivet
M36071
Unavailable
43
SEALING STRIP PROFIL - Call your local BRP dealership
M5440059
Unavailable
44
SCREW-SOCKET - Call your local BRP dealership
M40388
Unavailable
45
Spacer
M5440665
Unavailable
46
Foam | SUV 600
M5346079
Unavailable
47
Rivet
M36489
Unavailable
48
RH Support
M5144029
Unavailable
48
LH Support
M5144028
Unavailable
50
Welded Seat Base Weld
M5142066
Unavailable
51
Support
M5443661
Unavailable
52
Pivot Pin
M5344987
Unavailable
53
CAM LOCK - Call your local BRP dealership
605451589
Unavailable
54
SPRING - Call your local BRP dealership
M5444439
Unavailable
55
Screw M4 X 16
M40144
Unavailable
57
Cap
M28019
Unavailable
58
Flat Washer 8 mm
234081410
Unavailable
59
NUT M6 - Call your local BRP dealership
M33066
Unavailable
60
Retainer Cable | SUV 600
M5447746
Unavailable
61
Not Available As Spare Parts
XXX
Unavailable
62
Rivet
M36038
Unavailable
63
Rivet This part replaces M36009.
36009
Unavailable
64
Socket Head Screw M6 X 20
M40052
Unavailable
65
Not Available As Spare Parts
XXX
Unavailable
68
Backrest
M5245664
Unavailable
69
Backrest Foam
M539399
Unavailable
70
COVER-BACKREST - Call your local BRP dealership This part replaces M5340917.
5340917
Unavailable
71
RH Grip, 250 mm
415050300
Unavailable
72
Allen Screw
M40389
Unavailable
73
SPRING-HOLDER - Call your local BRP dealership
M5344443
Unavailable
74
TOOL KIT - Call your local BRP dealership
605350525
Unavailable
75
Not Available As Spare Parts
XXX
Unavailable
76
Not Available As Spare Parts
XXX
Unavailable
77
Not Available As Spare Parts
XXX
Unavailable
78
RH Rear Footrest | Europe
414975300
Unavailable
78
LH Rear Footrest | Europe
414975400
Unavailable
79
HEX. TAPING SCREW - Call your local BRP dealership This part replaces M40870.
40870
Unavailable
80
Rivet | 600 SUV
M36103
Unavailable
