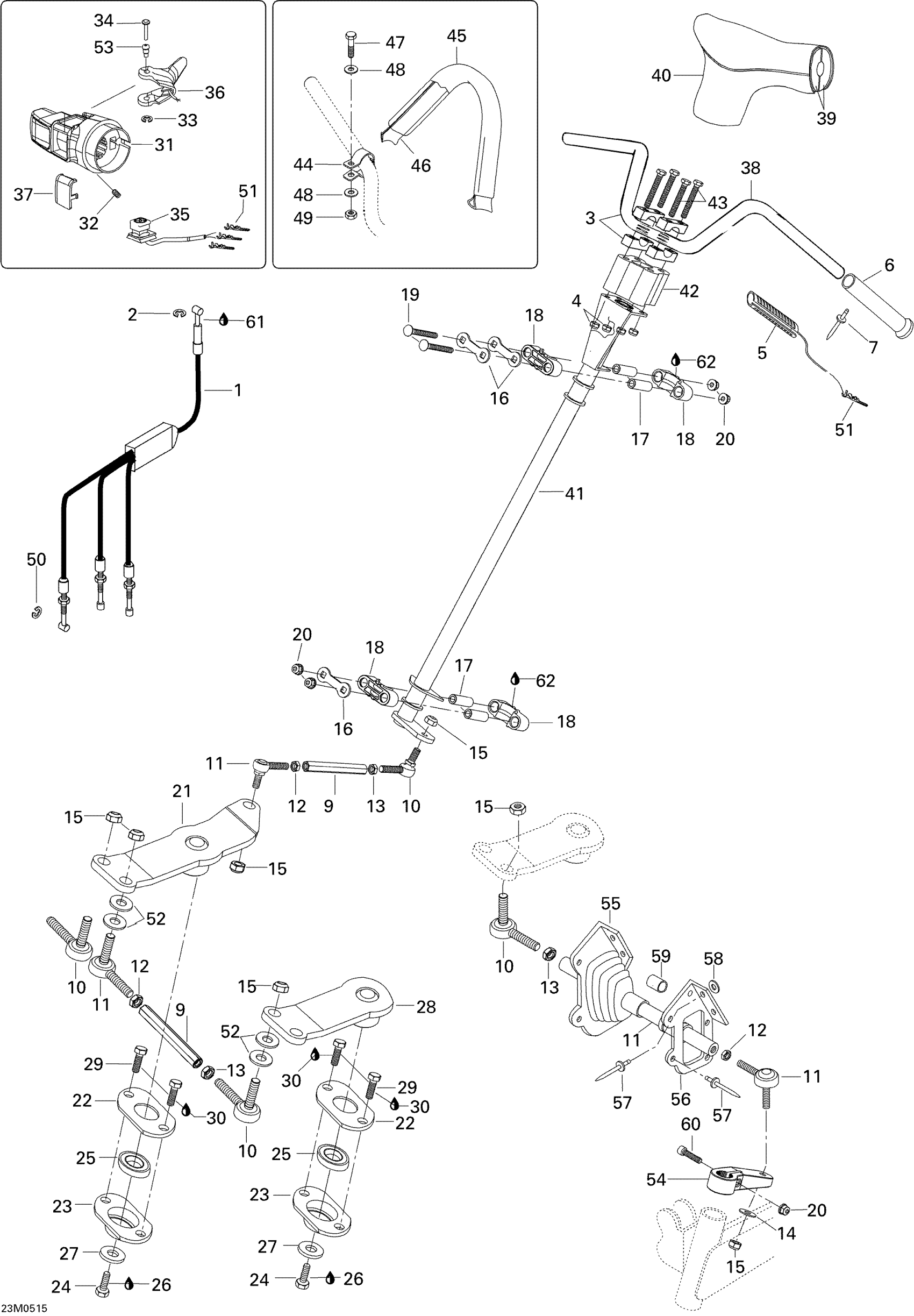

Ski-Doo Skandic SUV 600, 2005 Steering System 600 SUV Diagram

#

Description
Price

1

THROTTLE CABLE - Call your local BRP dealership

M5246328

Unavailable

2

Circlip

M31038

Unavailable

3

Support Guidon *Support-Steer.

M548448

Unavailable

4

Hex. Elastic Stop Nut M8

232581414

Unavailable

5

Heating Grip

515175664

Unavailable

6

Grip | WAKE This part replaces M5340464.

506152483

$9.85

7

Rivet

36005

Unavailable

8

ROD_LINK - Call your local BRP dealership

605448307

Unavailable

9

SHORT TIE ROD - Call your local BRP dealership

605448308

Unavailable

10

LH JOINT BALL - Call your local BRP dealership

506151845

Unavailable

11

RH BALL JOINT - Call your local BRP dealership

506151492

Unavailable

12

RH NUT - Call your local BRP dealership

M33019

Unavailable

13

LH NUT - Call your local BRP dealership

M33017

Unavailable

14

WASHER M10 - Call your local BRP dealership

20005

Unavailable

15

Elastic Flange Nut M10

232501416

Unavailable

16

Stopper Plate

506150600

Unavailable

17

Housing Bushing

506150500

Unavailable

18

Housing Half

506150400

Unavailable

19

Carriage Bolt M8 X 70

207787044

Unavailable

20

Hex. Flange Elastic Nut M8

233281414

Unavailable

21

RH WELDED LEVER - Call your local BRP dealership

605348402

Unavailable

22

Cover

M5345380

Unavailable

23

Bearing Support

605350644

Unavailable

24

Hex. Screw

M40337

Unavailable

25

Ball Bearing

293350115

Unavailable

26

Loctite 271, 10 ml

293800005

Unavailable

27

WASHER - Call your local BRP dealership

M5446279

Unavailable

28

LH WELDED LEVER - Call your local BRP dealership

605348403

Unavailable

29

HEX. SCREW M8 X 20 - Call your local BRP dealership This part replaces M40336.

40336

Unavailable

30

Loctite 243, 10 ml

293800060

$20.77

31

THROTTLE HOUSING - Call your local BRP dealership

512059243

Unavailable

32

Socket Set Screw M8 X 10

414440800

$4.00

33

Circlip | Model-RS

414439000

Unavailable

34

Lever Pin

414438700

$11.14

35

Kill Switch

515175410

Unavailable

36

Handle Ass'y

512059348

Unavailable

37

Switch Cover

572100901

Unavailable

38

HANDLE BAR - Call your local BRP dealership

605249033

Unavailable

39

Front Padding Steering

605250305

Unavailable

39

REAR PADDING STEERING - Call your local BRP dealership

605250306

Unavailable

40

Handle Bar Cover

605250279

Unavailable

41

MAIN TUBE - Call your local BRP dealership

605250189

Unavailable

42

EXTENSION - Call your local BRP dealership

605349584

Unavailable

43

SOCKET HEAD SCREW M8 X 40 - Call your local BRP dealership

M40124

Unavailable

44

Support Plate

506148200

Unavailable

45

Strap Ass'y | Package XMR

506152115

$43.05

46

Strap Ass'y | Package XMR

506152115

$43.05

47

Hex. Screw M6 X 25

207162544

Unavailable

48

Flat Washer 6 mm

234061410

Unavailable

49

Elastic Stop Nut M6

232561414

Unavailable

50

Circlip

414753500

$0.59

51

CONNECTOR - Call your local BRP dealership

605642628

Unavailable

52

WASHER M10 - Call your local BRP dealership

20005

Unavailable

53

Flange Screw

732601143

$4.02

54

Steering Arm

M5348261

Unavailable

55

RH Tie Rod Cap

570024800

Unavailable

55

LH TIE ROD CAP - Call your local BRP dealership

570024900

Unavailable

56

RH Cap Plate

517241200

Unavailable

56

LH CAP PLATE - Call your local BRP dealership

517241300

Unavailable

57

Black, Rivet

M36036

Unavailable

58

Washer 5,3 mm

20008

Unavailable

59

BUSHING - Call your local BRP dealership

572036500

Unavailable

60

Allen Screw M8 X 45

M40828

Unavailable

61

Was 293550004 Dielectric Grease, 150 g

219704453

Unavailable

62

SUSPENSION GREASE, 10 X 400 G - Call your local BRP dealership

293550033

Unavailable
