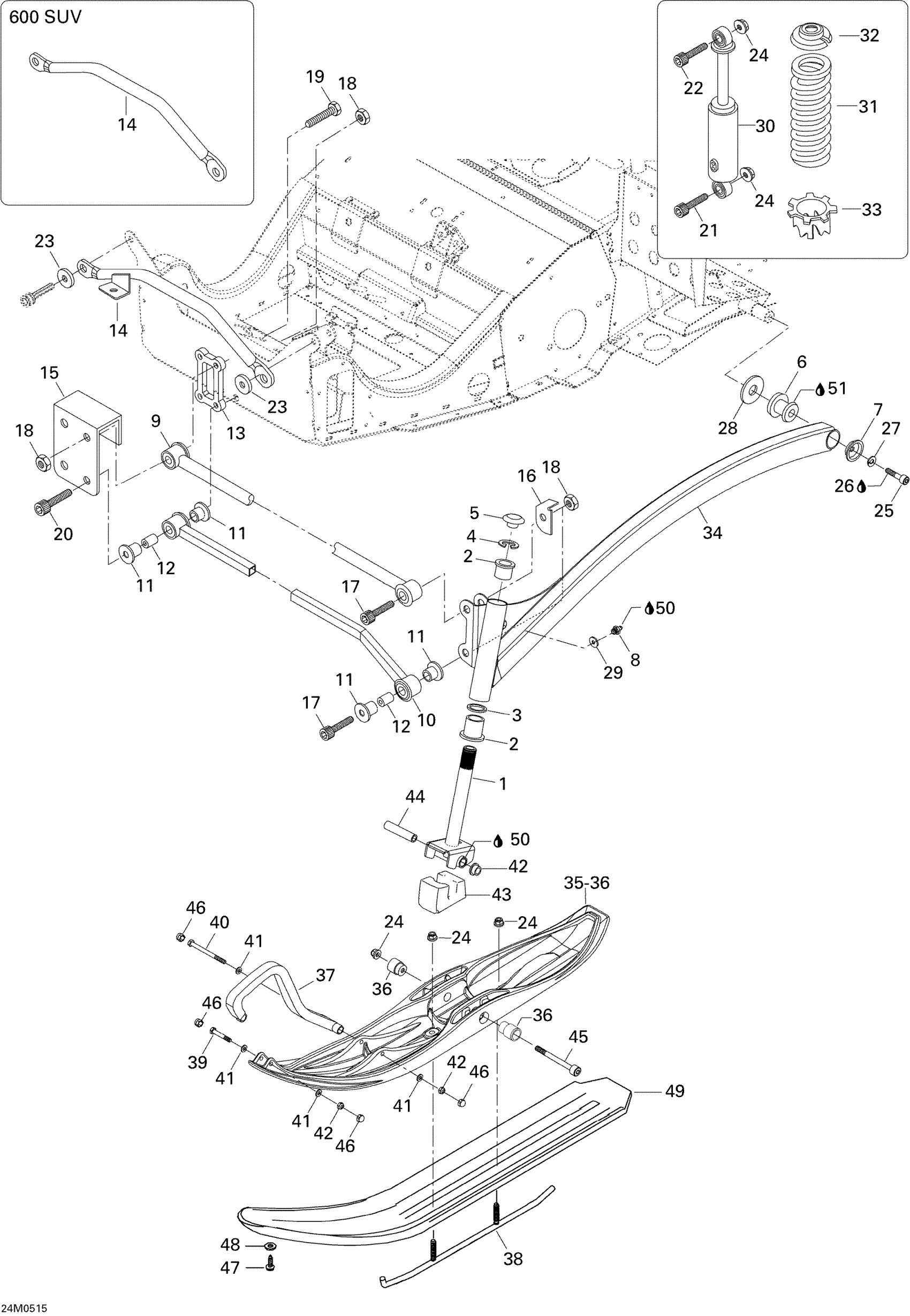

Ski-Doo Skandic SUV 600, 2005 Front Suspension And Ski Diagram

#

Description
Price

1

Ski Leg

506151234

Unavailable

2

Cushion

505070003

Unavailable

3

WASHER - Call your local BRP dealership

505070004

Unavailable

4

CIRCLIP - Call your local BRP dealership

371910400

Unavailable

5

Cap

572091300

$8.97

6

DAMPER - Call your local BRP dealership

570062200

Unavailable

7

Cup | Package Hunter

705007171

Unavailable

8

Grease Fitting M6 x 1,00(1=10pcs) - Call your local BRP dealership This part replaces M34011.

34011

Unavailable

9

UPPER ARM ASS'Y - Call your local BRP dealership

M5348207

Unavailable

10

Lower Arm Ass'y

M5248204

Unavailable

11

CUSHION - Call your local BRP dealership

506149100

Unavailable

12

BUSHING - Call your local BRP dealership

605450024

Unavailable

13

Lower Link Plate

M5345384

Unavailable

14

BAR - Call your local BRP dealership | SUV 600

605348306

Unavailable

15

Painted Link Plate

M5345716

Unavailable

16

RH Plate Locking

605448861

Unavailable

16

LH Plate Locking

605448862

Unavailable

17

Screw Allen M12 X 55

M40371

Unavailable

18

NUT-STOP ELASTIC DIN.985 - Call your local BRP dealership

232521414

Unavailable

19

Screw M12 X 75

M40185

Unavailable

20

SCREW ALLEN M12 X 75 - Call your local BRP dealership

M40370

Unavailable

21

Screw M10 X 55

M40837

Unavailable

22

SCREW M10 X 65 - Call your local BRP dealership

M40254

Unavailable

23

WASHER - Call your local BRP dealership

605449801

Unavailable

24

NUT-FLANGE ELASTIC M10X1.5 (1=10pcs) - Call your local BRP dealership This part replaces M33074.

33074

Unavailable

25

Screw Allen M8 X 20

M40810

Unavailable

26

Loctite 243, 10 ml

293800060

$20.77

27

Lock Washer 8 mm

234181401

Unavailable

28

WASHER - Call your local BRP dealership

503146700

$4.42

29

WASHER - Call your local BRP dealership

M20007

Unavailable

30

Front Shock | Includes 30 and 32 to 33

M23165

Unavailable

31

White Spring

M25061

Unavailable

32

Spring Seat

230076

Unavailable

33

CAM - Call your local BRP dealership

M230078

Unavailable

34

Swing Arm Weld RH

605251768

Unavailable

34

SWING ARM WELD LH B - Call your local BRP dealership

605251767

Unavailable

35

Ski | Europe models

505073034

Unavailable

36

Bushing | Europe models

605348392

Unavailable

37

Black, Handle

505070963

Unavailable

38

Carbide Round Runner Kit | Europe models This part replaces 605352643.

860202822

Unavailable

39

Hex. Screw M8 X 50

207085044

Unavailable

40

Hex. Screw M8 X 90

207089044

$2.82

41

Flat Washer 8 mm

234081410

Unavailable

42

Hex. Elastic Stop Nut M8

232581414

Unavailable

43

SKI STOPPER - Call your local BRP dealership

605348458

Unavailable

44

Spacer

506133300

Unavailable

45

Allen Screw M10x140 8.8zn(1=10pcs) | Europe models This part replaces M40225.

40225

$12.52

46

Cover | Model-T3

28056

$5.52

47

SCREW-HEX. - Call your local BRP dealership

M40901

Unavailable

48

Washer

20037

$2.05

49

Ski Liner

605153964

Unavailable

50

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable

51

Grease, Super Lube

293550030

Unavailable
