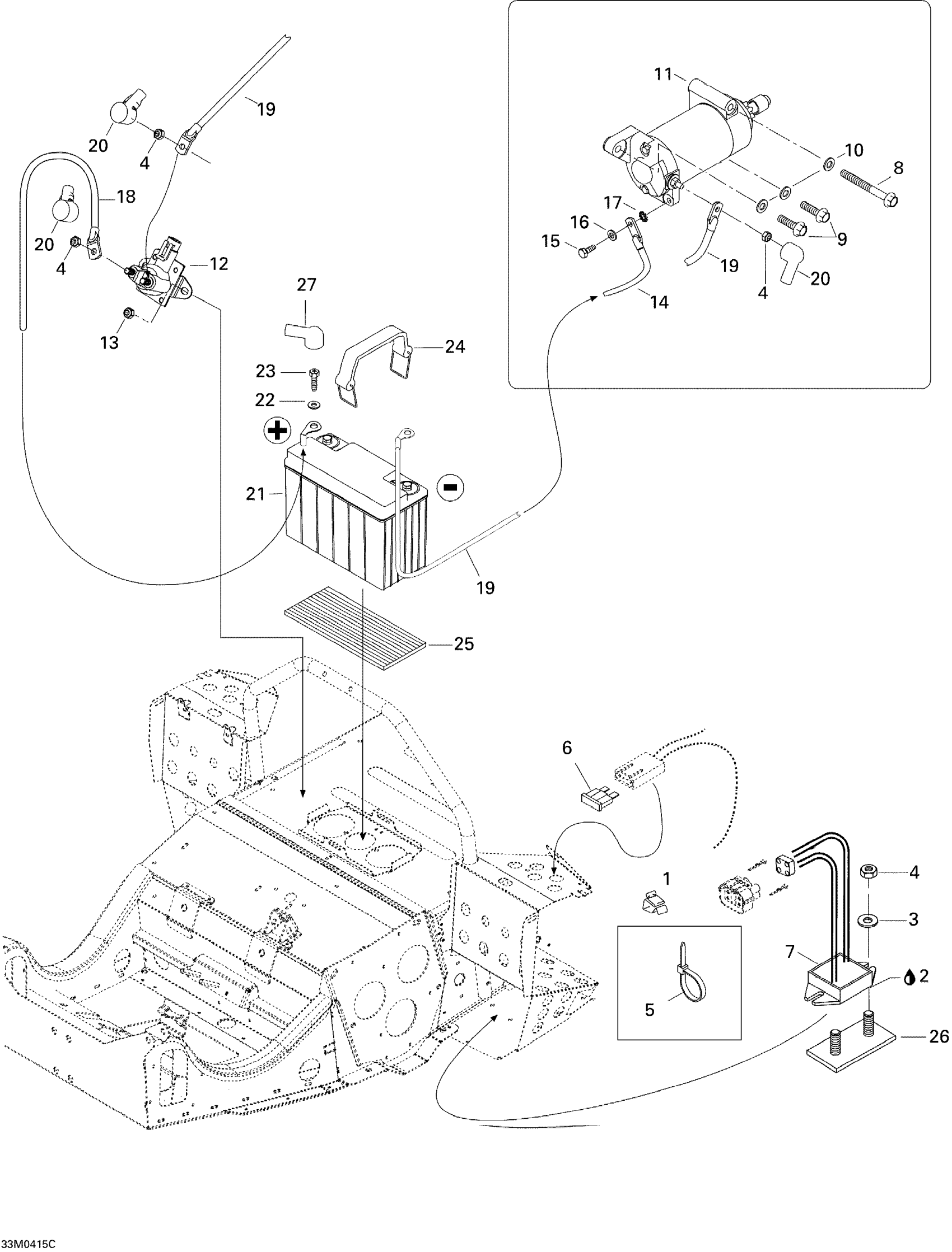

Ski-Doo Skandic SUV 600, 2004 Electrical System (600 Suv) Diagram

#

Description
Price

1

Clip

414227300

$1.45

2

Grease Tube Lmz, 400 G

413707500

Unavailable

3

Flat Washer 6 mm

234062410

$0.64

4

Elastic Stop Nut M6

232561414

Unavailable

5

Tie-Rap 180 mm

414115200

$0.09

6

Fuse, 20 Amperes

409003900

$3.22

7

Voltage Regulator Ass'y

515175939

Unavailable

8

Hex. Flange Screw M8 X 75, Scotch Grip

207587544

Unavailable

9

Hex. Flange Screw M8 X 30, Scotch Grip

207583044

Unavailable

10

Flat Washer With Teflon 8 mm

250200008

Unavailable

11

Electric Starter Ass'y

515176133

Unavailable

12

Starter Relay

278003012

Unavailable

13

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

14

Not Available As Spare Part - Friction Washer

Unavailable

15

Hex. Screw M6 X 16, Scotch Grip | Europe

207361644

Unavailable

16

Flat Washer 6 mm

234061410

Unavailable

17

SERRATED LOCK WASHER - Call your local BRP dealership

M20017

Unavailable

18

Protection Cap

570151000

$18.43

19

Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73

410301203

$126.07

20

FLAT WASHER - Call your local BRP dealership

391302100

Unavailable

21

Not Available As Spare Part - Friction Washer

Unavailable

22

Not Available As Spare Part - Friction Washer

Unavailable

23

Hex. Screw M6 X 16

207161644

Unavailable

24

Battery Strap

515176044

Unavailable

25

BATTERY CARPET - Call your local BRP dealership

605350237

Unavailable

26

SUPPORT - Call your local BRP dealership

M5448286

Unavailable

27

PROTECTION CAP - Call your local BRP dealership

278000020

Unavailable
