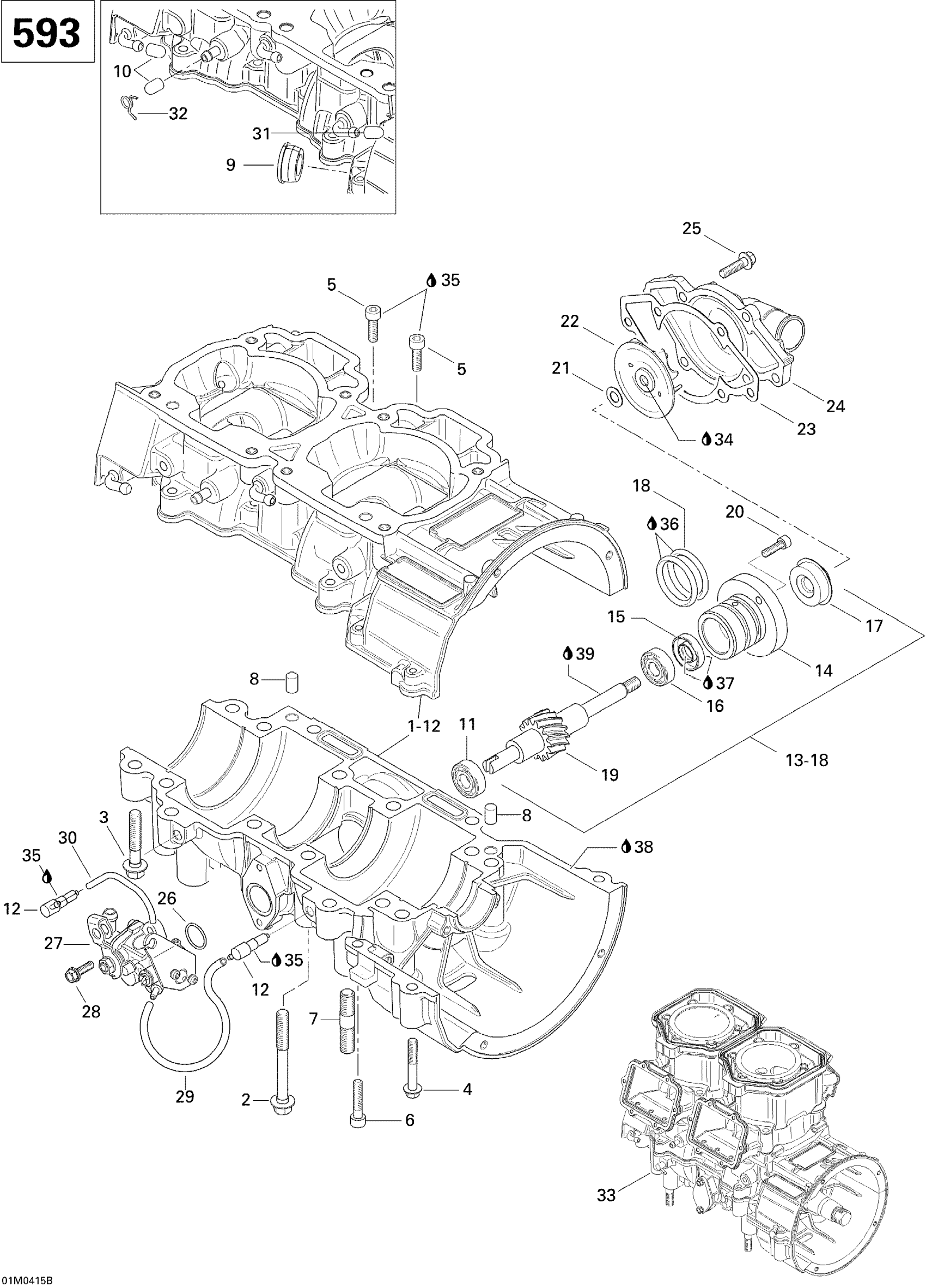

Ski-Doo Skandic SUV 600, 2004 Crankcase (593) Diagram

#

Description
Price

1

CRANKCASE ASS'Y - Call your local BRP dealership

420888769

Unavailable

2

Hex. Collar Screw M8 X 75

420640836

$1.94

3

Hex. Collar Screw M8 x 45

420640432

$1.94

4

Allen Screw M6 x 45 This part replaces 420640311.

420640312

$4.28

5

Allen Screw M6 x 22 This part replaces 420840401.

420840403

$1.25

6

Socket Head Screw M6 X 30

205063044

$1.42

7

STUD M10 - Call your local BRP dealership

420940704

Unavailable

8

Center Pin 8 X 12

420632010

$3.07

9

Cable Grommet

420860965

$13.58

10

Cap

420960770

$4.00

11

Ball Bearing

420232100

$15.57

12

Check Valve

420956511

$28.57

13

Water Pump/Oil Pump Ass'y | Includes 12 to 18

420837421

$342.28

14

Not Available As Spare Part - Friction Washer

Unavailable

15

Oil Seal

420230195

$12.65

16

Ball Bearing

420232100

$15.57

17

Rotary Seal

420650371

$35.72

18

O-Ring

420950890

$4.28

19

Not Available As Spare Part - Friction Washer

Unavailable

20

Allen Screw M5 x 16

420840514

$1.85

21

Thrust Washer

420227945

$3.86

22

Water Impeller

420222505

$14.92

23

Gasket This part replaces 420931810.

420931811

$13.26

24

Water Pump Housing

420922630

$59.20

25

Hex. Screw M6 X 25

420240034

$1.56

26

O-Ring

293300041

$7.05

27

Oil Pump Ass’Y, 600

420888260

$456.12

28

Taptite Screw M5 X 16

420941928

Unavailable

29

Oil Hose 1500Mm Long

219704404

$13.62

30

Oil Hose 1500Mm Long

219704404

$13.62

31

CAP - Call your local BRP dealership

420960777

Unavailable

32

CLAMP - Call your local BRP dealership

420938190

Unavailable

33

Short Block 593

420059308

Unavailable

34

Loctite 243, 10 ml

293800060

$20.77

35

Sealant Loctite 648

219703000

$35.72

36

Dow Corning 111, 150 g

413707000

$57.82

37

Petamo Grease, GHY133N, 400 g

420899271

$57.17

38

Sealing Compound Loctite 5366 310Ml

420297907

$54.57

39

OIL 2T CARB PREM. MINERAL QT/0,946L This part replaces 413802900.

779119

$10.74
