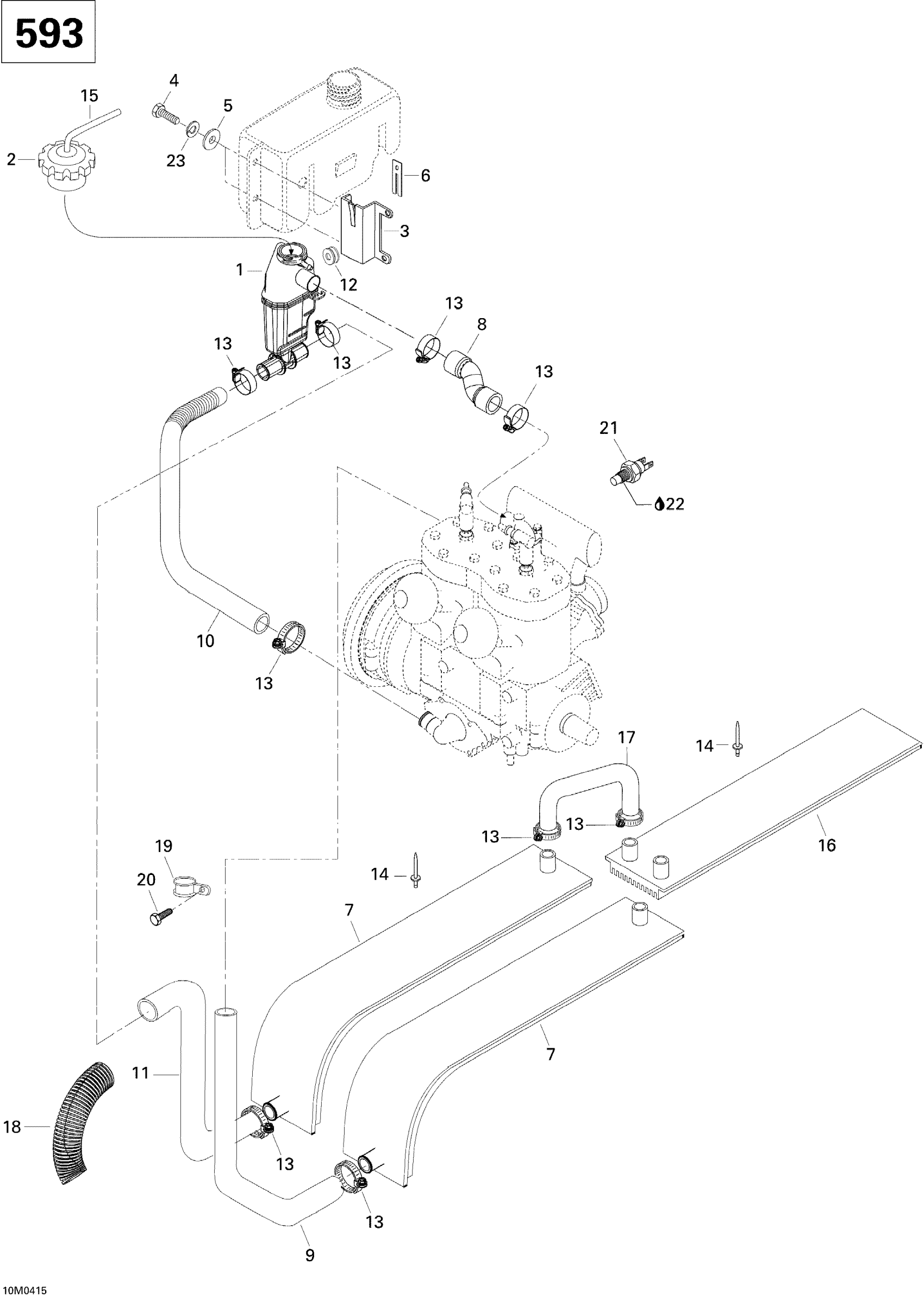

Ski-Doo Skandic SUV 600, 2004 Cooling System (593) Diagram
#
Description
Price
1
Tank Coolant | Grand Touring 500. This part replaces 509000133.
509000134
Unavailable
2
Pressure Cap
509000187
Unavailable
3
Tank Support
M5347031
Unavailable
4
Screw
M40322
Unavailable
6
LOCK - Call your local BRP dealership
M5447032
Unavailable
7
LH Radiator
M5146385
Unavailable
7
RH Radiator
M5146386
Unavailable
8
Hose
M5348268
Unavailable
9
Hose
M5346201
Unavailable
10
Hose
M5343357
Unavailable
11
Hose
605349198
Unavailable
12
Grommet This part replaces M28022.
28022
Unavailable
13
TRIDON GEAR CLAMP - Call your local BRP dealership
408800400
Unavailable
15
Polyurethane Hose 10000Mm Long
219704410
Unavailable
16
Radiator
M5345916
Unavailable
17
Tube
M5445970
Unavailable
18
Tube
M390003
Unavailable
19
CLIP - Call your local BRP dealership
M27011
Unavailable
20
SCREW-M6X12 - Call your local BRP dealership
M40327
Unavailable
21
Temperature Sensor | Grand Touring 500.
512047000
Unavailable
22
Was 293800018 Loctite 592, 50 ml | Package T
219704455
Unavailable
