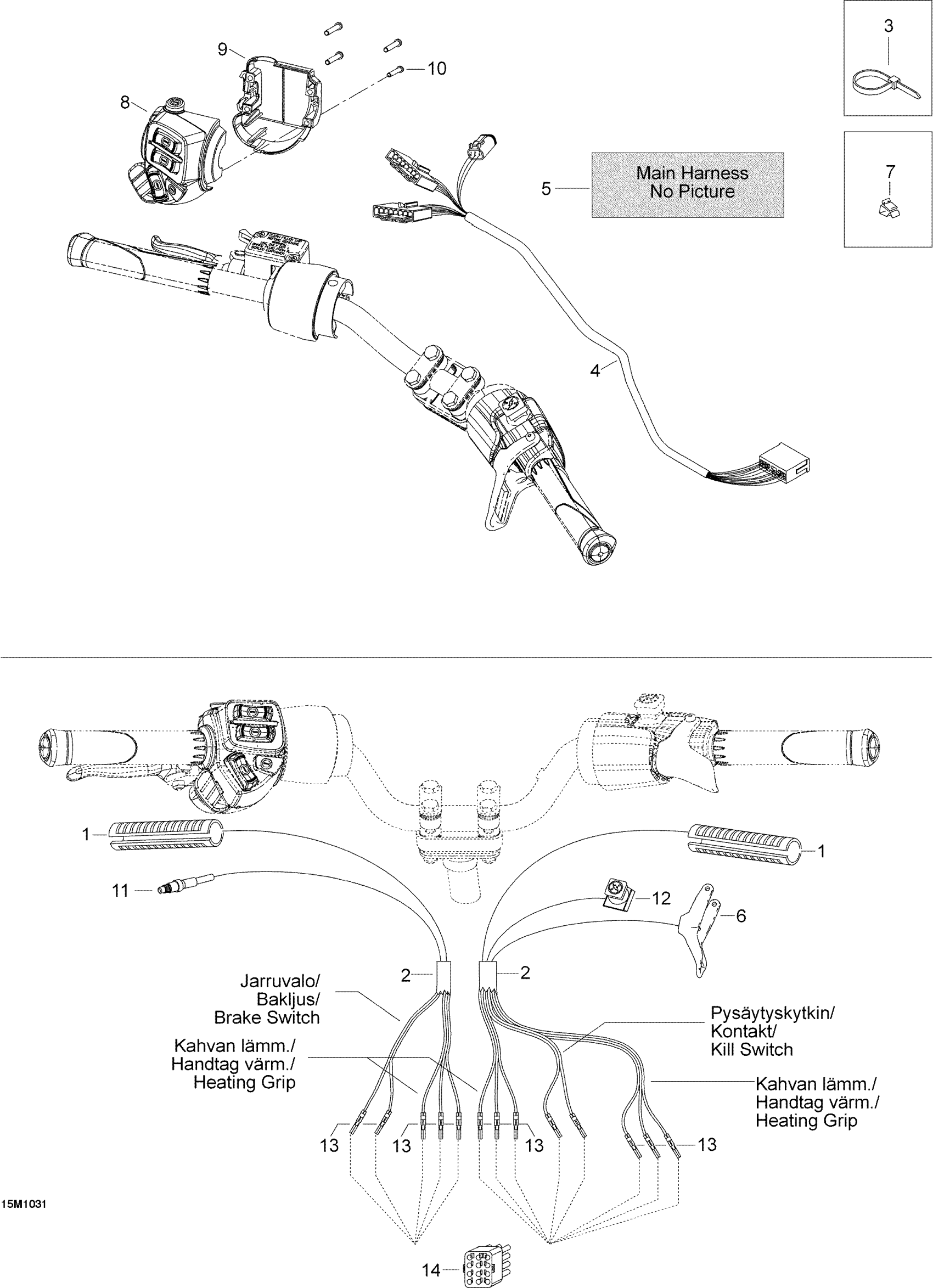

Ski-Doo Skandic SUV 550F, 2010 Steering Wiring Harness Diagram

#

Description

Price

1

HEATER ELEMENT - Call your local BRP dealership

515176139

$52.99

2

Housing

M39023

Unavailable

3

Tie Rap 290 Mm

M27100

$1.49

4

STEERING HARNESS - Call your local BRP dealership

605353266

$75.99

5

MAIN HARNESS - Call your local BRP dealership

605354843

Unavailable

6

Handle Ass'y

512060214

$117.66

7

Clip

414227300

$1.45

8

Switch Housing

515177028

$133.05

9

Switch Housing Plate

515175926

$17.66

10

Not Available As Spare Part - Friction Washer

Unavailable

11

Microswitch

507032366

$104.58

12

Emergency Stop Switch | Includes 91 to 91a

515177362

$84.58

13

CONNECTOR - Call your local BRP dealership

605642628

$6.89

14

Male Connector Housing

M42617

Unavailable
