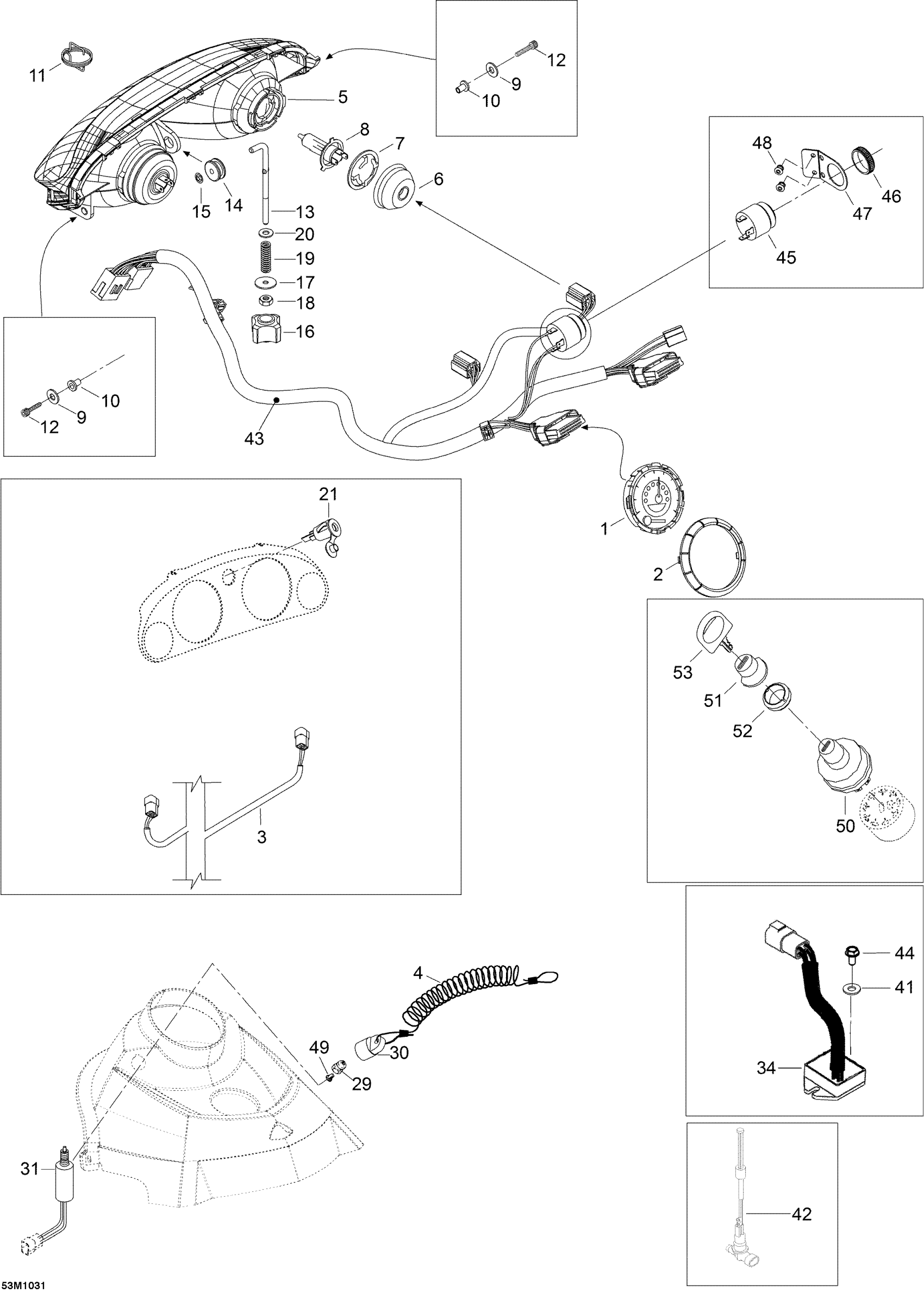

Ski-Doo Skandic SUV 550F, 2010 Electrical Accessories Diagram

#

Description
Price

1

SPEEDOMETER - Call your local BRP dealership | Includes 1 to 1a

515176476

Unavailable

2

Gauge Ring This part replaces 515176242.

515179005

$12.69

3

STEERING HARNESS - Call your local BRP dealership

605353266

$75.99

4

Cap Ass'y

515178283

$37.66

5

Halogen Headlamp Ass'y | Includes 4 to 7

515176311

$288.43

6

COVER - Call your local BRP dealership

515175911

Unavailable

7

BULB HOLDER - Call your local BRP dealership

515176385

$9.57

8

Halogen Bulb, 60/55 W, 12 V ( H4 )

515176274

$23.05

9

Washer 5,3 mm

20008

$0.72

10

NUT M5 - Call your local BRP dealership

250100018

$6.45

11

SPRING - Call your local BRP dealership

M5447238

Unavailable

12

Screw M5X35

M40235

Unavailable

13

ADJUSTER ROD - Call your local BRP dealership

605450023

$24.58

14

Grommet - Call your local BRP dealership

415100800

$3.97

15

Push Nut

732610072

$1.72

16

Handle - Call your local BRP dealership

515175548

$5.57

17

WASHER - Call your local BRP dealership

M20038

$1.37

18

Elastic Stop Nut M6

232561414

$1.55

19

SPRING - Call your local BRP dealership

415100600

$3.17

20

Flat Washer 6 mm

234061410

$1.04

21

DC Outlet

710001248

$31.17

29

Switch Nut

515145900

$10.83

30

SLEEVE - Call your local BRP dealership

605454413

$22.28

31

Brake Switch

515175653

$15.57

34

Voltage Regulator | Includes 34 to 40

515176189

$210.74

41

Flat Washer 6 mm

234062410

$0.64

42

OIL SENSOR - Call your local BRP dealership

605452095

Unavailable

43

WIRING HARNESS ASSY - Call your local BRP dealership

605355301

Unavailable

44

Screw

M40322

$1.62

45

Back-Up Alarm

414792102

$143.05

46

PLASTIC NUT - Call your local BRP dealership

414805101

$3.57

47

Holder

M5447941

$13.71

48

Rivet

36005

$2.02

49

Plunger Cap

570151100

$10.14

50

IGNITION SWITCH - Call your local BRP dealership

515176548

Unavailable

51

Switch Boot

570013700

$10.82

52

FACE NUT - Call your local BRP dealership

410112100

$14.29

53

Blank Key

415129350

Unavailable

54

MAIN HARNESS - Call your local BRP dealership

605354843

Unavailable
