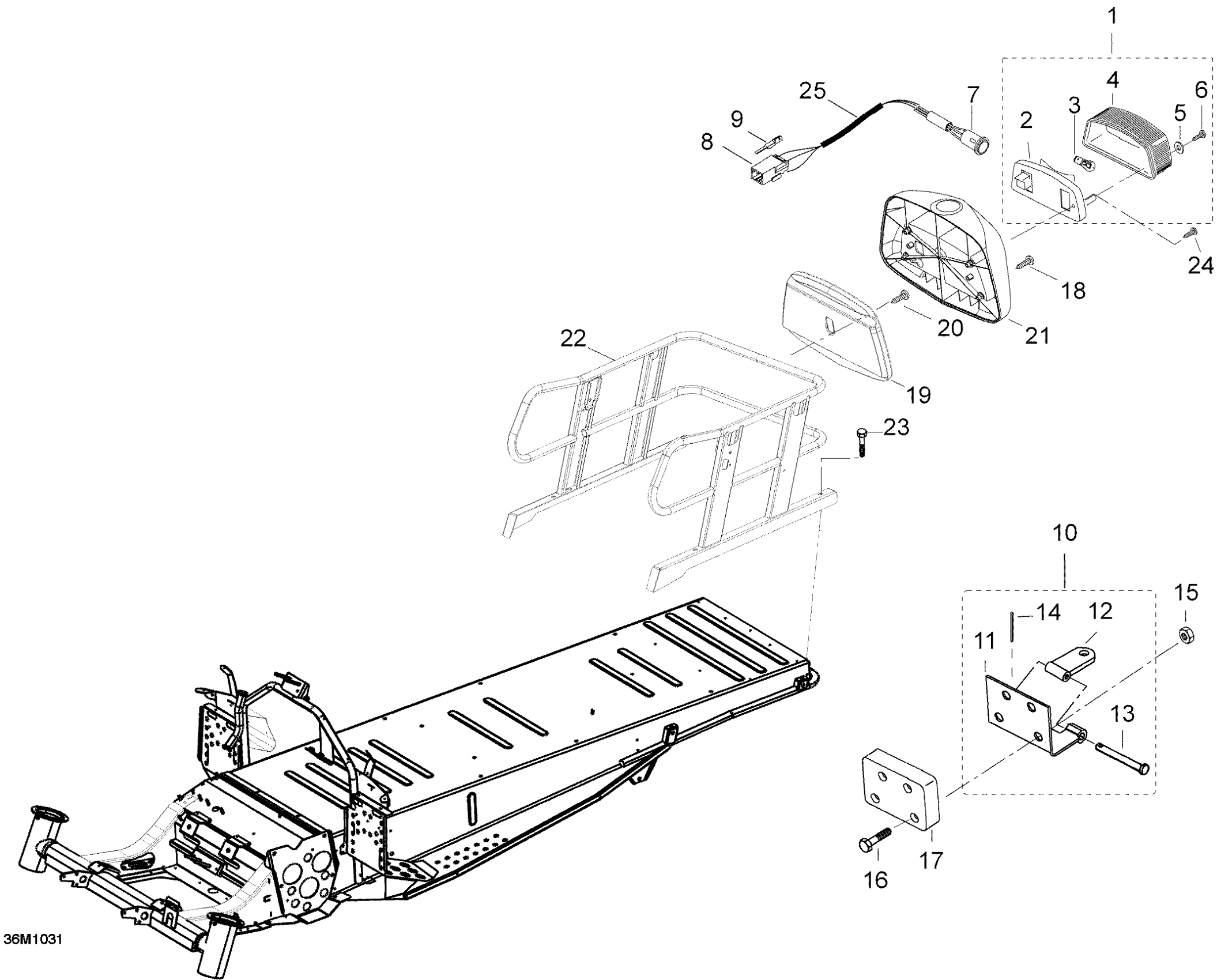

Ski-Doo Skandic SUV 550F, 2010 Luggage Rack Diagram

#

Description
Price

1

Not Available As Spare Part - Friction Washer

Unavailable

2

LAMP HOUSING - Call your local BRP dealership

515175397

$44.99

25

Taillight Harness

605354685

Unavailable

3

Bulb

520000758

$7.49

4

Lens

414513700

Unavailable

5

Washer - Call your local BRP dealership

414516400

Unavailable

6

Phillips Tapping Screw M3.9 X 25

209632540

$0.98

7

Adapter

515175852

Unavailable

8

Female Terminal Housing, 1 Circuit

409010400

$7.48

9

FEMALE TERMINAL - Call your local BRP dealership

409010600

$5.35

10

Not Available As Spare Part - Friction Washer

Unavailable

11

Fitting Plate | Model- North America This part replaces M5344151.

5344151

$77.66

12

TONGUE WELD - Call your local BRP dealership | Model- North America This part replaces M548745.

548745

Unavailable

13

PIN-RETAINER - Call your local BRP dealership | North America

560309200

$5.60

14

Cotter Pin

41031

$6.26

15

Hex. Elastic Stop Nut M8

232581414

$0.47

16

Hex. Screw M8 X 50

207085044

$1.25

17

SPACER - Call your local BRP dealership

605351510

Unavailable

18

Screw 4.8 X 25

M40206

Unavailable

19

BASE - Call your local BRP dealership

605251963

Unavailable

20

Screw

M40322

$1.62

21

MOLD TAIL LAMP - Call your local BRP dealership

605251392

Unavailable

22

LUGGAGE RACK - Call your local BRP dealership

605156016

$413.82

23

Screw

M40316

$8.51

24

Screw 4.8 X 45

M40207

$5.40
