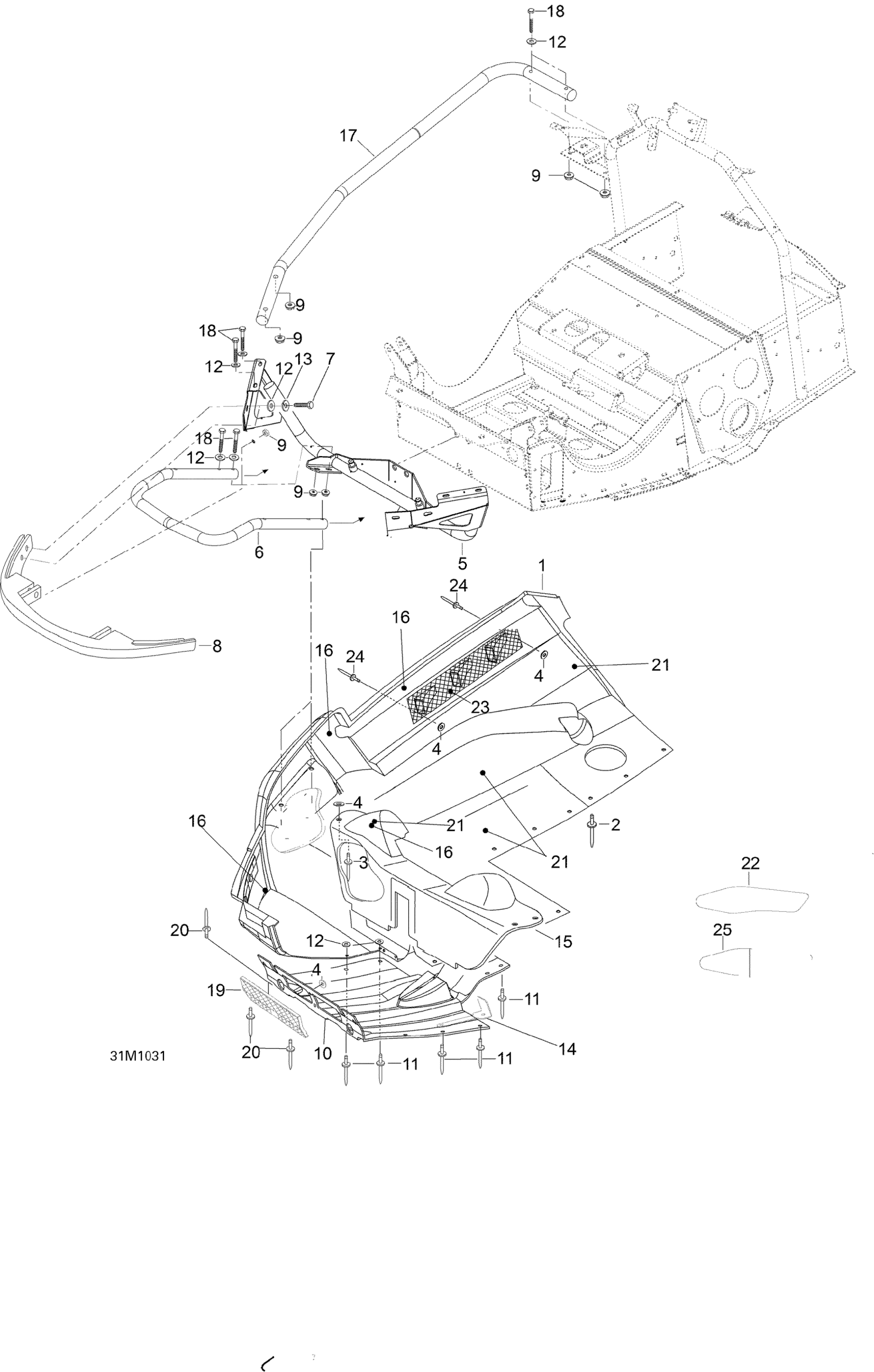

Ski-Doo Skandic SUV 550F, 2010 Bottom Pan Diagram

#

Description
Price

1

BOTTOM PAN ASS'Y, RH - Call your local BRP dealership

605155753

Unavailable

1

BOTTOM PAN ASS'Y, LH - Call your local BRP dealership

605155679

Unavailable

2

Black Rivet

36037

$1.48

3

Rivet

36108

$1.85

4

Washer 5,3 mm

20008

$0.72

5

WELDED FRONT BUMPER SUPPORT - Call your local BRP dealership

605255398

Unavailable

6

BUMPER FRONT - Call your local BRP dealership

605351509

Unavailable

7

Hex. Screw M6 X 16

207161644

$0.61

8

Bumper, Black

502006719

$98.43

9

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

10

Central Front Pottom Pan

605154930

Unavailable

11

RIVET - Call your local BRP dealership

M36072

Unavailable

12

Flat Washer 6 mm

234062410

$0.64

13

Lock Washer M6, Black

234161471

$0.52

14

BOTTOM PAN RIVETING PLATE - Call your local BRP dealership

605355617

$12.77

15

SHOCK COVER - Call your local BRP dealership

605355606

$143.82

16

REFLECTIVE SHEET (1M X 1M) - Call your local BRP dealership This part replaces M44001.

44001

Unavailable

17

SIDE BUMPER - Call your local BRP dealership

605255395

$134.99

18

Hex. Screw M6 X 40

207064044

$1.48

19

FRONT GRILL - Call your local BRP dealership

605255513

Unavailable

20

Rivet

M36071

Unavailable

21

ISOLATION SHEET - Call your local BRP dealership

619690002

Unavailable

22

Bottom Isolation LH

605355681

Unavailable

23

RH SIDE GRILL - Call your local BRP dealership

605354968

Unavailable

23

LH SIDE GRILL - Call your local BRP dealership

605354969

$21.51

24

Rivet This part replaces M36009.

36009

$1.06

25

Bottom Isolation RH

605355755

Unavailable
