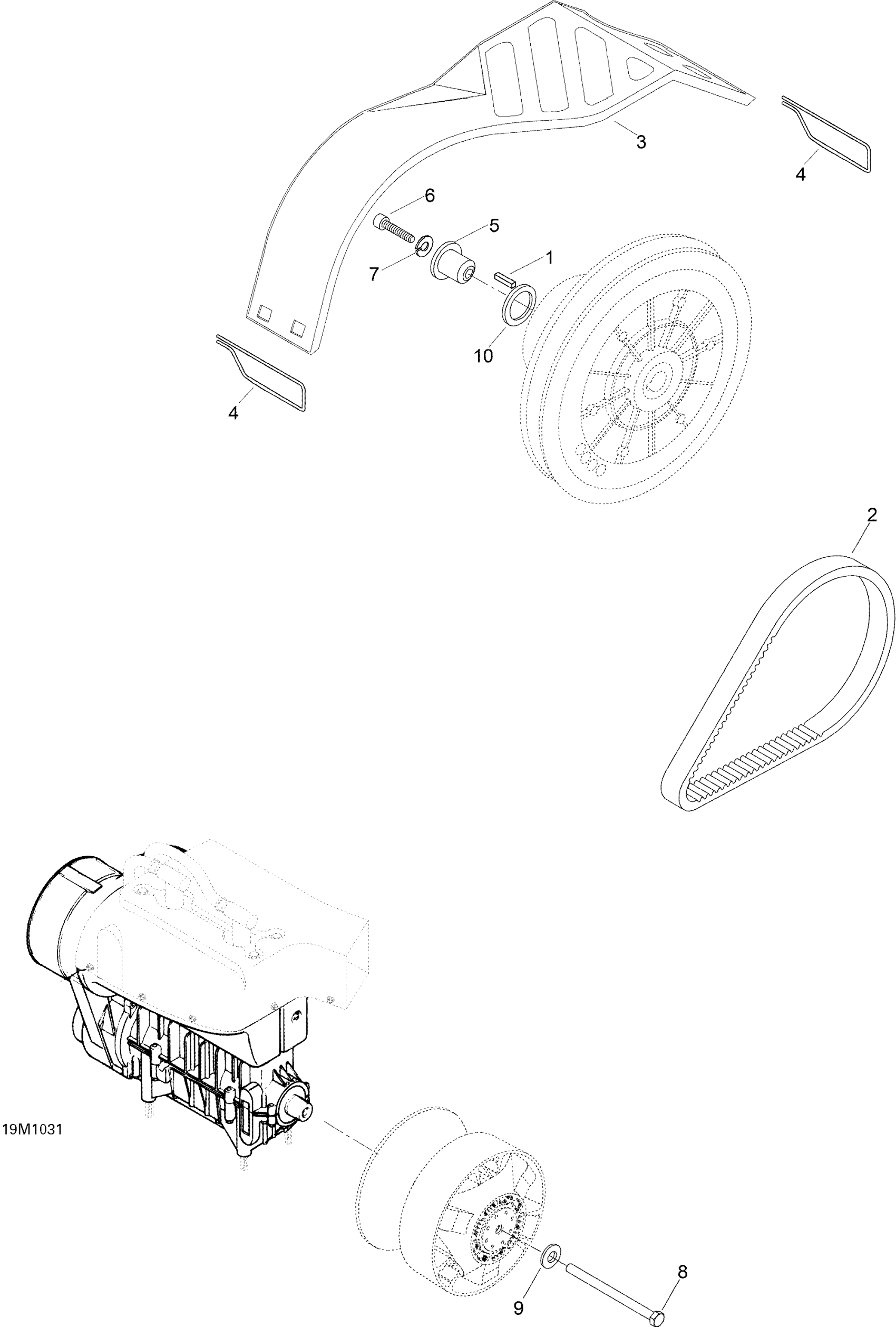

Ski-Doo Skandic SUV 550F, 2010 Pulley System Diagram

#

Description

Price

1

KEY - Call your local BRP dealership This part replaces M418763.

619690074

$6.52

2

Drive Belt

605348425

$154.58

3

BELT GUARD - Call your local BRP dealership

M5142660

Unavailable

4

Pin This part replaces M5442726.

5442726

$7.31

5

Sleeve This part replaces M5443201.

5443201

Unavailable

6

Socket Head Screw M8 X 45

M40286

$5.40

7

Lock Washer 8 mm

234181401

$0.89

8

BOLT - Call your local BRP dealership

417113800

$10.17

9

Conical Spring Washer

M20090

Unavailable

10

Shim

M3125351

Unavailable
