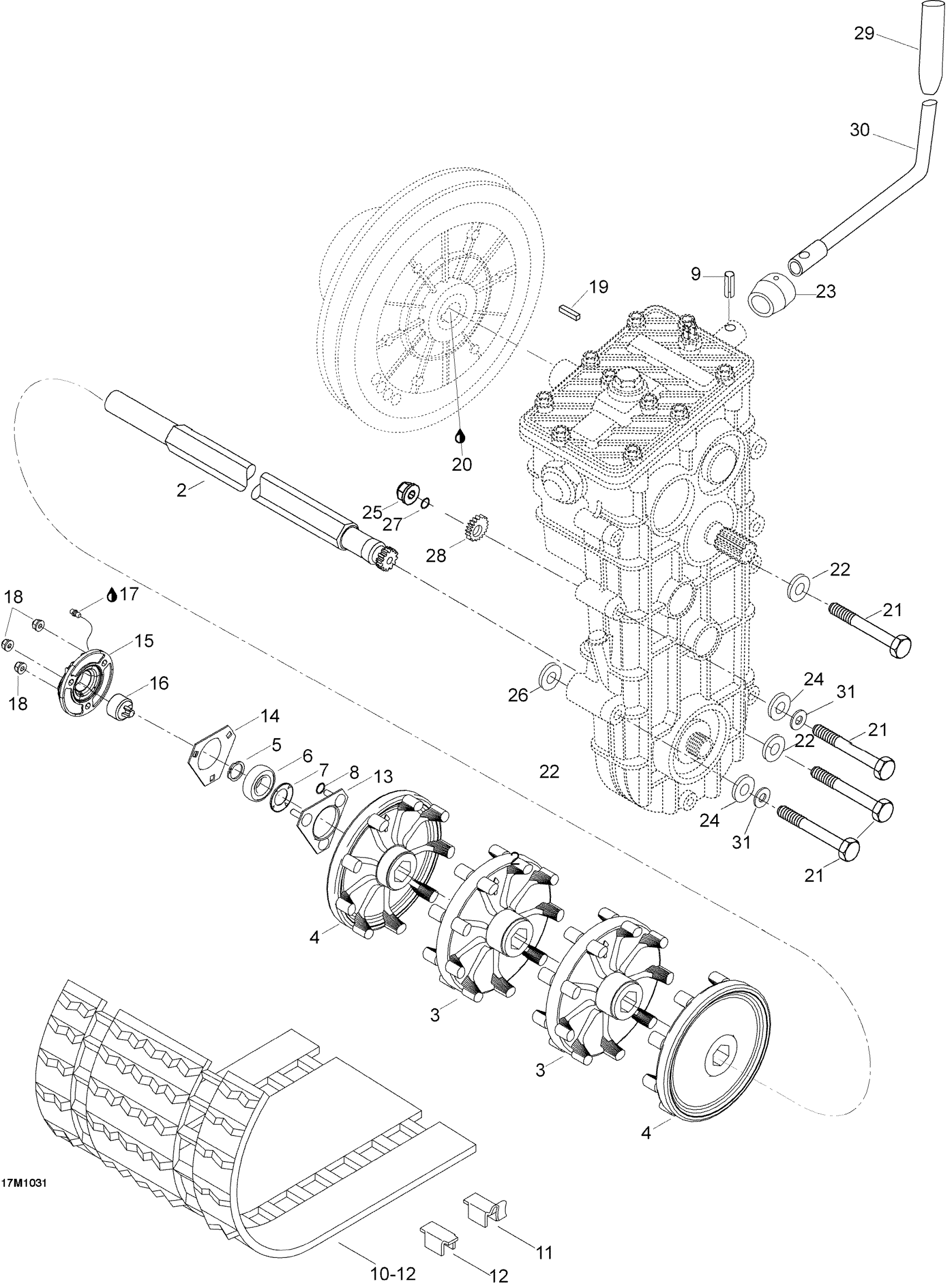

Ski-Doo Skandic SUV 550F, 2010 Drive System Diagram

#

Description
Price

2

DRIVE AXLE - Call your local BRP dealership

605253104

$392.28

3

SPROCKET - Call your local BRP dealership

414931800

$63.82

4

HALF SPROCKET - Call your local BRP dealership

415067400

$43.99

5

CIRCLIP - Call your local BRP dealership

371910200

Unavailable

6

Ball Bearing

293350060

$38.49

7

BEARING PROTECTOR - Call your local BRP dealership

501017400

Unavailable

8

O-Ring

414484400

$7.31

9

Pin Spring

M41008

Unavailable

10

Track ass'y | Includes 10 to 12 This part replaces M13070.

13070

$1,249.99

11

CLEAT-GUIDE - Call your local BRP dealership

M5318323

Unavailable

12

CLEAT - Call your local BRP dealership

M5318322

Unavailable

13

BEARING HOUSING - Call your local BRP dealership

504151860

$9.71

14

FLANGE - Call your local BRP dealership

501025000

Unavailable

15

Flange, Speedo

504152173

Unavailable

16

MAGNETIC ADAPTOR - Call your local BRP dealership

504152040

Unavailable

17

SUSPENSION GREASE, 10 X 400 G - Call your local BRP dealership

293550033

Unavailable

18

Hex. Flange Elastic Nut M8

233281414

$1.14

19

KEY - Call your local BRP dealership This part replaces M418763.

619690074

$6.52

20

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

21

Screw M8 X 80

M40012

$3.32

22

Flat Washer 8 mm

234081410

$0.69

23

SLEEVE - Call your local BRP dealership

M5446699

Unavailable

24

Flat Washer 8 mm

234082410

$1.11

25

Hex. Flange Elastic Nut M8

233281414

$1.14

26

M8 Washer This part replaces M20077.

20077

$1.48

27

O-RING - Call your local BRP dealership

506151140

$6.51

28

TOOLS - Call your local BRP dealership

605454017

$4.86

29

Shift button This part replaces M28247.

28247

$29.97

30

SHIFT HANDLE - Call your local BRP dealership

605350153

Unavailable

31

Lock Washer 8 mm

234181401

$0.89
