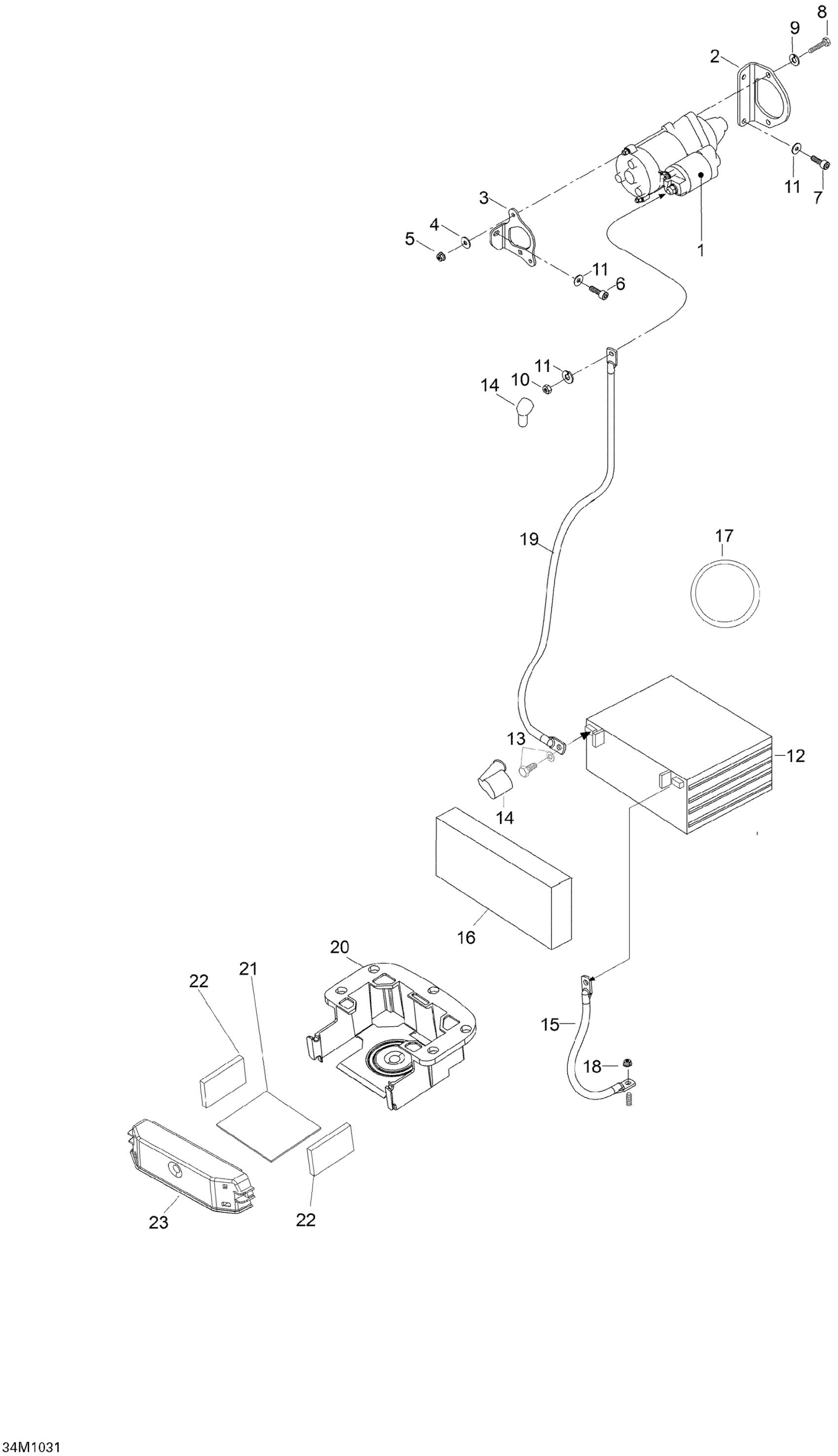

Ski-Doo Skandic SUV 550F, 2010 Electric Starter Diagram

#

Description
Price

1

ELECTRIC STARTER ASSY - Call your local BRP dealership

410212400

Unavailable

2

STARTER BRACKET, P.T.O. - Call your local BRP dealership

420951415

$70.74

3

STARTER BRACKET, M.A.G. - Call your local BRP dealership

420951426

$25.35

4

Washer 5,3 mm

20008

$0.72

5

Elastic Stop Nut M5

232551414

$0.72

6

Hex. Screw M8 X 16

M40066

$3.08

7

Socket Head Screw M8 X 20

205082044

$1.09

8

Hex. Screw M8 X 20

207182044

$0.61

9

Lock Washer 8 mm

234181401

$0.89

10

NUT - Call your local BRP dealership

M33003

Unavailable

11

Lock Washer 8 mm

234181401

$0.89

12

Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73

410301203

$126.07

13

Battery Bolt Kit

250000282

$2.95

14

Protection Cap

570151000

$18.43

15

GROUND WIRE - Call your local BRP dealership

515175483

$15.17

16

COVER - Call your local BRP dealership

605352572

Unavailable

17

O'RING 130 X6,0 - Call your local BRP dealership

605676001

$13.57

18

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

19

Not Available As Spare Part - Friction Washer

Unavailable

20

Battery Holder - Call your local BRP dealership

605255588

Unavailable

21

FOAM - Call your local BRP dealership

605355846

Unavailable

22

FOAM - Call your local BRP dealership

605355847

$19.20

23

BATTERY COVER - Call your local BRP dealership

605255586

$22.28
