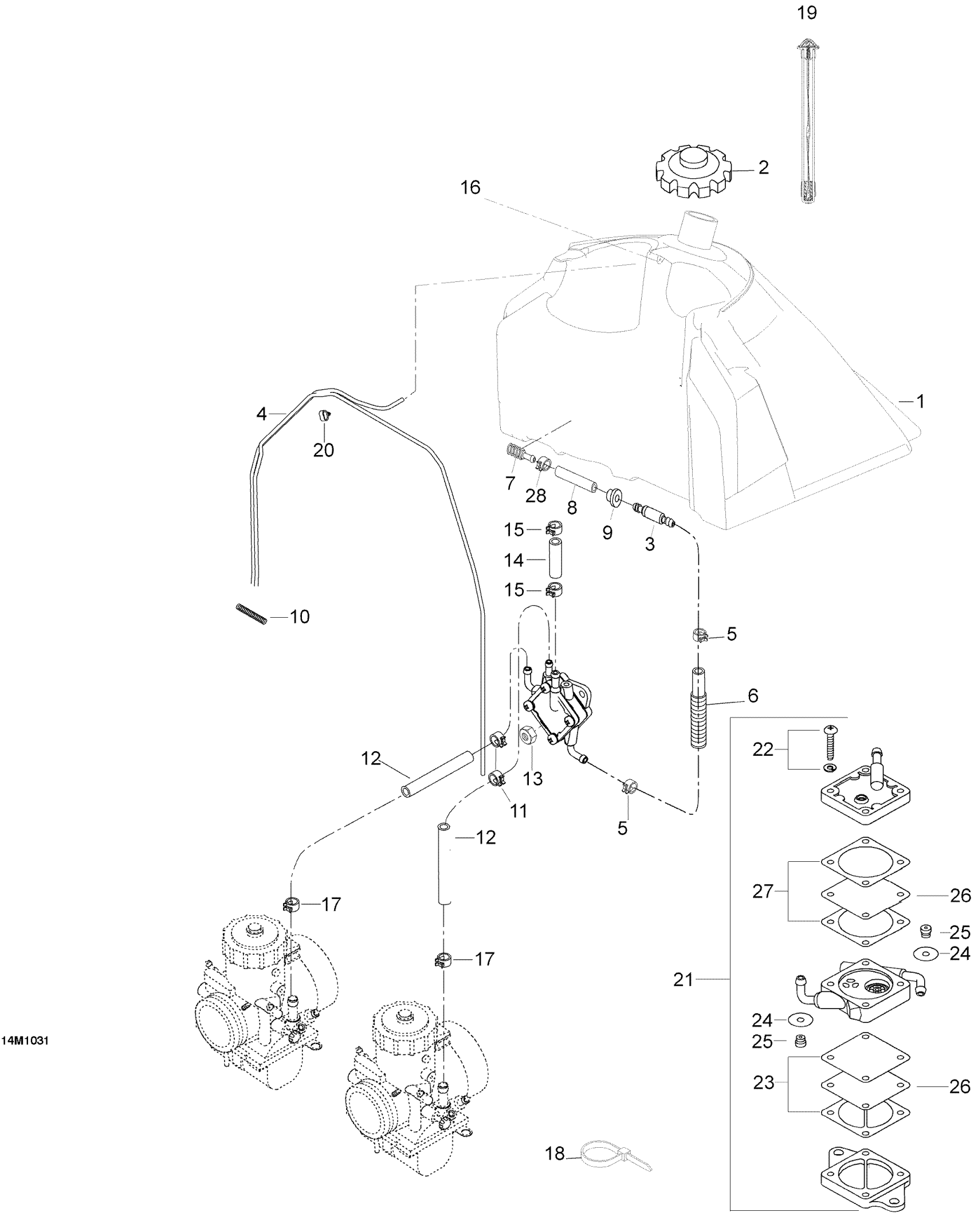

Ski-Doo Skandic SUV 550F, 2010 Fuel System Diagram

#

Description
Price

1

FUEL TANK - Call your local BRP dealership

605154804

Unavailable

2

Fuel Tank Cap

513033025

$22.36

3

Male Connector

414872700

Unavailable

4

HOSE - Call your local BRP dealership

M39035

Unavailable

5

TUBE CLAMP - Call your local BRP dealership

513032923

Unavailable

6

Was M27127 Tubing

219704355

Unavailable

7

Fuel Filter Strainer | CHALLENGER 1800 5600/5601.

414872100

$11.06

8

Polyurethane Hose 1000Mm Long

219704391

Unavailable

9

Grommet | Europe

707800347

$8.70

10

SPRING - Call your local BRP dealership

M25003

Unavailable

11

Universal Spring Clamp

513033029

$4.96

12

Polyurethane Hose 10000Mm Long

219704410

$52.96

13

Elastic Stop Nut M6

232561414

$1.78

14

Hose 1/4, 350 mm

605355647

Unavailable

15

UNIVERSAL SPRING CLAMP - Call your local BRP dealership

513032979

Unavailable

16

NIPPLE - Call your local BRP dealership

404127600

Unavailable

17

Universal Spring Clamp

513033029

$4.96

18

Tie-Rap 180 mm

414115200

$0.10

19

FUEL GAUGE - Call your local BRP dealership

605351982

Unavailable

20

Grommet | Europe

707800347

$8.70

21

Fuel Pump

M19113

Unavailable

22

Not Available As Spare Parts

XXX

Unavailable

23

Not Available As Spare Part - Friction Washer

Unavailable

24

Not Available As Spare Part - Friction Washer

Unavailable

25

Not Available As Spare Part - Friction Washer

Unavailable

26

Not Available As Spare Part - Friction Washer

Unavailable

27

Not Available As Spare Part - Friction Washer

Unavailable

28

CLAMP - Call your local BRP dealership

605627009

Unavailable
