Description

Price

1

Fan Housing This part replaces 420912203.

420912230

$461.51

2

Lock Ring

420945880

$3.61

3

Shim

420244585

$1.83

4

Ball Bearing

420832161

$34.58

5

Fan Axle This part replaces 420937940.

420937941

$13.58

6

Woodruff Key

420246015

$3.11

7

Spacer Bushing

420827650

$11.29

8

Flange

420980496

$13.58

9

Shim 0.5 mm

420827080

$2.06

9

Shim 0.2 mm

420827082

$3.11

10

Protection Washer

420980523

$11.52

11

Fan

420866294

$93.82

12

Lock Washer

420945756

$3.11

13

Nut M16 This part replaces 420942285.

420942289

$9.31

14

Fan Cover

420975900

$13.58

15

Screw

420841971

$2.91

16

V-Belt

414630800

$37.66

17

WASHER-LOCK DIN.128 - Call your local BRP dealership

420945751

Unavailable

18

Torx Flange Screw M6 X 30

420440647

$1.97

19

Lower Cowling | 550 F.

420811392

$183.05

20

LOWER COWLING - Call your local BRP dealership

420812600

$59.97

21

Torx Screw M6 X 16

420640324

$2.06

22

SPRING NUT U #10-24 - Call your local BRP dealership

417300005

$3.32

23

CYLINDER COWL - Call your local BRP dealership

420812596

Unavailable

24

Cup Washer

420827817

$13.58

25

Rubber Washer

420960865

$2.06

26

Washer This part replaces 420227935.

420227936

$3.29

27

Washer-Lock Din.128

420945832

$1.09

28

Torx Flange Screw M8 X 16

420440852

$4.00

29

Hex Head Tapping Screw + Washer 4.8X16 This part replaces 420926185.

420841492

$1.83

30

Tapping Screw M4.8 X 16

417300006

$0.71

31

Clamp

420851250

$9.31

32

Taptite Screw M5 X 16

420941928

$0.39

33

Loctite 243, 10 ml

293800060

$20.77

34

Self Tapping Screw #8 X 5/8

250000202

$1.25

35

Washer | DS 650 X

391301600

$0.48

36

COOLING CHANNEL ASS'Y - Call your local BRP dealership

605155173

Unavailable

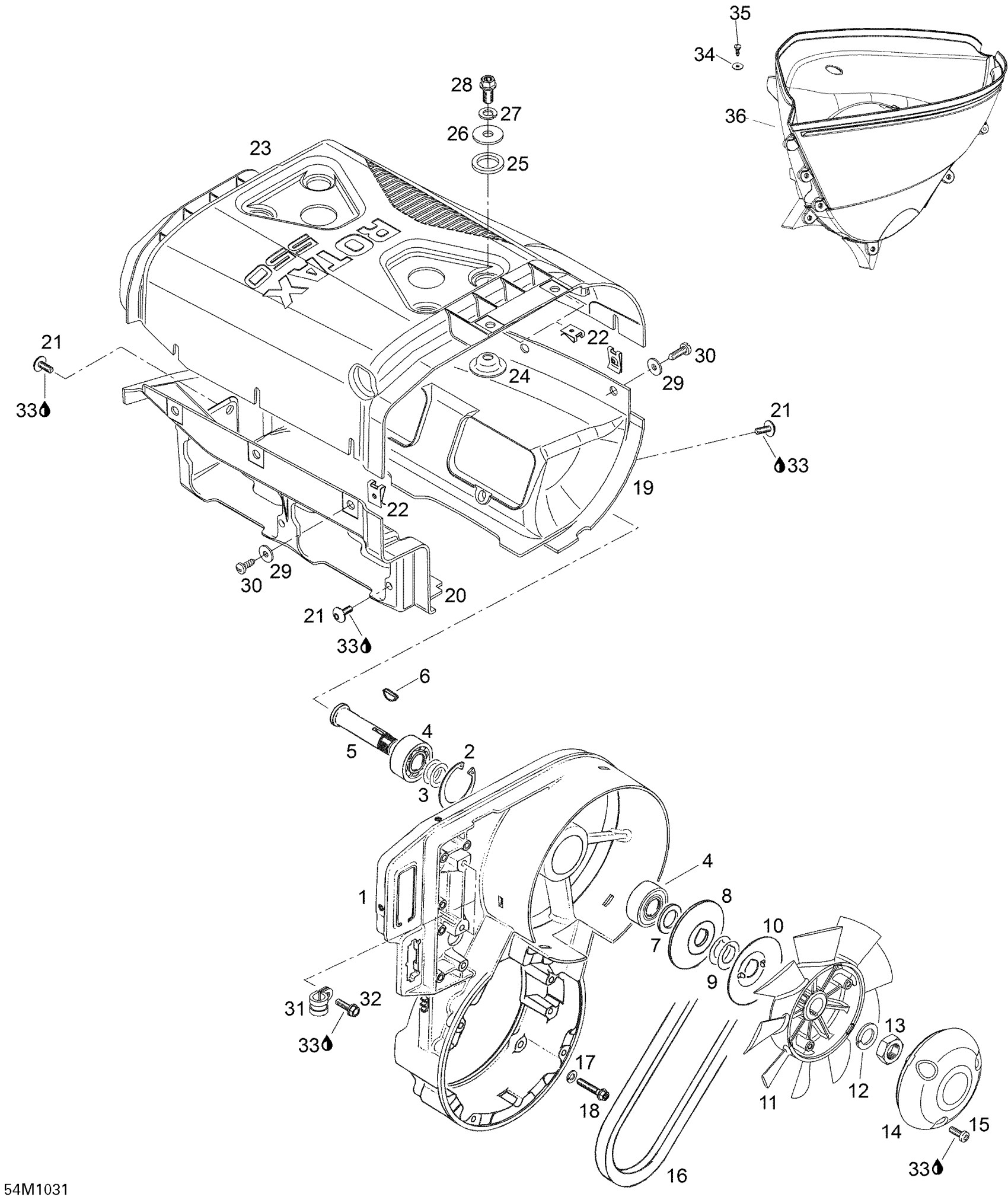

Ski-Doo Skandic SUV 550F, 2010 Fan Diagram
