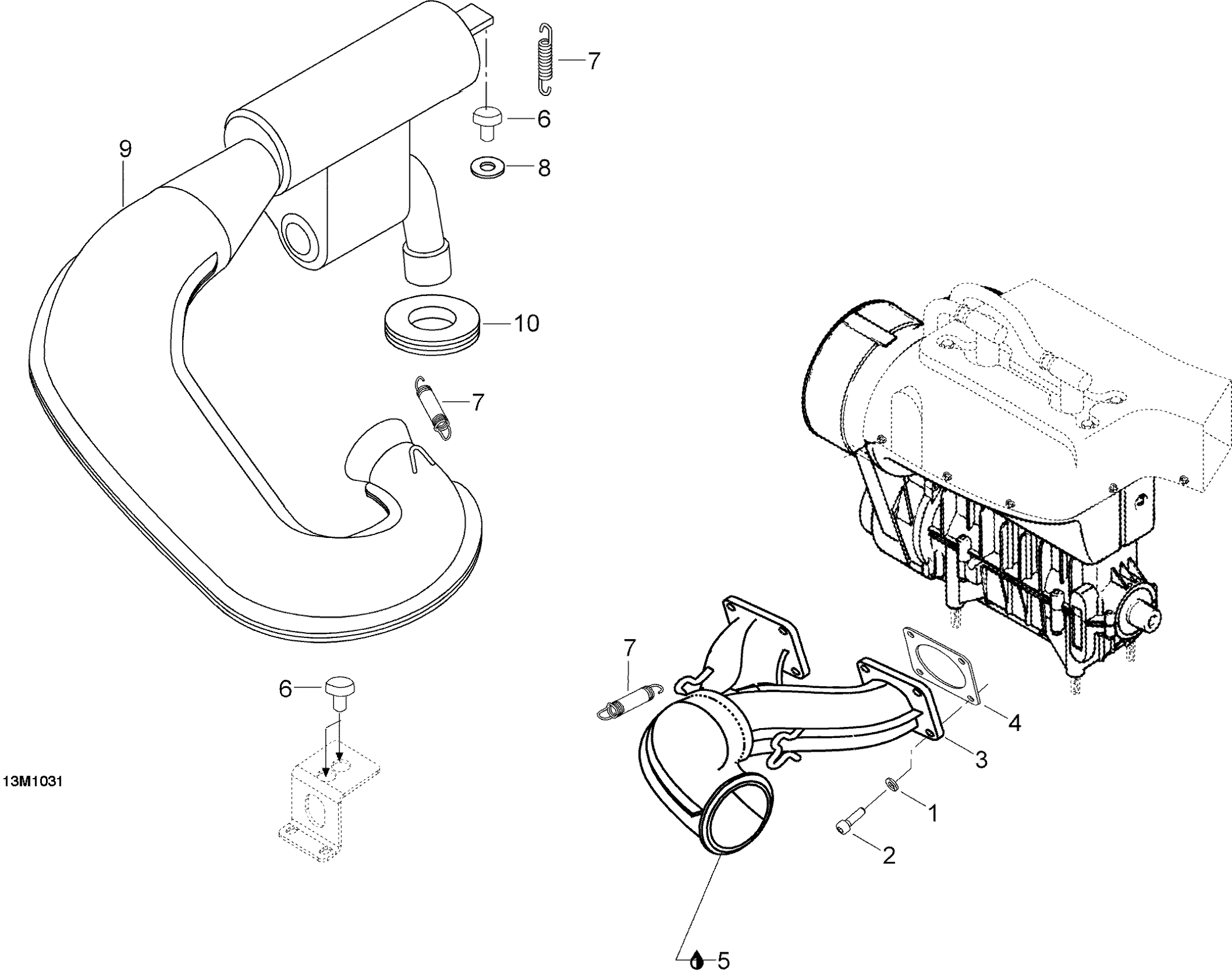

Ski-Doo Skandic SUV 550F, 2010 Exhaust System Diagram

#

Description

Price

1

Lock Washer 8 mm

234181401

$0.89

2

Socket Head Screw M8 X 30

M40135

$0.92

3

EXHAUST MANIFOLD - Call your local BRP dealership

420973512

Unavailable

4

Gasket 1.0 mm

420831849

$7.92

5

Sealant, Loctite, 80 ml | DS 650

293800090

$20.77

6

Rubber Bumper

514053654

$49.20

7

Spring This part replaces 420938795.

420938796

$8.34

8

Washer

M20087

Unavailable

9

PIPE_TUNED ASSY - Call your local BRP dealership

605155510

$758.43

10

EXHAUST GROMMET - Call your local BRP dealership

570039000

$23.05
