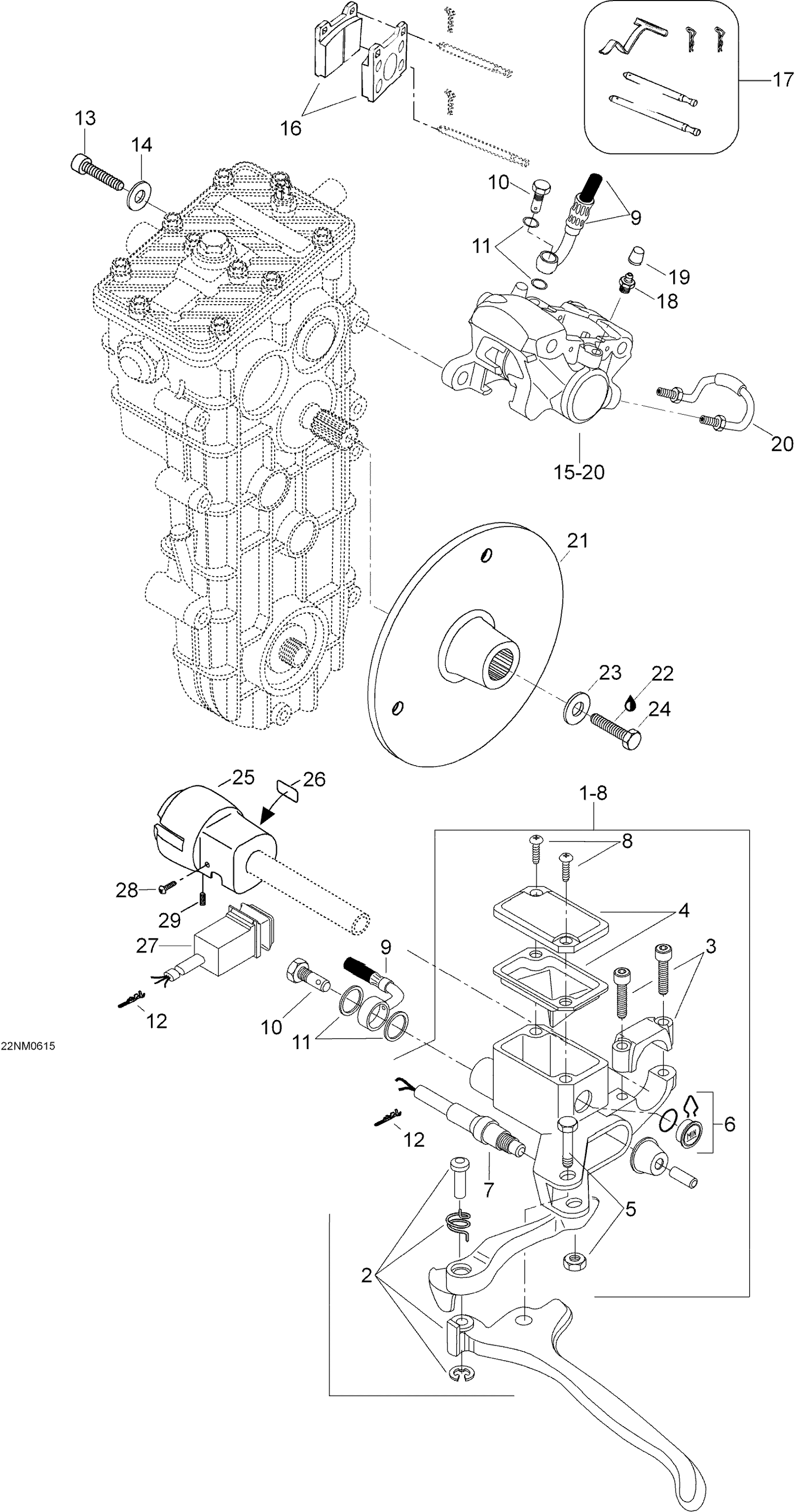

Ski-Doo Skandic SUV 550F, 2006 Brake Diagram

#

Description
Price

1

Master Cylinder | Includes 1 to 8

605352693

Unavailable

2

LEVER - Call your local BRP dealership

415129216

$51.51

3

Clamp And Screw Kit

507032477

$23.05

4

Cap

415029900

$41.51

5

Pin Ass'y

415030000

$17.66

6

WINDOW - Call your local BRP dealership

414990600

Unavailable

7

Microswitch

507032366

$104.58

8

SCREW M4 X 12 - Call your local BRP dealership

216141260

$1.17

9

HOSE - Call your local BRP dealership

507032219

Unavailable

10

Banjo Bolt

414920500

$8.49

11

Washer

414920600

$1.52

12

CONNECTOR - Call your local BRP dealership

605642628

$6.89

13

SOCKET HEAD SCREW M10 X 65 - Call your local BRP dealership

M40277

$5.34

14

Lock Washer D10

20068

$1.97

15

Caliper | Includes 15 to 20

507032412

Unavailable

16

Brake Pad Kit

415084600

$76.12

17

KIT, PINS, RETAINERS, SPRING - Call your local BRP dealership

414990700

Unavailable

18

BLEEDER SCREW - Call your local BRP dealership

414989800

Unavailable

19

BOOT-QTS 20 - Call your local BRP dealership

414989700

Unavailable

20

RIGID TUBING - Call your local BRP dealership

414989900

Unavailable

21

Brake Disc

605353250

$198.43

22

Loctite 243, 10 ml

293800060

$20.77

23

Washer

M546336

Unavailable

24

HEX. SCREW M8 X 20 - Call your local BRP dealership This part replaces M40336.

40336

Unavailable

25

BRAKE HOUSING - Call your local BRP dealership

515175696

$24.58

26

Switch Decal

415025500

Unavailable

27

LIGHT SWITCH - Call your local BRP dealership

515175814

$40.74

28

SCREW-THREAD CUT.PH.PAN TYPE25 - Call your local BRP dealership

250000022

$1.32

29

Socket Set Screw M8 X 10

414440800

$4.00
