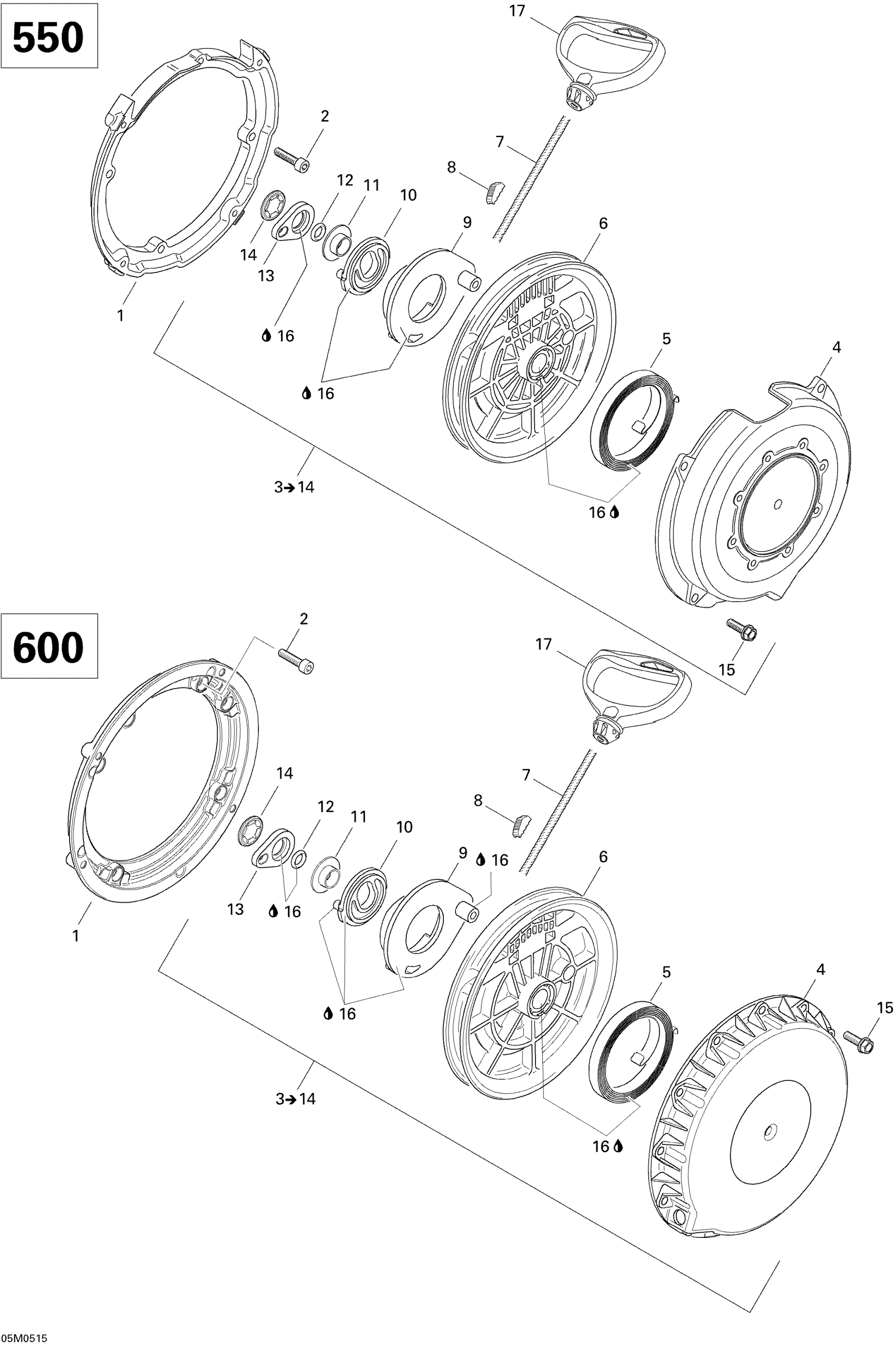

Ski-Doo Skandic SUV 550F, 2005 Rewind Starter 550F SUV Diagram

#

Description
Price

1

Flange Connector

420810955

Unavailable

2

Torx Flange Screw M6 X 20

420440207

$2.54

3

Rewind Starter Ass'y | Includes 3 to 13

420888219

Unavailable

4

Rewind Starter Ass'y | Includes 3 to 13

420888219

Unavailable

5

Rewind Spring

420939115

$25.32

6

Rope Sheave

420852480

Unavailable

7

Was 412500100 Rope-Starter

219704403

Unavailable

8

Key Clamp

420852070

Unavailable

9

Pawl

420852296

Unavailable

10

PAWL LOCK - Call your local BRP dealership

420852305

Unavailable

11

Stage Sleeve

420847926

Unavailable

12

O-Ring

420250400

Unavailable

13

Lock Ring

420852520

Unavailable

14

Locking Element

420845560

Unavailable

15

SCREW-TAPPING - Call your local BRP dealership This part replaces 420941250.

420941251

Unavailable

16

Molykote PG 54, 10 g

420899763

Unavailable

17

Starter Grip

572084400

Unavailable
