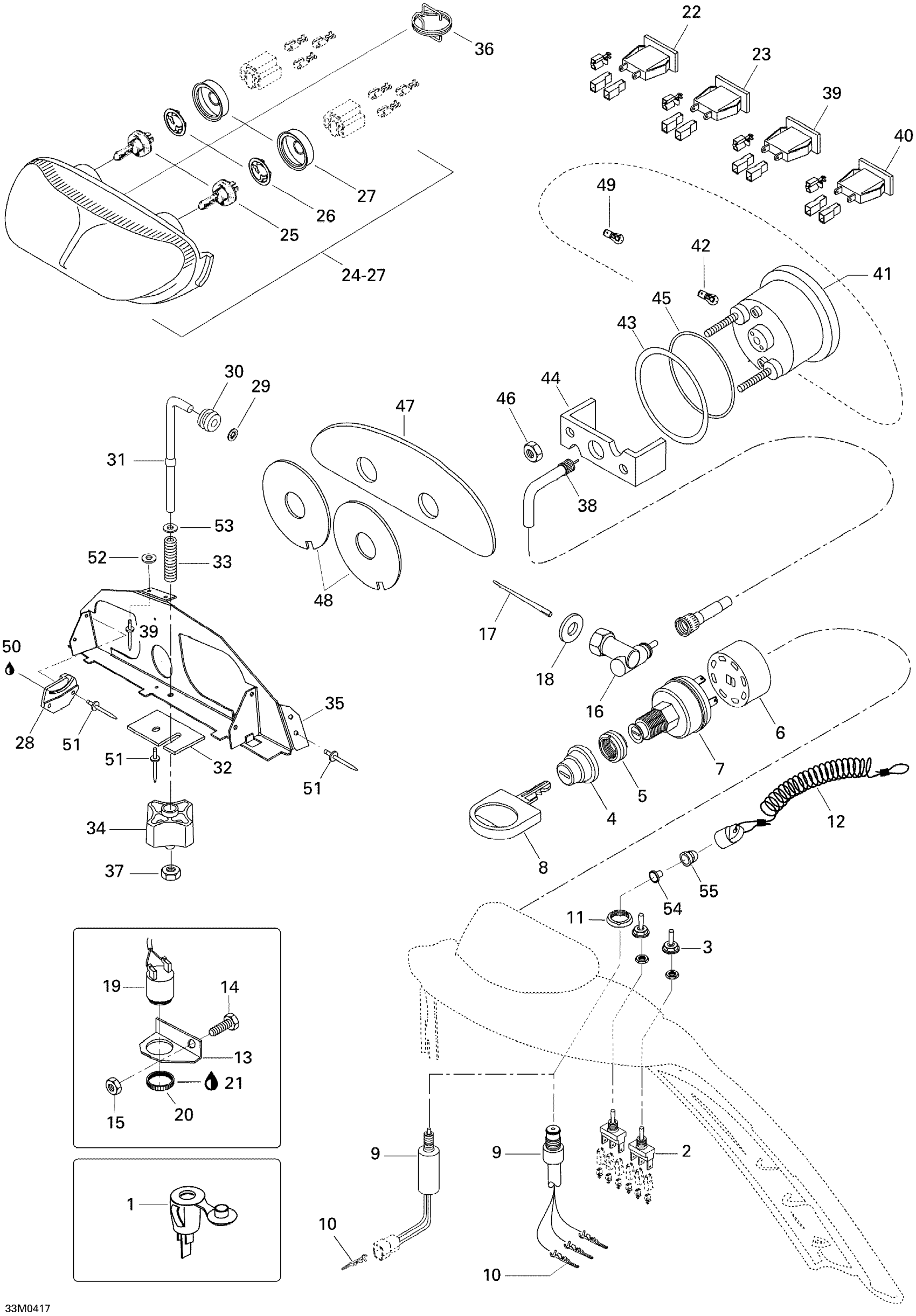

Ski-Doo Skandic SUV 550F, 2004 Electrical System Diagram
#
4
Switch Boot
570013700
Unavailable
6
FEMALE TERMINAL HOUSING, 9 CIRCUITS - Call your local BRP dealership
572150700
Unavailable
7
IGNITION SWITCH - Call your local BRP dealership
515176548
Unavailable
8
Blank Key
415129350
Unavailable
9
TERMINAL ASSY - Call your local BRP dealership | SUV 600
515166800
Unavailable
10
CONNECTOR - Call your local BRP dealership
605642628
Unavailable
12
DESS
515178284
Unavailable
13
Support
M549459
Unavailable
14
Hex. Screw M6 X 16
207161644
Unavailable
15
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
16
Gear Unit 1:1.4 Left Op-0127-002-N0-Gu This part replaces M35021.
35021
Unavailable
17
Tige Vitesse *Branch-Key This part replaces M45009.
45009
Unavailable
18
Washer
M5444186
Unavailable
21
Silicone Sealant 51388, 300 ml
296000309
Unavailable
22
PILOT LAMP, HEADLAMP - Call your local BRP dealership | North America
515175726
Unavailable
23
PILOT LAMP, OIL LEVEL/BRAKE - Call your local BRP dealership
515175728
Unavailable
24
Halogen Headlamp Ass'y | Includes 4 to 7
515176311
Unavailable
25
Halogen Bulb, 60/55 W, 12 V ( H4 )
515176274
Unavailable
26
BULB HOLDER - Call your local BRP dealership
515176385
Unavailable
27
COVER - Call your local BRP dealership
515175911
Unavailable
28
RH Support
517289300
Unavailable
28
LH Support
517289400
Unavailable
29
Push Nut
732610072
Unavailable
30
Grommet - Call your local BRP dealership
415100800
Unavailable
31
ADJUSTER ROD - Call your local BRP dealership
M5448100
Unavailable
32
Washer 6mm
M5448320
Unavailable
33
SPRING - Call your local BRP dealership
415100600
Unavailable
34
Handle - Call your local BRP dealership
515175548
Unavailable
35
Support
M5248092
Unavailable
36
Spring
M5445737
Unavailable
37
Elastic Stop Nut M6
232561414
Unavailable
38
Speedometer Cable This part replaces M5344162.
5344162
Unavailable
39
Pilot Lamp, Engine Temperature | SUV 600
410109700
Unavailable
40
Pilot Lamp, Dess | 600 SUV
410113300
Unavailable
41
Speedometer, Kmh
515175335
Unavailable
41
Speedometer, Mph
515175336
Unavailable
42
Bulb 12V-1.7W
515175929
Unavailable
43
Washer
517258500
Unavailable
44
Case Holder
414806500
Unavailable
45
O-Ring
414807100
Unavailable
46
NUT M5 - Call your local BRP dealership
M33062
Unavailable
47
Foam
M5247817
Unavailable
48
Plastic Plate
M5447818
Unavailable
49
INSTRUMENTATION BULB - Call your local BRP dealership
410504200
Unavailable
50
Grease Tube Lmz, 400 G
413707500
Unavailable
51
Rivet
36005
Unavailable
52
Washer 5,3 mm
20008
Unavailable
53
Flat Washer 6 mm
234061410
Unavailable
