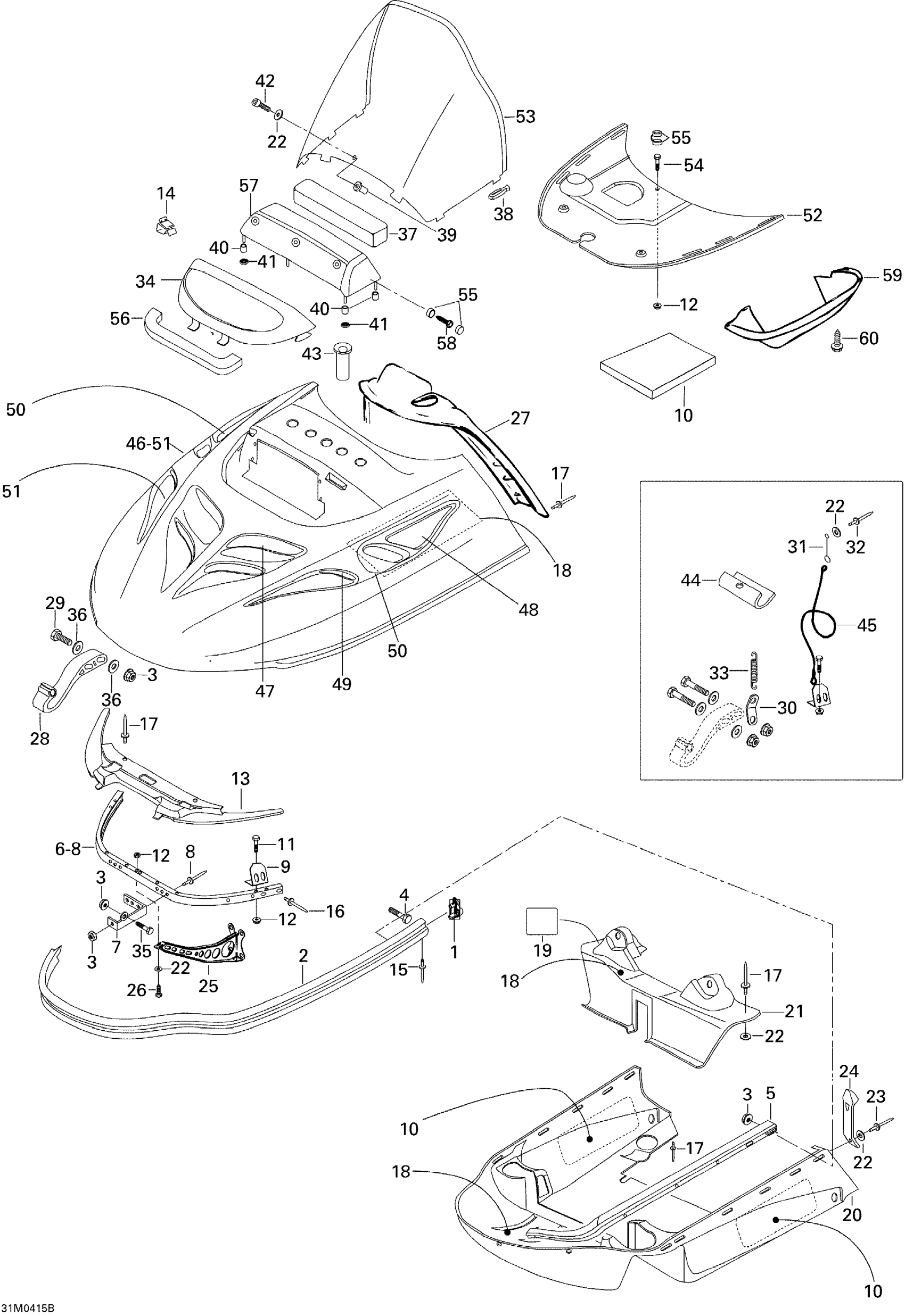

Ski-Doo Skandic SUV 550F, 2004 Cab, Console Diagram
#
1
RH Cap
M549096R
Unavailable
1
LH Cap
M549096L
Unavailable
2
Front Bumper
M5242798
Unavailable
3
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
4
Vis *Screw
M40078
Unavailable
5
RH Hood Guide
M5242804
Unavailable
5
LH Hood Guide
M5242803
Unavailable
6
SUPPORT-FRONT - Call your local BRP dealership | Includes 6 to 8 This part replaces M5246120.
5246120
Unavailable
7
Hinge
M5342234
Unavailable
7
Hinge
M5342345
Unavailable
9
HOOD GUIDE - Call your local BRP dealership
605449350
Unavailable
9
Hood Guide
M5443217
Unavailable
10
Acoustic Foam
414631900
Unavailable
11
Screw M5 X 16
M40247
Unavailable
12
NUT M5 - Call your local BRP dealership
M33062
Unavailable
13
COVER - Call your local BRP dealership
605252352
Unavailable
15
RIVET - Call your local BRP dealership
M36097
Unavailable
17
Black, Rivet
M36036
Unavailable
18
REFLECTIVE SHEET (1M X 1M) - Call your local BRP dealership This part replaces M44001.
44001
Unavailable
19
ISOLATION SHEET - Call your local BRP dealership
605449182
Unavailable
20
Bottom Pan | 550F SUV
605149550
Unavailable
20
Bottom Pan | 600 SUV
605148596
Unavailable
21
Cover
605248597
Unavailable
22
Washer 5,3 mm
20008
Unavailable
22
Washer 5,3 mm
20008
Unavailable
23
Rivet This part replaces M36009.
36009
Unavailable
24
Hood Latch
5342952
Unavailable
25
Painted Central Support
M5245977
Unavailable
26
Screw
M40308
Unavailable
27
Dash | SUV 550
605148419
Unavailable
27
Dash | SUV 600
605148420
Unavailable
28
Hinge This part replaces M5343075.
5343075
Unavailable
29
SCREW - Call your local BRP dealership
M40193
Unavailable
30
SPRING PLATE - Call your local BRP dealership
M5443123
Unavailable
31
CABLE KEEPER - Call your local BRP dealership | SUV 550
605449395
Unavailable
31
CABLE-KEEPER - Call your local BRP dealership | SUV 600
M5446948
Unavailable
32
Rivet
36005
Unavailable
33
Spring This part replaces M5442675.
5442675
Unavailable
34
Molding Lamp
M5246396
Unavailable
35
SCREW M6 X 45 - Call your local BRP dealership
M40084
Unavailable
37
FILTER - Call your local BRP dealership
605349056
Unavailable
38
Windshield Latch
570023800
Unavailable
39
Well-Nut S M5 X 14 (1=10Pcs) This part replaces M28055.
28055
Unavailable
40
Rubber Cushion | 600 SUV
M5443985
Unavailable
41
Safety Washer
36084
Unavailable
42
Screw
M40156
Unavailable
43
SHORT TUBE - Call your local BRP dealership
605449084
Unavailable
44
SUPPORT - Call your local BRP dealership | SUV 600
605450205
Unavailable
45
Retainer Cable | 550 SUV
M5346947
Unavailable
45
Retainer Cable | SUV 600
M5342674
Unavailable
46
Hood Ass'y | SUV 550 (Yellow), Includes 25 to 29
605149586
Unavailable
46
HOOD ASS'Y - Call your local BRP dealership | SUV 600 (Black), Includes 46 to 51
605150366
Unavailable
46
HOOD ASS'Y, YELLOW - Call your local BRP dealership | SUV 600 (Yellow), Includes 46 to 51
605149606
Unavailable
47
Front Grill
M5142669
Unavailable
48
RH UPPER GRILL - Call your local BRP dealership
M5242671
Unavailable
48
LH Upper Grill | SUV 550
M5242670
Unavailable
48
LH Upper Grill | SUV 600
M5242899
Unavailable
49
RH Lower Grill
M5242672
Unavailable
49
LH Lower Grill
M5342673
Unavailable
50
RH Cover | SUV 600
M5342990
Unavailable
50
LH Cover | SUV 600
M5343408
Unavailable
51
Fan Cover | SUV 600
M5343409
Unavailable
52
Air Duct
M5246742
Unavailable
53
WINDSHIELD - Call your local BRP dealership
M5147892
Unavailable
54
Screw M5X25
M40179
Unavailable
55
COVER - Call your local BRP dealership
M282000
Unavailable
55
COVER - Call your local BRP dealership
M282000
Unavailable
56
HEADLIGHT FOAM SEAL - Call your local BRP dealership | SUV 600
605349151
Unavailable
57
INTAKE COVER - Call your local BRP dealership
605149010
Unavailable
58
SCREW-HEX. - Call your local BRP dealership
M40901
Unavailable
59
Air Duct | SUV 550
M5146986
Unavailable
