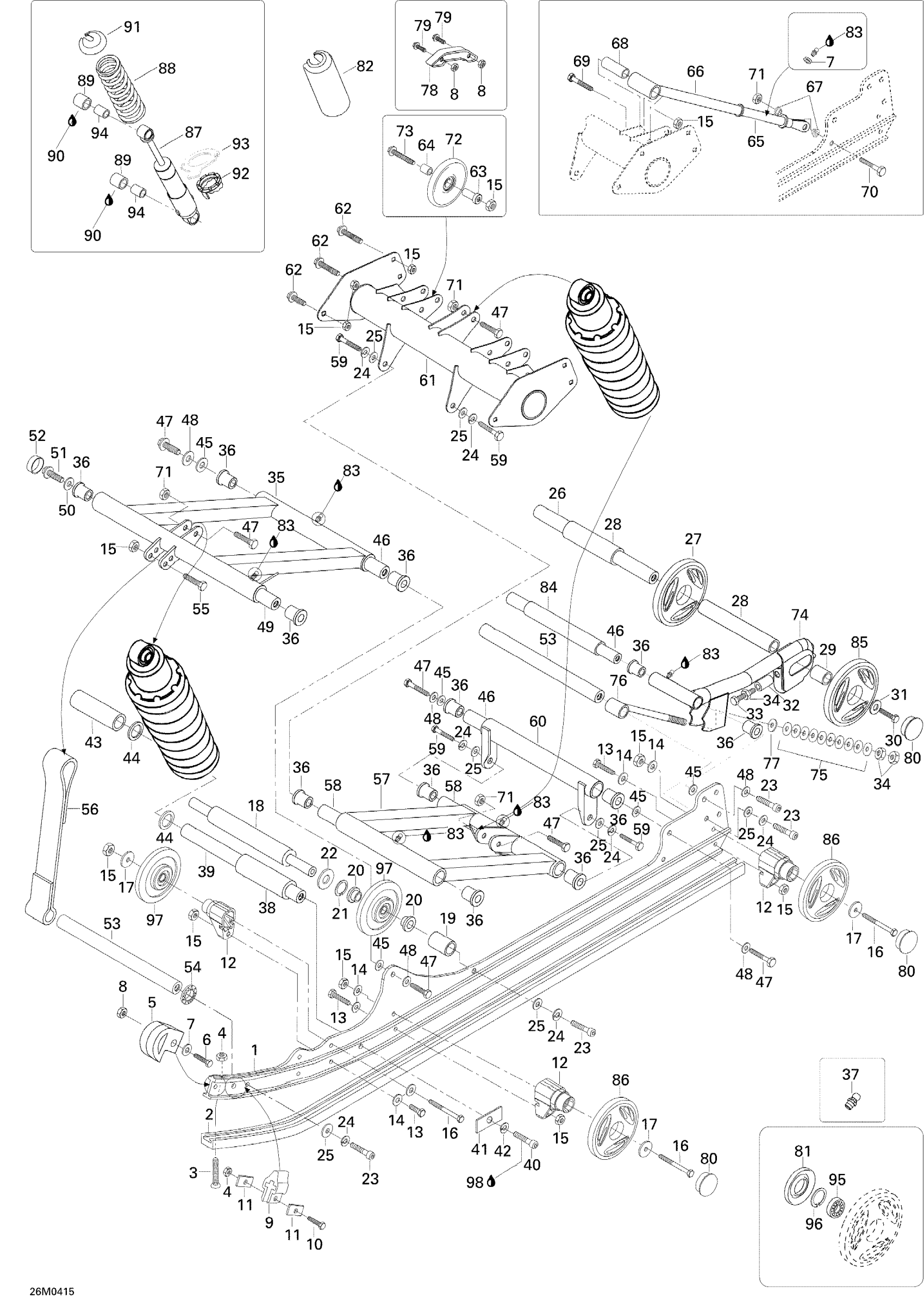

Ski-Doo Skandic SUV 550F, 2004 Rear Suspension Diagram

#

Description
Price

1

RUNNER - Call your local BRP dealership

M5247224

Unavailable

2

Slide Shoe

605355362

$27.66

3

Screw M6X60

M40059

Unavailable

4

Elastic Stop Nut M6

232561414

$1.55

5

Runner Protector

605348954

$17.66

6

Hex. Screw M6 X 25

207162544

$1.05

7

Flat Washer 6 mm

234061410

$1.04

8

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

9

Rubber Stopper

M5448216

Unavailable

10

Hex. Screw M6 X 30

207063044

$0.98

11

Plate

M548470

Unavailable

12

SUPPORT - Call your local BRP dealership

605450182

Unavailable

13

Hex. Screw M8 X 25

207182544

$0.74

14

Flat Washer 8 mm

234081410

$0.69

15

Hex. Elastic Stop Nut M8

232581414

$0.47

16

Screw

M40089

Unavailable

17

Washer

503183100

$3.08

18

Shaft, supportwheel - Call your local BRP dealership This part replaces M5347950.

5347950

Unavailable

19

Sleeve - Call your local BRP dealership This part replaces M5447951.

5447951

Unavailable

20

Cushion

503189534

$4.55

21

Circlip 20X1.75 DIN471 This part replaces M31007.

293370056

$4.28

22

SHIM - Call your local BRP dealership

M31091

Unavailable

23

Screw Socket HD.DIN 912 This part replaces 205004544.

40134

$1.66

24

Lock Washer

M20047

Unavailable

25

WASHER M10 - Call your local BRP dealership

20005

Unavailable

26

SHAFT - Call your local BRP dealership

M5343284

Unavailable

27

Thin Wheel 165

503189478

$49.97

28

Sleeve This part replaces M5444096.

5444096

$27.66

29

Sleeve L=29

M5444098

Unavailable

30

Hex. Screw With Nylon Patch

M40050

Unavailable

31

Washer

503183300

$5.68

32

Spacer - Call your local BRP dealership This part replaces M546668.

546668

Unavailable

33

SCREW - Call your local BRP dealership

M40239

Unavailable

34

Hex. Nut M10 X 1.5

232006414

$1.11

35

Front arm - Call your local BRP dealership This part replaces M5147672.

5147672

Unavailable

36

Cushion This part replaces M31024.

31024

$12.83

37

Grease Fitting M6 x 1,00(1=10pcs) - Call your local BRP dealership This part replaces M34011.

34011

Unavailable

38

Limiter - Call your local BRP dealership This part replaces M5347718.

5347718

Unavailable

39

Shaft This part replaces M5347726.

5347726

$78.43

40

Screw Socket HD.DIN 912 This part replaces 205004544.

40134

$1.66

41

Support plate This part replaces M5447940.

5447940

$11.34

42

Lock Washer D10

20068

$1.97

43

SLEEVE - Call your local BRP dealership

M5346649

Unavailable

44

Shim Ring This part replaces M31013.

31013

$7.31

45

Shim This part replaces M20116.

20116

$2.05

46

Lower Shaft, Front Arm This part replaces M5347713.

5347713

$69.20

47

Hex. Screw M10 X 45

207004544

$1.65

48

Lock Washer

512056700

$3.11

49

Upper Shaft This part replaces 605348606.

5347719

$78.43

50

Conical Spring Washer

M20090

Unavailable

51

Screw M12 X 60

M40243

Unavailable

52

Pressure Cap

509000187

$27.66

53

Shaft This part replaces M5347717.

5347717

$46.12

54

Washer

M4181158

Unavailable

55

Hex. Screw M8 X 45

207084544

$1.25

56

Stopper Strap

M5447961

Unavailable

57

Welded Rear Arm

M5245536

Unavailable

58

SHAFT - Call your local BRP dealership This part replaces M5346865.

5346865

Unavailable

59

Hex. Screw M10 X 40

207004044

$4.65

60

Welded Rear Arm

M5347668

Unavailable

61

UPPER REAR BEAM BRACKET - Call your local BRP dealership

605248974

Unavailable

62

Carriage Bolt, M8 X 20

207782044

$1.56

63

FLANGED SLEEVE - Call your local BRP dealership

605450372

Unavailable

64

SLEEVE - Call your local BRP dealership

605450373

Unavailable

65

Axe *Shaft

M5347852

Unavailable

66

Poker tube This part replaces M5347851.

5347851

$54.58

67

Insert

M5447853

Unavailable

68

Bearing sleeve - Call your local BRP dealership This part replaces M5447848.

5447848

Unavailable

69

HEX. SCREW M8 X 60 - Call your local BRP dealership

207086044

Unavailable

70

Hex. Screw M10 X 35

207103544

$1.42

71

Elastic Locking Nut M10 X 1.5

233601416

$1.68

72

Idler Wheel

M46027

Unavailable

73

Hex. Screw M8 X 70

M40088

Unavailable

74

EXTENSION SWING RH - Call your local BRP dealership

605251780

Unavailable

74

LH Extension

M5247808

Unavailable

75

Cup Spring This part replaces M25004.

25004

$3.43

76

Eye bolt adjuster This part replaces M5447373.

5447373

$37.66

77

Flat Washer 10 mm This part replaces M20011.

234002410

$1.25

78

Sliding Pad

503192731

Unavailable

79

BOLT CARRIAGE DIN.603 - Call your local BRP dealership This part replaces M40064.

207764044

Unavailable

80

Wheel Cap

570063600

$3.28

81

LABYRINTH SEAL - Call your local BRP dealership

572089000

Unavailable

82

Shock Protector

M5346754

Unavailable

83

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable

84

Sleeve

605448429

$69.97

85

Wheel 165 mm Yellow

503190817

$49.97

86

WHEEL 139 MM - Call your local BRP dealership

503190815

Unavailable

87

SHOCK-CENTER - Call your local BRP dealership

M23161

Unavailable

87

REAR SHOCK - Call your local BRP dealership

M23162

Unavailable

88

White Spring

M25059

Unavailable

88

White Spring

M25060

Unavailable

89

Cushion This part replaces M31094.

31094

$10.08

90

Loctite 641, 50 ml

M320006

Unavailable

91

Spring Seat

230076

Unavailable

92

CAM - Call your local BRP dealership

M230078

Unavailable

93

ARM ADJUSTING ASS'Y - Call your local BRP dealership

605348748

Unavailable

94

Bushing This part replaces M5446652.

5446652

$7.40

95

Ball Bearing

293350115

$11.15

96

CIRCLIP - Call your local BRP dealership

371901700

Unavailable

97

Wheel 139 mm Ass'y

503190798

$32.28

98

Loctite 271, 10 ml

293800005

$20.77
