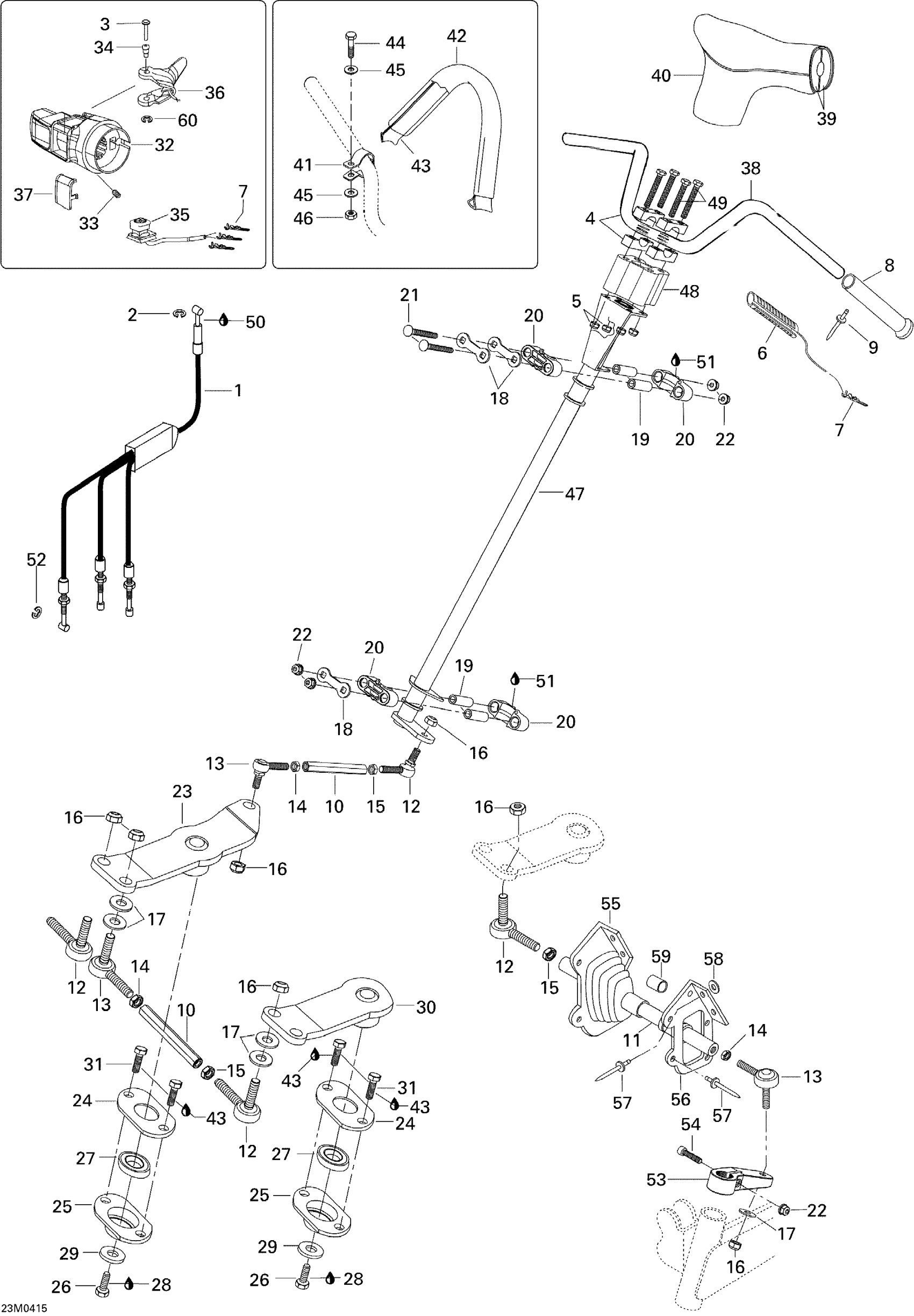

Ski-Doo Skandic SUV 550F, 2004 Steering System Diagram

#

Description
Price

1

Throttle Cable

605249117

Unavailable

1

THROTTLE CABLE - Call your local BRP dealership

M5246328

Unavailable

2

Circlip

M31038

Unavailable

3

Lever Pin

414438700

$11.14

4

Support Guidon *Support-Steer.

M548448

Unavailable

5

Hex. Elastic Stop Nut M8

232581414

Unavailable

6

Heating Grip

515175664

Unavailable

7

CONNECTOR - Call your local BRP dealership

605642628

Unavailable

8

Grip | WAKE This part replaces M5340464.

506152483

$9.85

9

Rivet

36005

Unavailable

10

SHORT TIE ROD - Call your local BRP dealership

605448308

Unavailable

11

ROD_LINK - Call your local BRP dealership

605448307

Unavailable

12

LH JOINT BALL - Call your local BRP dealership

506151845

Unavailable

13

RH BALL JOINT - Call your local BRP dealership

506151492

Unavailable

14

RH NUT - Call your local BRP dealership

M33019

Unavailable

15

LH NUT - Call your local BRP dealership

M33017

Unavailable

16

Elastic Flange Nut M10

232501416

Unavailable

17

WASHER M10 - Call your local BRP dealership

20005

Unavailable

18

Stopper Plate

506150600

Unavailable

19

Housing Bushing

506150500

Unavailable

20

Housing Half

506150400

Unavailable

21

Carriage Bolt M8 X 70

207787044

Unavailable

22

Hex. Flange Elastic Nut M8

233281414

Unavailable

23

RH WELDED LEVER - Call your local BRP dealership

605348402

Unavailable

24

Cover

M5345380

Unavailable

25

Bearing Support

605350644

Unavailable

26

Hex. Screw

M40337

Unavailable

27

Ball Bearing

293350115

Unavailable

28

Loctite 243, 10 ml

293800060

$20.77

29

WASHER - Call your local BRP dealership

M5446279

Unavailable

30

LH WELDED LEVER - Call your local BRP dealership

605348403

Unavailable

31

HEX. SCREW M8 X 20 - Call your local BRP dealership This part replaces M40336.

40336

Unavailable

32

THROTTLE HOUSING - Call your local BRP dealership

512059489

Unavailable

32

THROTTLE HOUSING - Call your local BRP dealership

512059243

Unavailable

33

Socket Set Screw M8 X 10

414440800

$4.00

34

Flange Screw

732601143

$4.02

35

Kill Switch

515175410

Unavailable

36

Handle Ass'y

512060214

Unavailable

36

Handle Ass'y

512059348

Unavailable

37

Switch Cover

572100901

Unavailable

38

HANDLE BAR - Call your local BRP dealership

605249033

Unavailable

39

REAR PADDING STEERING - Call your local BRP dealership

605250306

Unavailable

39

Front Padding Steering

605250305

Unavailable

40

Handle Bar Cover

605250279

Unavailable

41

Support Plate

506148200

Unavailable

42

Strap Ass'y | Package XMR

506152115

$43.05

43

Strap Ass'y | Package XMR

506152115

$43.05

44

Hex. Screw M6 X 25

207162544

Unavailable

45

Flat Washer 6 mm

234061410

Unavailable

46

Elastic Stop Nut M6

232561414

Unavailable

47

MAIN TUBE - Call your local BRP dealership

605250189

Unavailable

48

EXTENSION - Call your local BRP dealership

605349584

Unavailable

49

SOCKET HEAD SCREW M8 X 40 - Call your local BRP dealership

M40124

Unavailable

50

Was 293550004 Dielectric Grease, 150 g

219704453

Unavailable

51

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable

52

Circlip

414753500

$0.59

53

Steering Arm

M5348261

Unavailable

54

Allen Screw M8 X 45

M40828

Unavailable

55

RH Tie Rod Cap

570024800

Unavailable

55

LH TIE ROD CAP - Call your local BRP dealership

570024900

Unavailable

56

RH Cap Plate

517241200

Unavailable

56

LH CAP PLATE - Call your local BRP dealership

517241300

Unavailable

57

Black, Rivet

M36036

Unavailable

58

Washer 5,3 mm

20008

Unavailable

59

BUSHING - Call your local BRP dealership

572036500

Unavailable

60

Circlip | Model-RS

414439000

Unavailable
