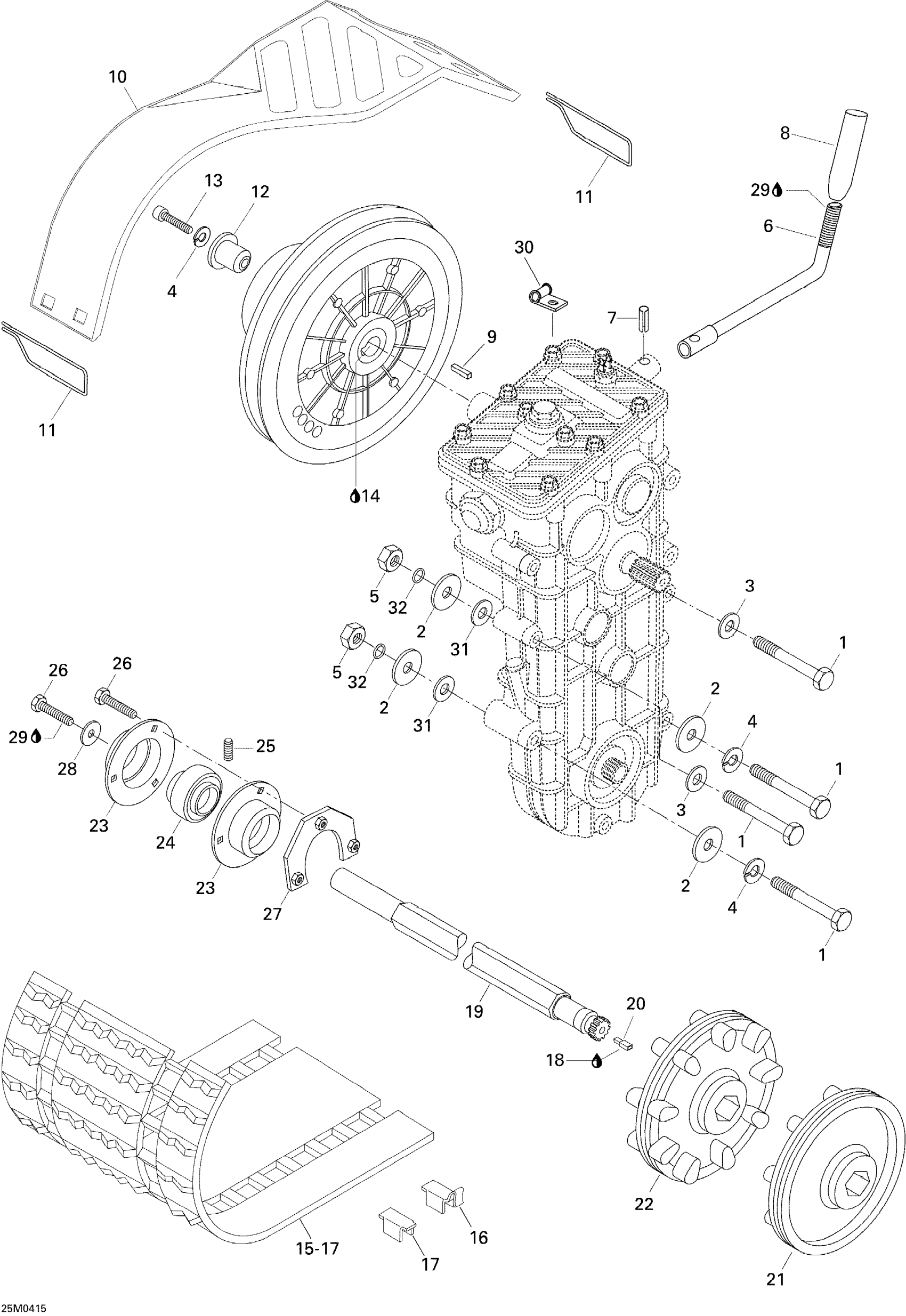

Ski-Doo Skandic SUV 550F, 2004 Drive System Diagram
#
Description
Price
1
Screw M8 X 80
M40012
Unavailable
3
Flat Washer 8 mm
234081410
Unavailable
4
Lock Washer 8 mm
234181401
Unavailable
5
Hex. Elastic Stop Nut M8
232581414
Unavailable
6
Bras Vitesse *Arm-Shifter
M5340902
Unavailable
7
Pin Spring
M41008
Unavailable
7
PIN SPRING - Call your local BRP dealership
M41007
Unavailable
8
Shift button This part replaces M28247.
28247
Unavailable
9
KEY - Call your local BRP dealership This part replaces M418763.
619690074
Unavailable
10
Belt Guard | SUV 550
605150015
Unavailable
11
Pin This part replaces M5442726.
5442726
Unavailable
12
Sleeve This part replaces M5443201.
5443201
Unavailable
13
Socket Head Screw M8 X 45
M40286
Unavailable
14
LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership
219704461
Unavailable
15
Track ass'y | Includes 10 to 12 This part replaces M13070.
13070
Unavailable
16
CLEAT-GUIDE - Call your local BRP dealership
M5318323
Unavailable
17
CLEAT - Call your local BRP dealership
M5318322
Unavailable
18
Loctite 271, 10 ml
293800005
Unavailable
19
Drive Axle This part replaces M5345117.
5345117
Unavailable
20
Speed Drive Insert This part replaces M542013.
542013
Unavailable
21
HALF SPROCKET - Call your local BRP dealership
415067400
Unavailable
23
Bearing House This part replaces M534430.
534430
Unavailable
24
BALL BEARING - Call your local BRP dealership | Includes 24 to 25
M31UC205
Unavailable
25
BALL BEARING - Call your local BRP dealership | Includes 24 to 25
M31UC205
Unavailable
26
HEX. SCREW M8 X 20 - Call your local BRP dealership This part replaces M40336.
40336
Unavailable
27
Fasten Ring Weld This part replaces M546421.
546421
Unavailable
28
Washer
M546336
Unavailable
30
WIRE-HOLDER - Call your local BRP dealership
M5443134
Unavailable
31
M8 Washer This part replaces M20077.
20077
Unavailable
32
O-RING - Call your local BRP dealership
506151140
Unavailable
