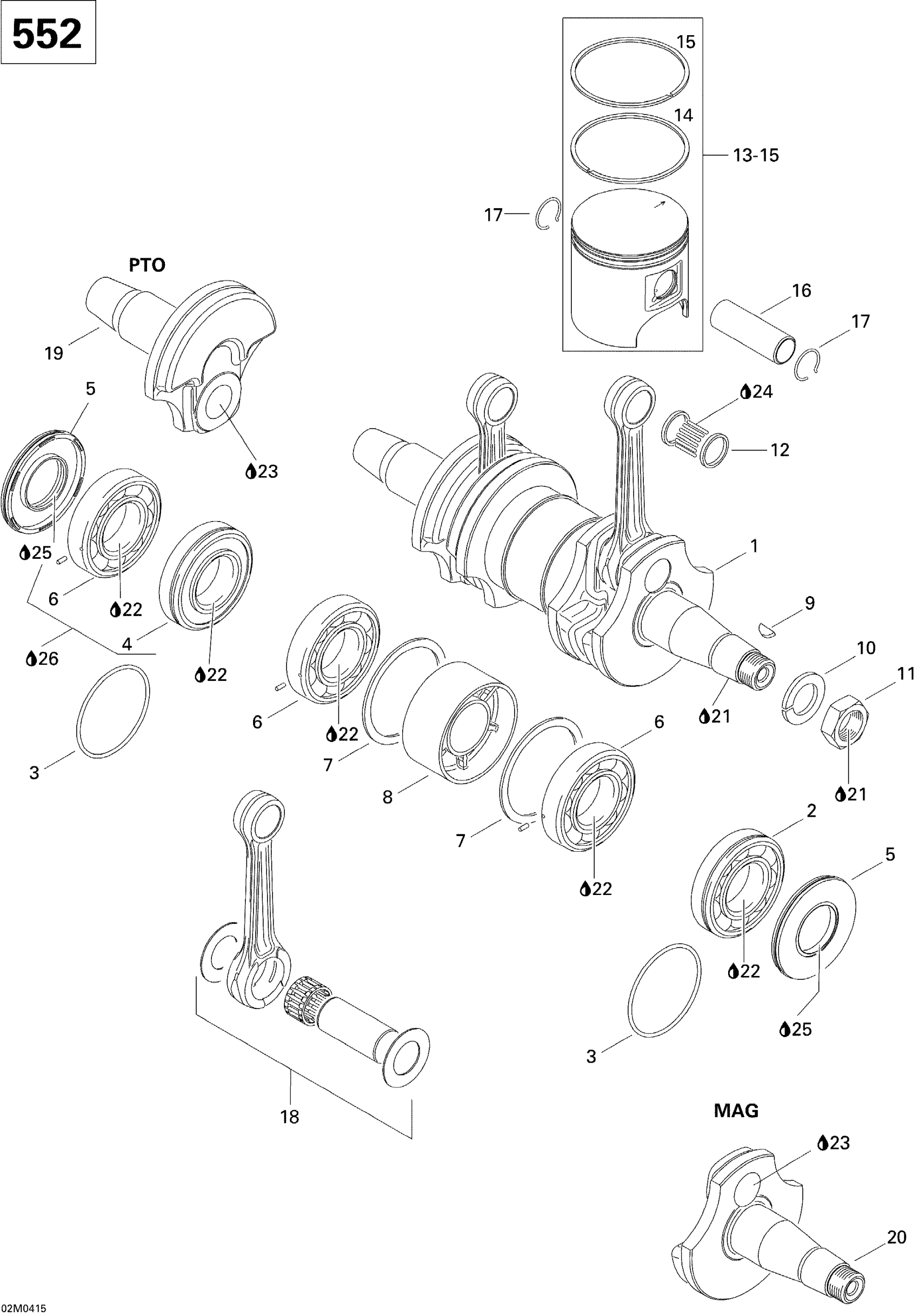

Ski-Doo Skandic SUV 550F, 2004 Crankshaft And Pistons (552) Diagram
#
Description
Price
1
CRANKSHAFT - Call your local BRP dealership | Includes 1 to 8 This part replaces 420889062.
420889066
Unavailable
1
CRANKSHAFT - Call your local BRP dealership | Includes 1 to 8 This part replaces 420889062.
420889066
Unavailable
2
Ball Bearing
420832571
Unavailable
3
O-Ring, 64 mm X 2 mm
293300022
Unavailable
4
Ball Bearing
420832632
Unavailable
5
Oil Seal This part replaces 290831952.
420831952
Unavailable
6
Ball Bearing
420832573
Unavailable
7
Retaining Disk
420927710
Unavailable
8
Labyrinth Sleeve
420850149
Unavailable
9
Woodruff Key
420246055
Unavailable
10
Lock Washer, 22 mm
420945759
Unavailable
11
Hex. Nut, M22 X 1.5
420842239
Unavailable
12
NEEDLE BEARING - Call your local BRP dealership
420832420
Unavailable
13
Piston Ass'y 75.86 mm, Standard | Includes 14 to 16
420889050
Unavailable
13
Piston Ass'y 76.11 mm, 1st Oversize | Includes 14 to 16
420889051
Unavailable
13
Piston Assy 76.36 mm, 2nd Oversize | Includes 14 to 16
420889052
Unavailable
14
Rectangular Ring, Standard
420815300
Unavailable
14
Rectangular Ring, 1st
420815301
Unavailable
14
Rectangular Ring, 2nd
420815302
Unavailable
15
Semi-Trapez Ring, Standard
420815155
Unavailable
15
Semi-Trapez Ring, 1st
420815156
Unavailable
15
Semi-Trapez Ring, 2nd
420815157
Unavailable
16
Piston Pin
420916407
Unavailable
17
Piston Circlip
420845106
Unavailable
18
Rod Repair Kit
420889064
Unavailable
19
Crankshaft PTO Side
420819180
Unavailable
20
Half Crankshaft (MAG)
420819213
Unavailable
22
LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership
219704461
Unavailable
23
Sealant Loctite 648
219703000
Unavailable
24
OIL 2T CARB PREM. MINERAL QT/0,946L This part replaces 413802900.
779119
Unavailable
25
Petamo Grease, GHY133N, 400 g
420899271
Unavailable
26
Isoflex Grease, TOPAS NB52, 50 g
293550021
Unavailable
