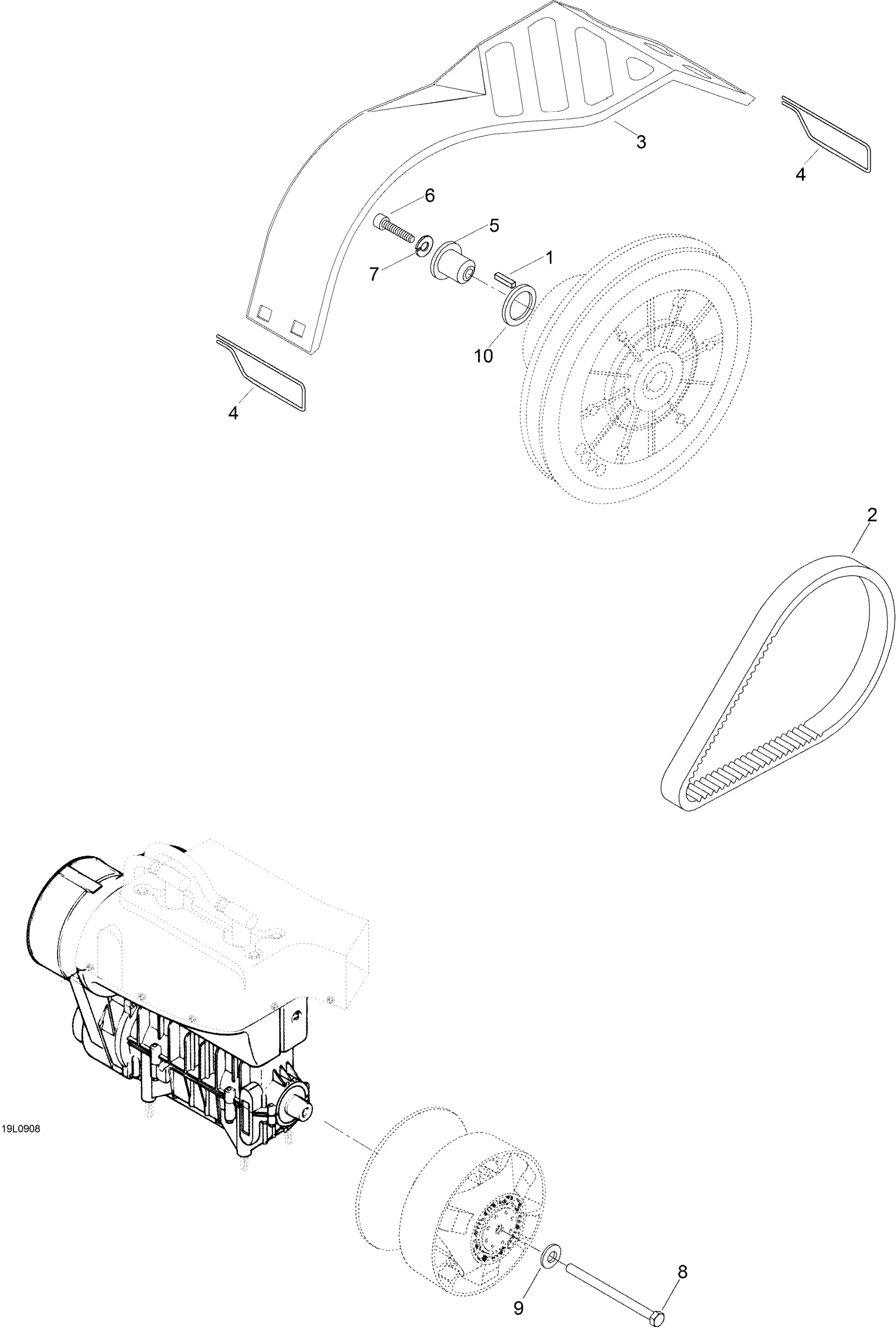

Ski-Doo Skandic SUV, 2009 Pulley System Diagram

#

Description

Price

1

KEY - Call your local BRP dealership This part replaces M418763.

619690074

Unavailable

2

Drive Belt

605348425

Unavailable

3

BELT GUARD - Call your local BRP dealership

M5142660

Unavailable

4

Pin This part replaces M5442726.

5442726

Unavailable

5

Sleeve This part replaces M5443201.

5443201

Unavailable

6

Socket Head Screw M8 X 45

M40286

Unavailable

7

Lock Washer 8 mm

234181401

Unavailable

8

BOLT - Call your local BRP dealership

417113800

Unavailable

9

Conical Spring Washer

M20090

Unavailable

10

Shim

M3125351

Unavailable
