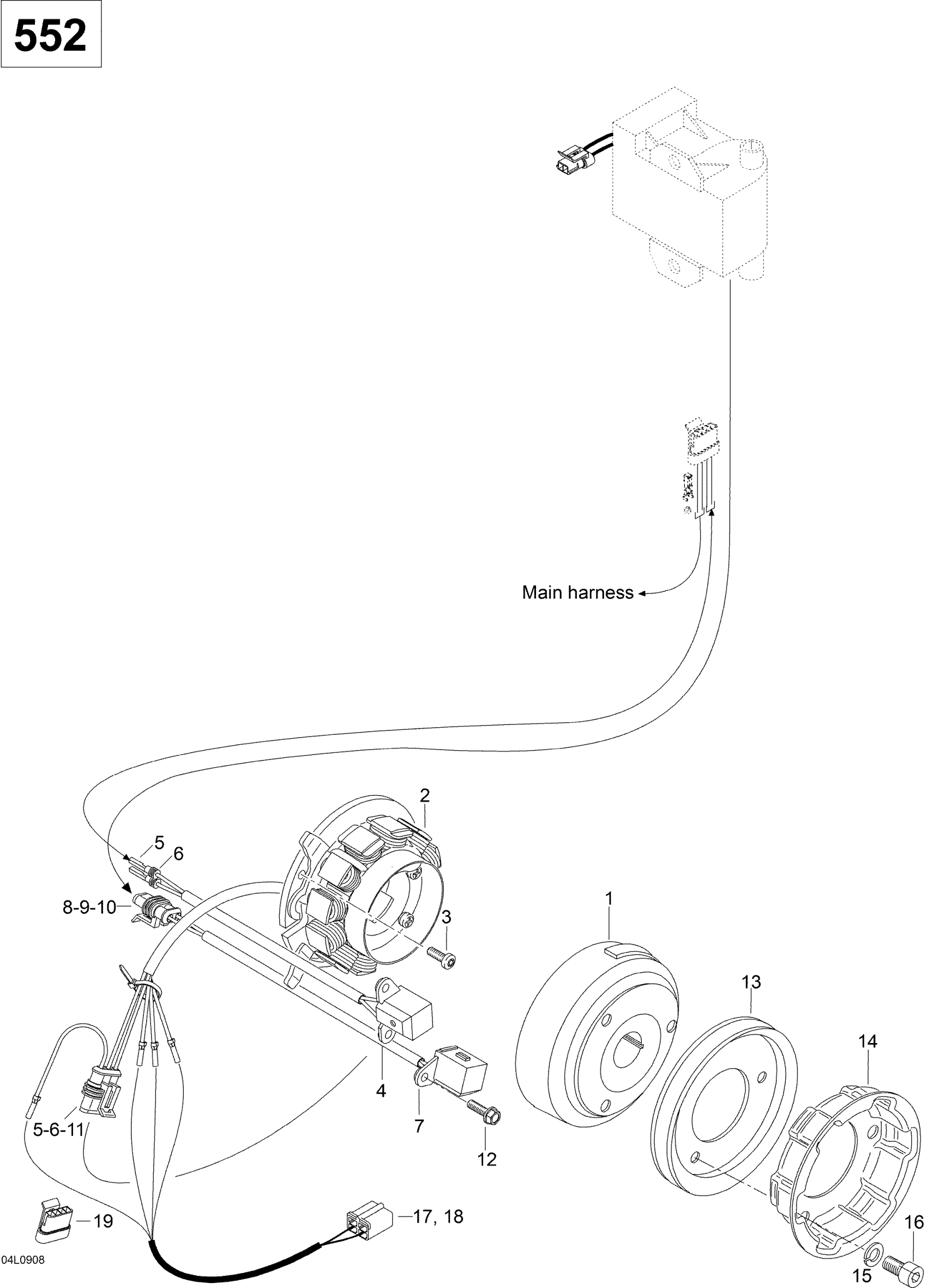

Ski-Doo Skandic SUV, 2009 Magneto Diagram
#
Description
Price
—
Not Available As Spare Part - Friction Washer
Unavailable
1
Flywheel
420889376
Unavailable
2
Stator Plate A
420889369
Unavailable
3
Screw
420641521
Unavailable
4
Pick-Up
420665163
Unavailable
5
Female Terminal
278001014
Unavailable
6
Wire Seal
278001013
Unavailable
7
PICK-UP - Call your local BRP dealership
420665160
Unavailable
9
Female Terminal
278001014
Unavailable
10
Wire Seal
278001013
Unavailable
11
Female Housing, 3 Circuits
409209600
Unavailable
12
Taptite Screw M5 X 16
420941928
Unavailable
13
V-Belt Pulley
420980486
Unavailable
14
Rope Sheave
420852414
Unavailable
15
Lock Washer
420845311
Unavailable
16
Torx Flange Screw M8 X 16
420440852
Unavailable
17
Female Terminal Housing, 4 Circuits
278001473
Unavailable
18
Female Lock, 4 Circuits
278001474
Unavailable
19
Male Housing
M42618
Unavailable
