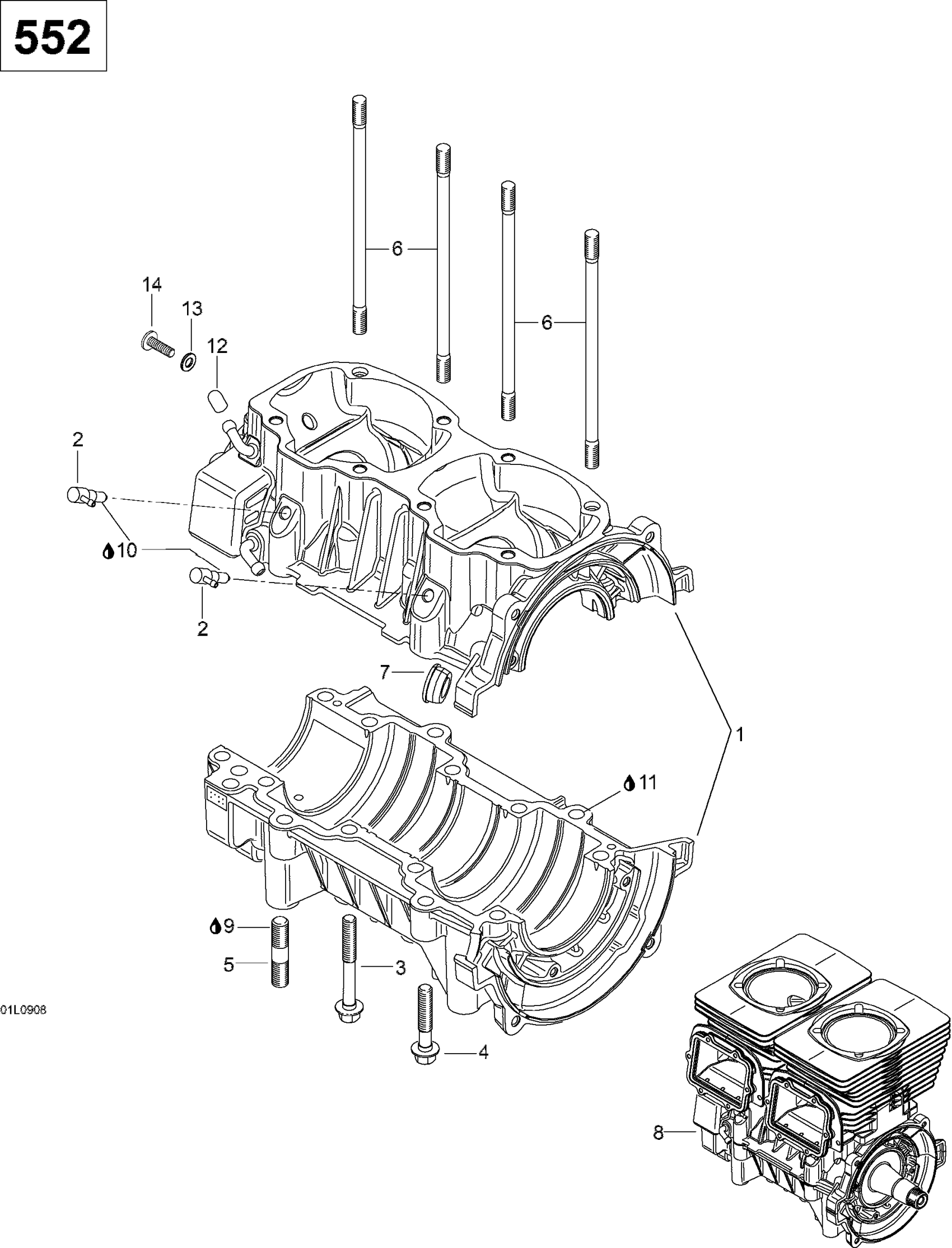

Ski-Doo Skandic SUV, 2009 Crankcase Diagram
#
Description
Price
1
Crankcase Ass'y | Includes 1 to 4
420890237
Unavailable
3
Hex. Collar Screw M8 X 68.5 This part replaces 420640951.
420640952
Unavailable
4
Hex. Collar Screw M8 x 45
420640432
Unavailable
5
STUD M10 - Call your local BRP dealership
420940704
Unavailable
6
Stud M8 X 173.5
420840556
Unavailable
7
Cable Grommet
420860962
Unavailable
8
REBUILD-SHORT BLOCK 552RF - Call your local BRP dealership This part replaces 420055207.
421000663
Unavailable
8
REBUILD-SHORT BLOCK 552RF - Call your local BRP dealership This part replaces 420055207.
421000663
Unavailable
10
Sealant Loctite 648
219703000
Unavailable
11
Sealing Compound Loctite 5366 310Ml
420297907
Unavailable
12
CAP - Call your local BRP dealership
420960772
Unavailable
13
Flat Washer 8.4 mm
420250315
Unavailable
14
Taptite Flat Head Screw M5 x 12 This part replaces 420640896.
420640897
Unavailable
