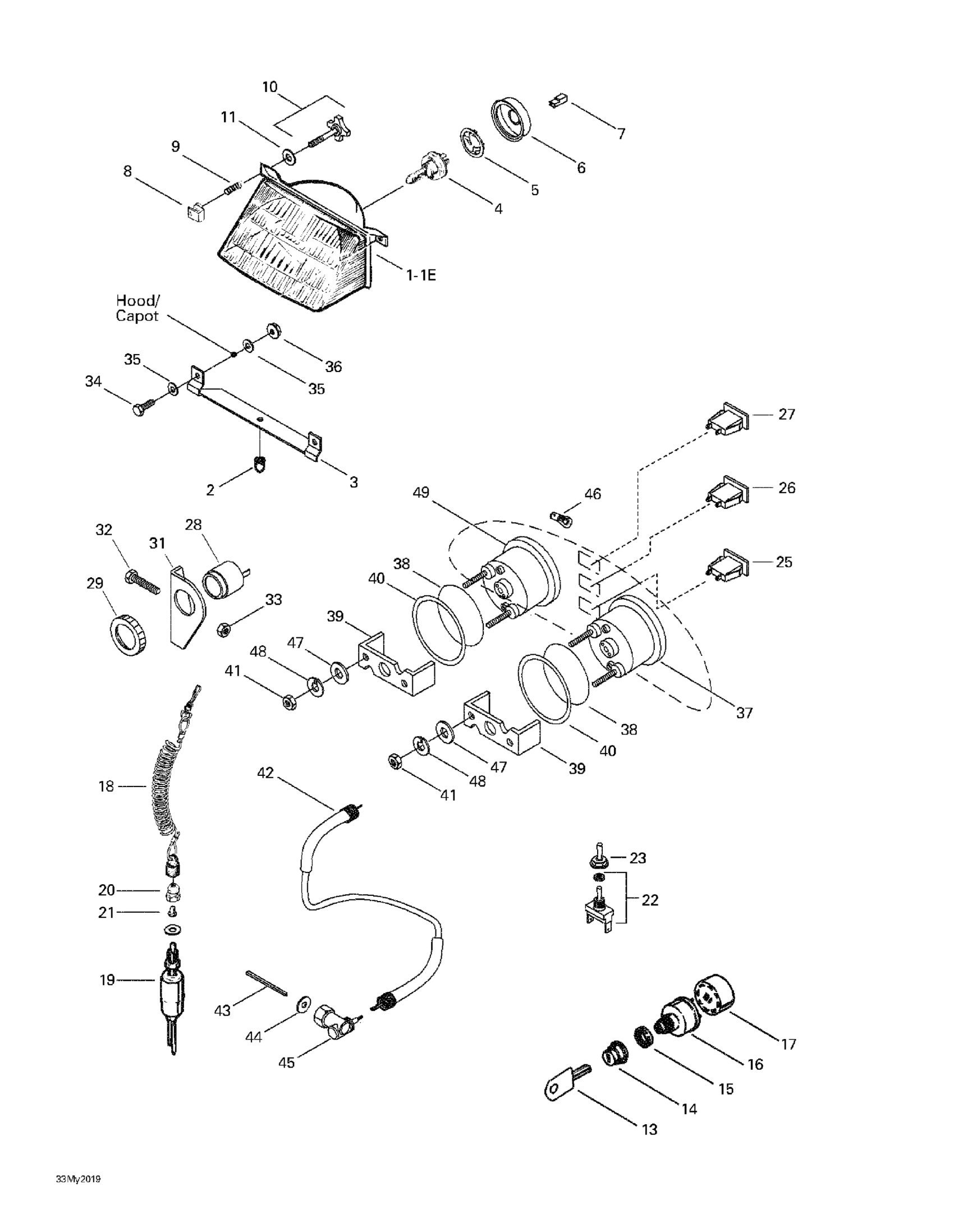

Ski-Doo Skandic Super Wide Track, 2000 Electrical System Diagram

#

Description
Price

1

Headlamp | Includes 42 to 45

410609100

Unavailable

1B

Halogen Bulb, 60/55 W, 12 V ( H4 )

515176274

$23.05

1C

PROTECTOR CAP - Call your local BRP dealership

410607100

Unavailable

1D

BULB HOLDER - Call your local BRP dealership

410608300

Unavailable

1E

Headlamp | Includes 53 to 56

410609300

Unavailable

2

RUBBER STOPPER - Call your local BRP dealership

410608200

Unavailable

3

HOLDER - Call your local BRP dealership

M539864

Unavailable

4

Halogen Bulb, 60/55 W, 12 V ( H4 )

515176274

$23.05

5

BULB HOLDER - Call your local BRP dealership

410608300

Unavailable

6

PROTECTOR CAP - Call your local BRP dealership

410607100

Unavailable

7

Tab Connector Housing

M1200909

Unavailable

8

Projector Nut

572078600

Unavailable

9

Spring

517168600

$6.91

10

PLASTITE PHILLIPS SCREW M4 X 40 - Call your local BRP dealership

243244040

Unavailable

11

Washer

M20001

Unavailable

13

Blank Key

415129350

Unavailable

14

Switch Boot

570013700

$10.82

15

FACE NUT - Call your local BRP dealership

410112100

Unavailable

16

IGNITION SWITCH - Call your local BRP dealership | Formula Deluxe 380 F.

410111300

Unavailable

17

FEMALE TERMINAL HOUSING, 9 CIRCUITS - Call your local BRP dealership

572150700

Unavailable

18

Cap Ass'y

515178283

$37.66

19

Brake Switch

515175653

$15.57

20

Switch Nut

515145900

$10.83

21

Plunger Cap

570151100

$10.14

22

Heat Grip Switch

410110700

$31.51

23

Switch Cover

515175281

$15.03

25

Pilot Lamp (Blue)

410109600

Unavailable

26

Pilot Lamp (Red)

410109500

Unavailable

27

Pilot Lamp, Engine Temperature | SUV 600

410109700

Unavailable

28

Back-Up Alarm

414792102

$143.05

29

PLASTIC NUT - Call your local BRP dealership

414805101

Unavailable

31

Not Available As Spare Part - Friction Washer

Unavailable

32

Hex. Screw M6 X 16

207161644

$0.61

33

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

34

Screw M5 X 16

M40247

Unavailable

35

Washer 5,3 mm

20008

$0.72

36

Elastic Stop Nut M5

232551414

$0.72

37

Speedometer (MPH) | Formula DLX 380. Formula DLX 500.

515175338

Unavailable

Speedometer (KMH) | Formula DLX 380. Formula DLX 500.

515175337

Unavailable

38

O-Ring

414807100

Unavailable

39

Case Holder

414806500

Unavailable

40

Washer

517258500

Unavailable

41

Elastic Stop Nut M5

232551414

$0.72

42

Speedometer Cable This part replaces M5344162.

5344162

$76.89

43

Square Pin Nska L=75Mm This part replaces M45075.

45075

$18.43

44

Washer

M5444186

Unavailable

45

Gear Unit 1:1.4 Left Op-0127-002-N0-Gu This part replaces M35021.

35021

$129.20

46

INSTRUMENTATION BULB - Call your local BRP dealership

410504200

Unavailable

47

Flat Washer

517225900

$0.17

48

Lock Washer

414806700

Unavailable
