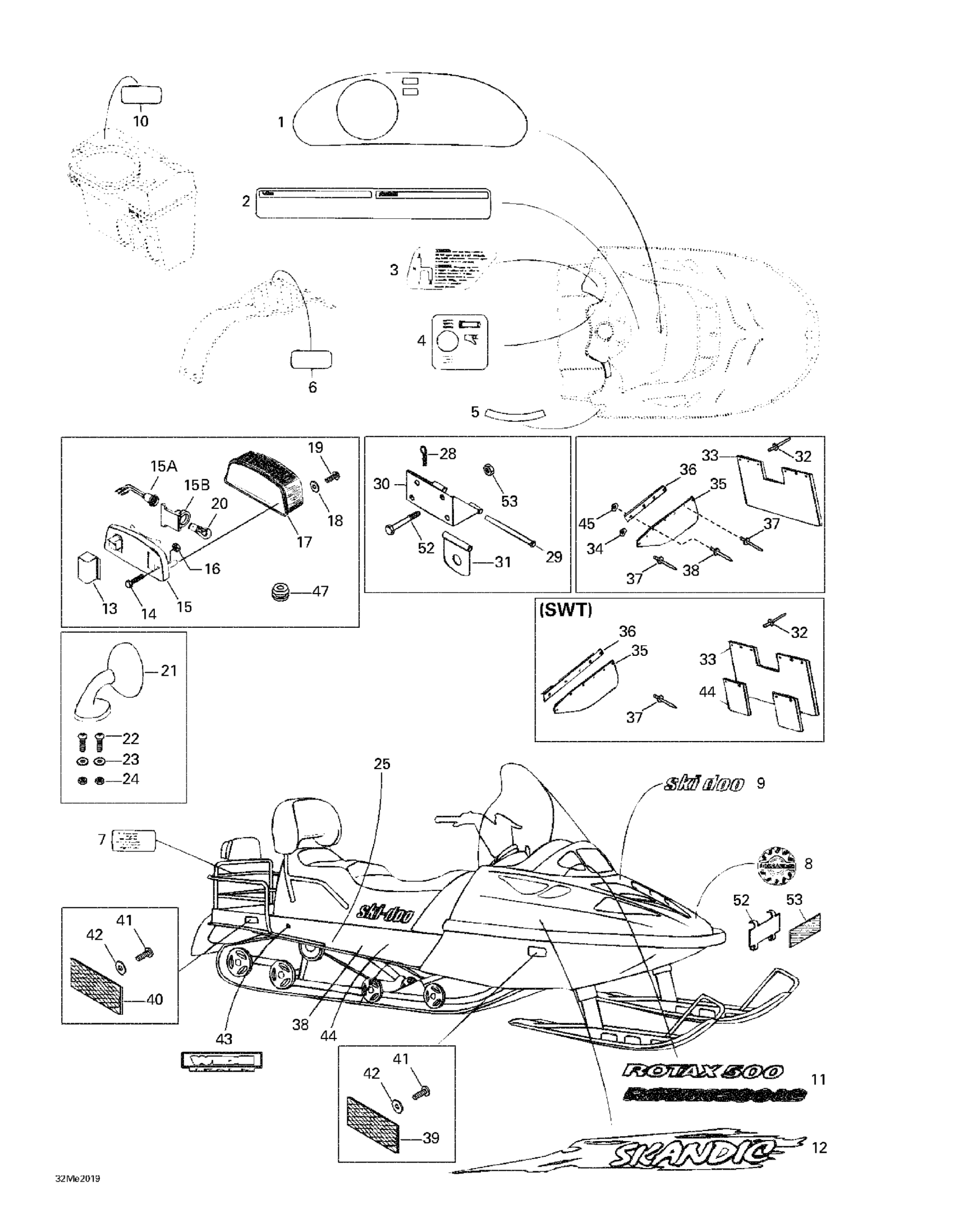

Ski-Doo Skandic Super Wide Track, 2000 Decals And Accessories Diagram

#

Description
Price

1

Dash Decal | SUV 550

418000808

Unavailable

Dash Decal

516000144

Unavailable

2

Warning Label

414995800

Unavailable

3

REVERSE DECAL - Call your local BRP dealership

516001201

Unavailable

Reverse Decal | Skandic SWT.

418001601

Unavailable

4

Heat Grip Decal | Skandic 500F. Skandic 500F (SWT).

414996100

Unavailable

5

Reflexion Decal Kit

415127624

Unavailable

6

WARNING DECAL, SECURITY BELT GUARD - Call your local BRP dealership

516002670

Unavailable

7

Instruction Label (Hitch)

414998500

Unavailable

8

BRP Logo 48mm

516008738

$12.87

9

<> Decal

516000267

Unavailable

10

CAUTION DECAL, AIR INTAKE - Call your local BRP dealership This part replaces 516001191.

516002715

Unavailable

11

<> Decal | Skandic 500.

516000021

Unavailable

<> Decal | Skandic WT LC.

516000118

Unavailable

12

Hood Decal Kit

415127625

Unavailable

13

Adaptor

M5345713

Unavailable

Adaptor | Skandic 500F (SWT).

M5443460

Unavailable

14

Hex. Screw M6 X 30

207063044

Unavailable

15

Taillamp Housing

414979400

$32.99

15A

Socket

414979410

Unavailable

15B

Rubber Damper

414979411

Unavailable

16

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

17

Lens

414513700

Unavailable

18

Washer - Call your local BRP dealership

414516400

Unavailable

19

Phillips Tapping Screw M3.9 X 25

209632540

Unavailable

20

Bulb

520000758

$7.49

21

RH MIRROR - Call your local BRP dealership

414971910

Unavailable

LH MIRROR - Call your local BRP dealership

414972010

$37.66

22

Screw M4 x 20 | Legend 380 F. Legend 550 F.

222842065

Unavailable

23

Washer

517124300

Unavailable

24

Elastic Stop Nut M4

232541414

$0.48

25

PLUG - Call your local BRP dealership

M28136

Unavailable

26

HEX. SCREW M8 X 20 - Call your local BRP dealership This part replaces M40336.

40336

Unavailable

27

Hex. Elastic Stop Nut M8

232581414

Unavailable

28

Cotter Pin

41031

$6.26

29

PIN-RETAINER - Call your local BRP dealership | North America

560309200

Unavailable

30

Hitch Bracket | Skandic WT. Skandic WT LC.

M538918

Unavailable

Fitting Plate | Model- North America This part replaces M5344151.

5344151

Unavailable

31

TONGUE WELD - Call your local BRP dealership | Model- North America This part replaces M548745.

548745

Unavailable

32

Black, Rivet

M36036

Unavailable

Black Rivet

36037

$1.48

33

Snow guard This part replaces M538629.

538629

Unavailable

Snow Guard

605354720

Unavailable

34

Washer 5,3 mm

20008

Unavailable

35

Side Snowguard This part replaces M5142828.

5142828

Unavailable

Snow Guard

M5340136

Unavailable

36

Support

M5340532

Unavailable

37

Rivet

36005

Unavailable

38

RIVET - Call your local BRP dealership

M36097

Unavailable

39

REFLECTOR, AMBER - Call your local BRP dealership

414510200

Unavailable

40

REFLECTOR, RED - Call your local BRP dealership

414510100

Unavailable

41

Screw

M40070

Unavailable

42

WASHER-LOCK SERRATED DIN.6798A - Call your local BRP dealership | Outlander T3

234451418

Unavailable

43

FRAME DECAL - Call your local BRP dealership

516000024

Unavailable

Frame Decal

516000025

Unavailable

44

Support

M5341770

Unavailable

45

Washer | Skandic WT. Skandic WT LC.

M200037

Unavailable

46

Frame | Skandic 500F.

M5144861

Unavailable

Frame | Skandic SWT.

M5145416

Unavailable

Frame | Skandic WT LC.

M5144873

Unavailable
