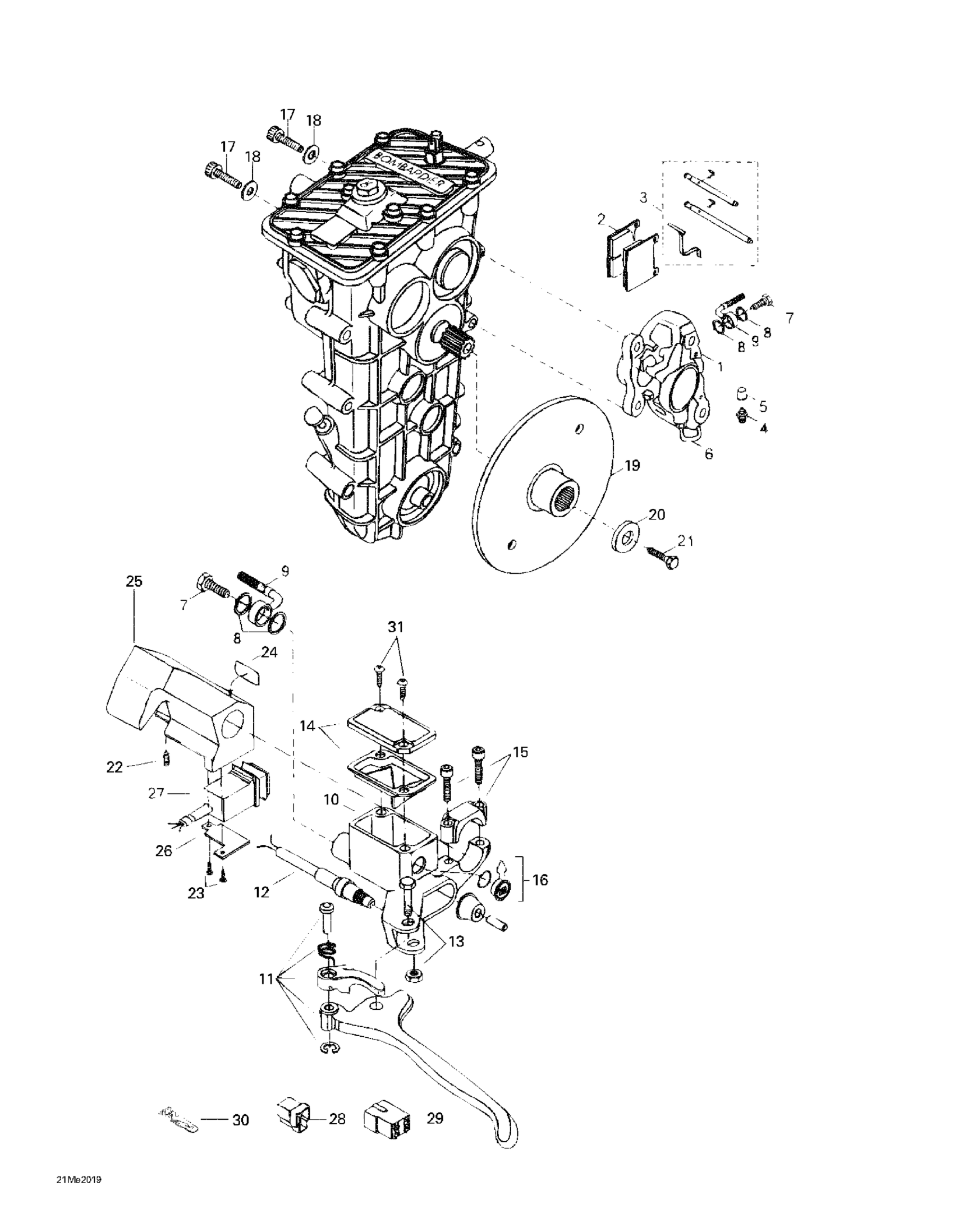

Ski-Doo Skandic Super Wide Track, 2000 Brake Diagram

#

Description
Price

1

Caliper | Includes 10 - 15.

414920000

Unavailable

2

Brake Pad Kit

415084600

Unavailable

3

KIT, PINS, RETAINERS, SPRING - Call your local BRP dealership

414990700

Unavailable

4

BLEEDER SCREW - Call your local BRP dealership

414989800

Unavailable

5

BOOT-QTS 20 - Call your local BRP dealership

414989700

Unavailable

6

RIGID TUBING - Call your local BRP dealership

414989900

Unavailable

7

Banjo Bolt

414920500

$8.49

8

Washer

414920600

Unavailable

9

HOSE - Call your local BRP dealership

507032219

Unavailable

10

Master Cylinder Kit | Includes 20 - 26. This part replaces 507032294.

415130002

Unavailable

11

LEVER - Call your local BRP dealership

507032428

Unavailable

12

Microswitch

507032366

Unavailable

13

Pin Ass'y

415030000

Unavailable

14

Cap

415029900

Unavailable

15

Clamp And Screw Kit

507032477

$23.05

16

WINDOW - Call your local BRP dealership

414990600

Unavailable

17

SOCKET HEAD SCREW M10 X 65 - Call your local BRP dealership

M40277

Unavailable

18

Lock Washer

M20015

Unavailable

19

Brake Disc

605353250

Unavailable

20

Washer

M546336

Unavailable

21

HEX. SCREW M8 X 20 - Call your local BRP dealership This part replaces M40336.

40336

Unavailable

22

Socket Set Screw M8 X 10

414440800

$4.00

23

Screw

414473200

$3.69

24

Switch Decal

415025500

Unavailable

25

DIMMER SWITCH HOUSING - Call your local BRP dealership | SWT 550

572079500

Unavailable

26

Plate | SWT 550

517283800

Unavailable

27

Dimmer Switch

515175293

Unavailable

28

Male Housing

M42036

Unavailable

29

Male Housing

M42122

Unavailable

30

Male Terminal

M42031

Unavailable

31

SCREW M4 X 12 - Call your local BRP dealership

216141260

Unavailable
