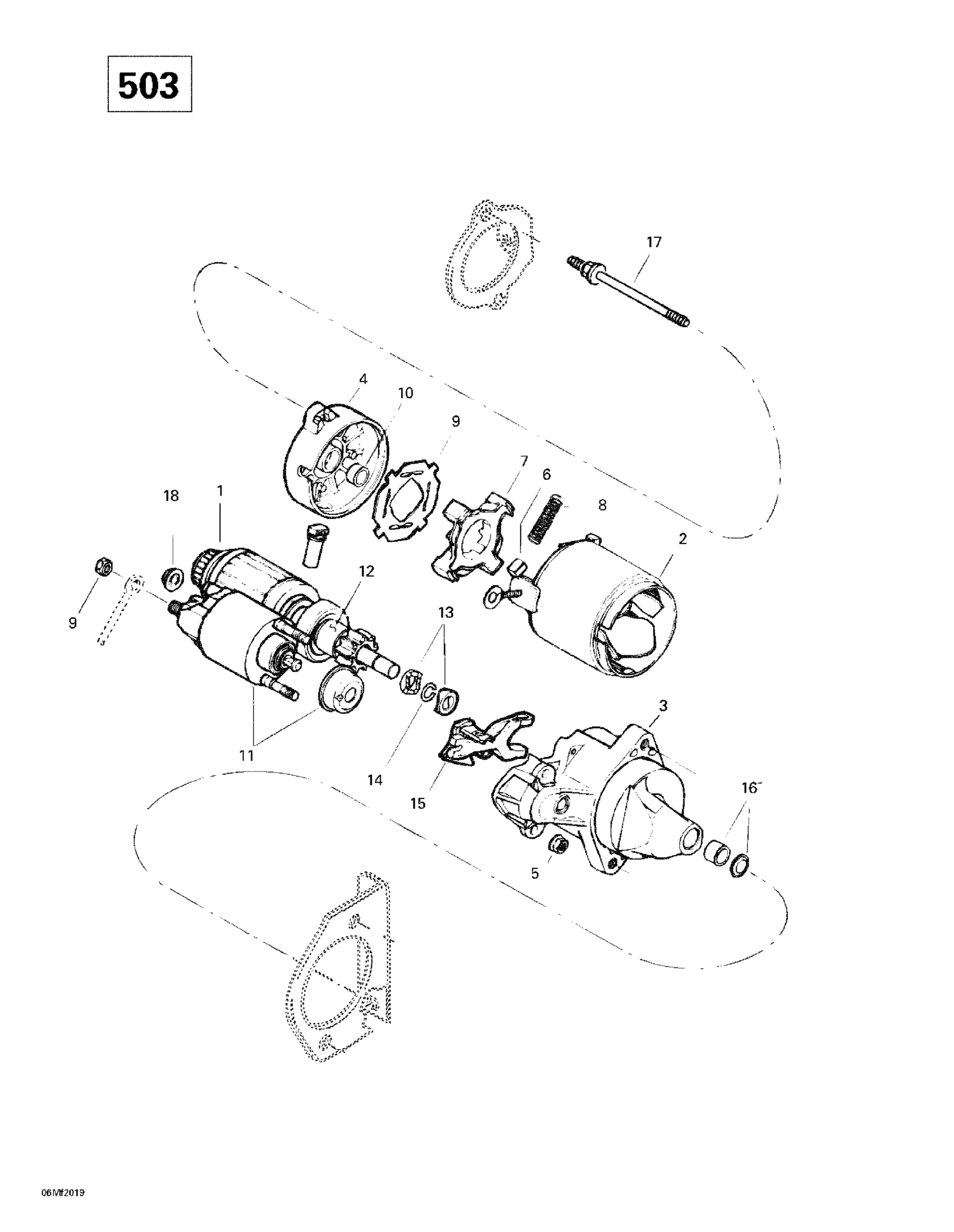

Ski-Doo Skandic Super Wide Track, 2000 Electric Starter (503) Diagram

#

Description
Price

1

ELECTRIC STARTER ASSY - Call your local BRP dealership

410212400

Unavailable

1

Armature Assy.

410210200

Unavailable

2

HOUSING STARTER - Call your local BRP dealership

410209500

$126.89

3

Housing

410210800

Unavailable

4

Not Available As Spare Part - Friction Washer

Unavailable

5

NUT - Call your local BRP dealership

410211200

$4.77

6

BRUSH - Call your local BRP dealership

410209600

Unavailable

7

BRUSH HOLDER - Call your local BRP dealership

410209700

Unavailable

8

BRUSH SPRING - Call your local BRP dealership

410209800

$1.91

9

INSULATOR - Call your local BRP dealership

410209900

Unavailable

10

BRASS BUSHING - Call your local BRP dealership

410210100

Unavailable

11

SWITCH ASSY. - Call your local BRP dealership

410210300

$194.99

12

STARTER CLUTCH - Call your local BRP dealership

410210400

$201.51

13

NUT - Call your local BRP dealership

410212500

$28.43

14

CIRCLIP - Call your local BRP dealership

410212600

$4.77

15

LEVER - Call your local BRP dealership

410210700

Unavailable

16

BRASS BUSHING - Call your local BRP dealership

410210900

$8.77

17

BOLT - Call your local BRP dealership

410212000

$10.00

18

NUT - Call your local BRP dealership

410211100

$4.77
