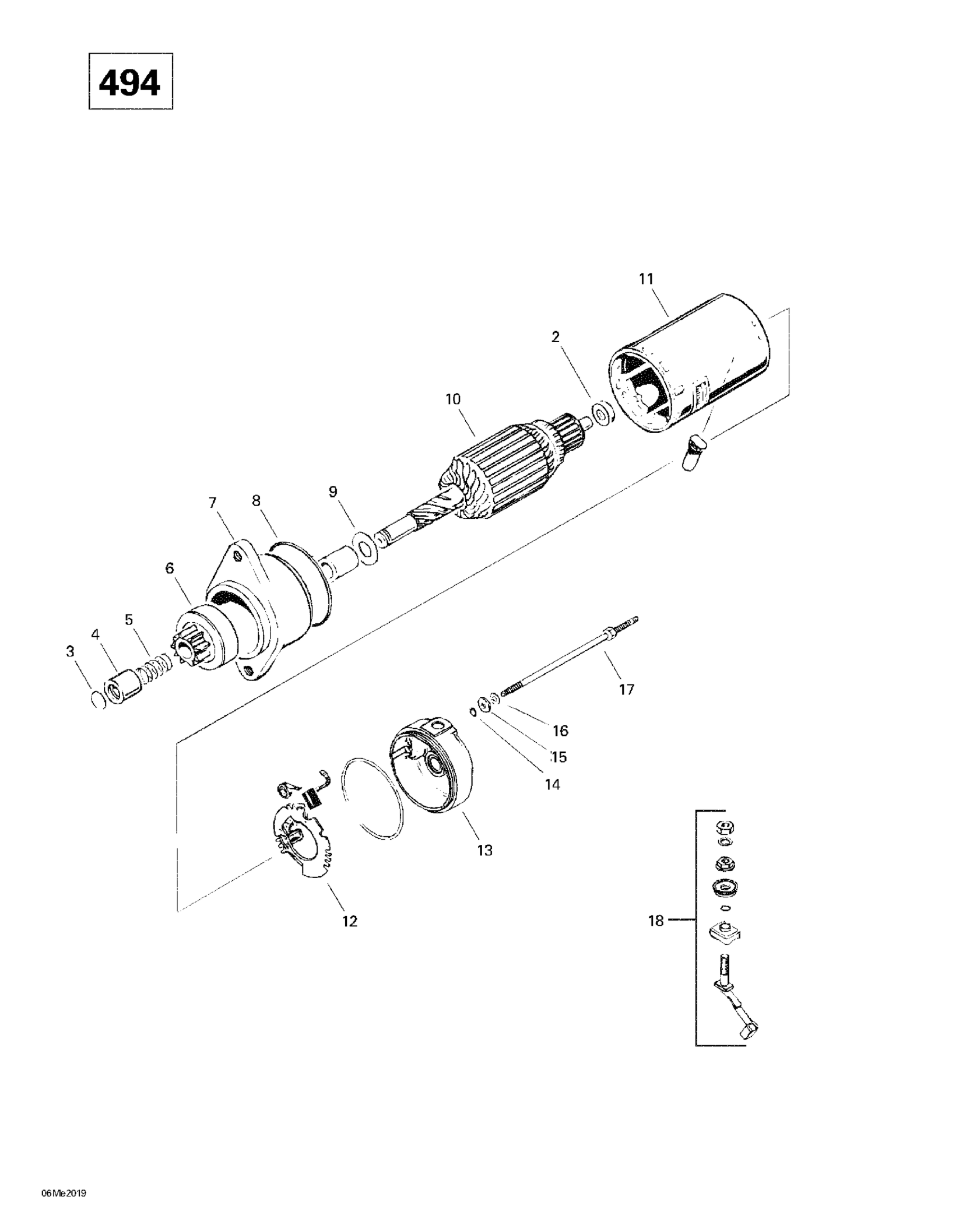

Ski-Doo Skandic Super Wide Track, 2000 Electric Starter (494) Diagram

#

Description
Price

1

Electric Starter | Includes 1 - 18. Skandic WT LC.

410207500

Unavailable

2

FLAT WASHER - Call your local BRP dealership

410204500

Unavailable

3

SNAP RING - Call your local BRP dealership

410207700

$3.42

4

STOP BUSHING - Call your local BRP dealership

410207800

$15.02

5

SPRING - Call your local BRP dealership

410207900

$9.48

6

Starter Clutch

410208000

Unavailable

7

Not Available As Spare Part - Friction Washer

Unavailable

8

O-Ring | Skandic WT LC.

278000053

Unavailable

9

Flat Washer

278000054

Unavailable

10

Not Available As Spare Part - Friction Washer

Unavailable

11

Not Available As Spare Part - Friction Washer

Unavailable

12

Brush Holder | Skandic WT LC.

410208600

Unavailable

13

Housing | Skandic WT LC.

410208700

Unavailable

14

O-RING - Call your local BRP dealership

278000060

Unavailable

15

Washer | Skandic WT LC.

278000061

Unavailable

16

Washer | Skandic WT LC.

278000062

Unavailable

17

Bolt | Skandic WT LC.

410212200

Unavailable

18

Brush Kit

410212100

$32.28
