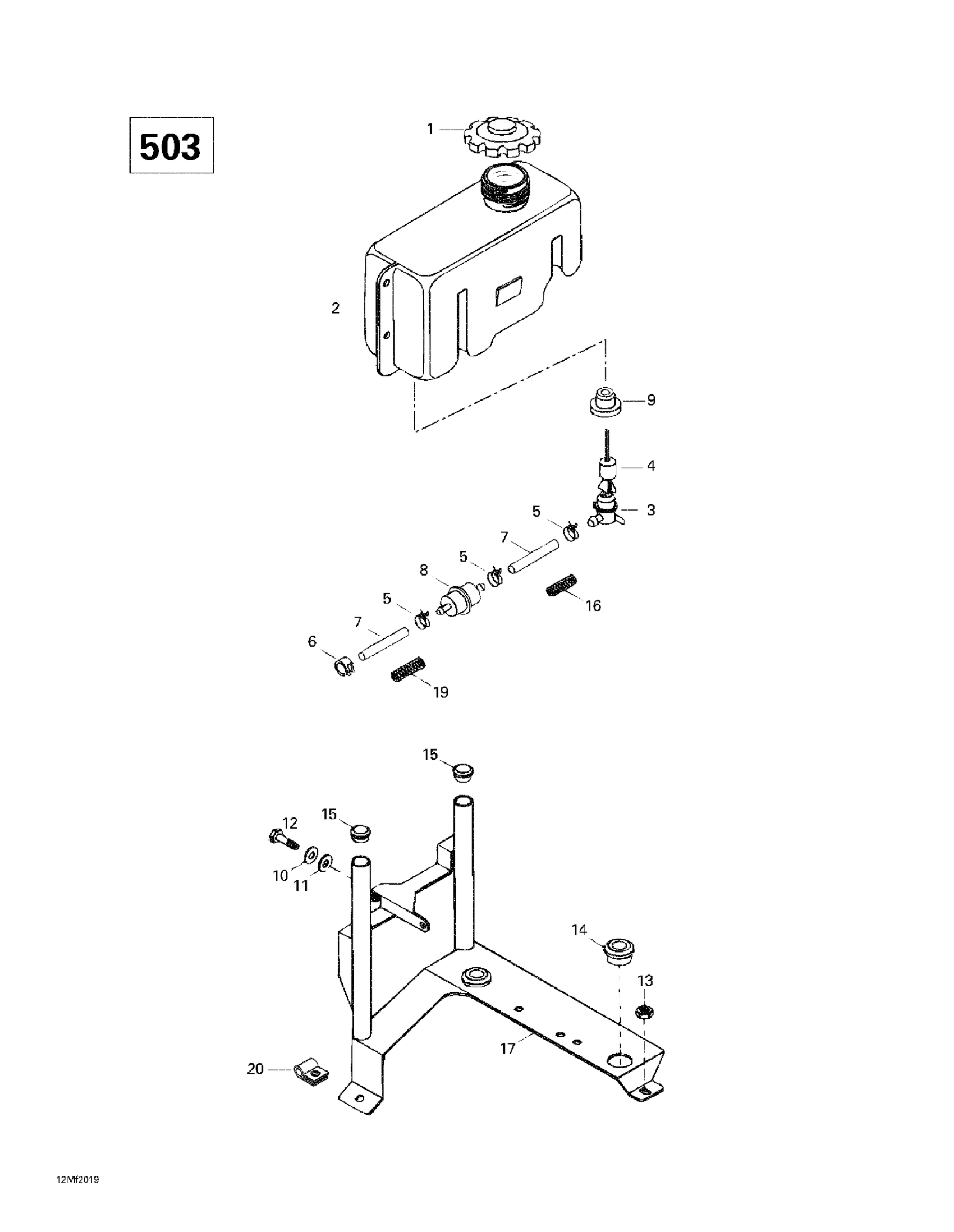

Ski-Doo Skandic Super Wide Track, 2000 Oil Tank And Support (503) Diagram

#

Description
Price

1

CAP - Call your local BRP dealership

519000044

Unavailable

2

Oil Tank

M5142700

Unavailable

3

LEVEL SWITCH - Call your local BRP dealership | Canada / U.S.A

414681800

Unavailable

4

Float

414681900

Unavailable

5

Spring Clamp

414415200

$0.81

6

Spring Clamp

414420700

$0.66

7

Polyurethane Hose, 8 Mm 3000Mm Long

219704412

$31.31

8

Filter

414536500

$3.73

9

Insulating Ring

570023000

$5.30

10

Lock Washer M6, Black

234161471

$0.51

11

Washer | Skandic 500F. Skandic 500F (SWT).

M2009

Unavailable

12

Hex. Screw M6 X 16

207161644

$0.70

13

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

14

Grommet This part replaces M28022.

28022

$13.37

15

PLUG - Call your local BRP dealership

M28136

Unavailable

16

HOUSING - Call your local BRP dealership

M28015

Unavailable

17

Support | Skandic 500F. Skandic 500F (SWT).

M5342647

Unavailable

19

SPRING - Call your local BRP dealership

M25005

Unavailable

20

CLIP - Call your local BRP dealership

M27092

Unavailable
