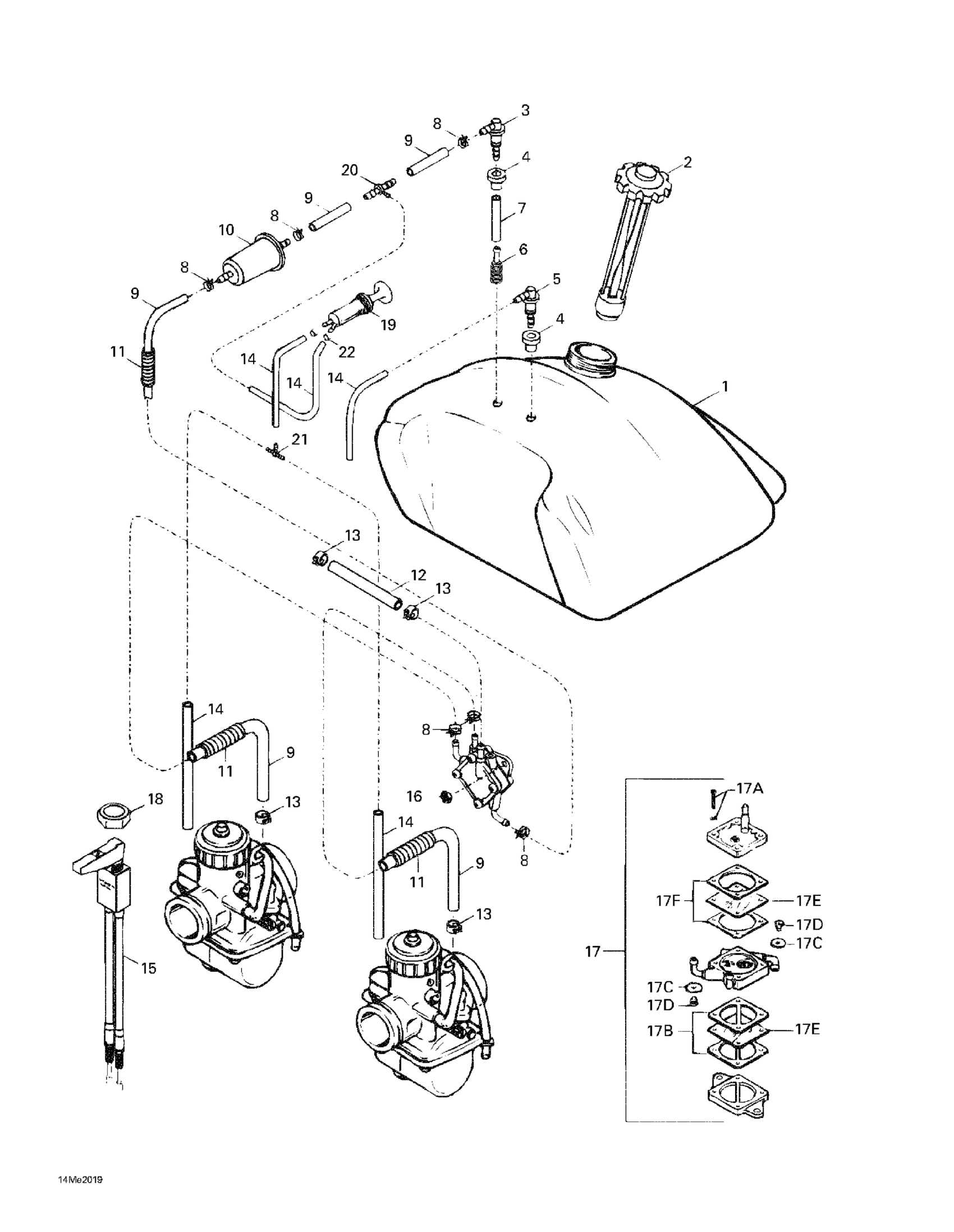

Ski-Doo Skandic Super Wide Track, 2000 Fuel System Diagram
#
Description
Price
1
Fuel Tank
M519393
Unavailable
2
Fuel Tank Cap
572161200
Unavailable
3
CONNECTOR-MALE - Call your local BRP dealership This part replaces M5341709.
5341709
Unavailable
4
Grommet
280000674
Unavailable
5
Male Connector This part replaces M533535.
533535
Unavailable
7
Was 415110000 Polyurethane Hose 5.2 mm
219704414
Unavailable
8
Spring Clamp
M27086
Unavailable
9
Hose 5/8 1000MM LONG - Call your local BRP dealership
219704397
Unavailable
10
Fuel Filter This part replaces 414363600.
605352516
Unavailable
11
HOUSING - Call your local BRP dealership
M28012
Unavailable
12
Polyurethane Hose 10000Mm Long
219704410
Unavailable
13
Spring Clamp
414420700
Unavailable
14
HOSE - Call your local BRP dealership
M39035
Unavailable
15
Choke This part replaces M535482.
535482
Unavailable
16
Elastic Stop Nut M6
232561414
Unavailable
17
Fuel Pump | Includes 17 - 23. Skandic 500F. Skandic 500F (SWT).
M19058
Unavailable
17A
Screw | Skandic 500F. Skandic 500F (SWT).
404131600
Unavailable
17D
VALVE - Call your local BRP dealership | Skandic 500F. Skandic 500F (SWT).
404900300
Unavailable
17F
GASKET - Call your local BRP dealership
404902400
Unavailable
18
NUT-PLASTIC - Call your local BRP dealership
512059364
Unavailable
19
Primer
415060500
Unavailable
20
T-Fitting
414222400
Unavailable
21
T Fitting
M21067
Unavailable
22
Not Available As Spare Part - Friction Washer
Unavailable
