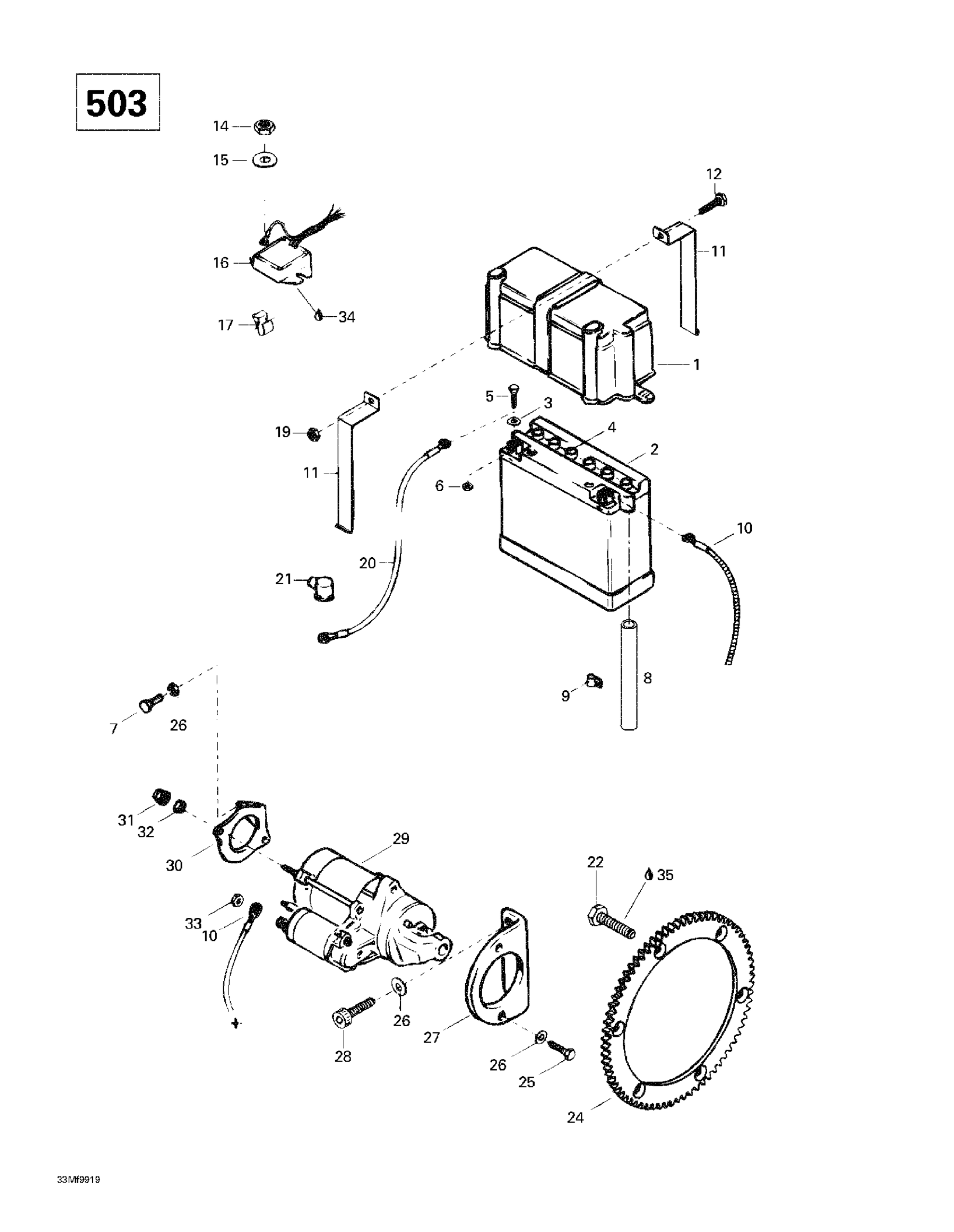

Ski-Doo Skandic Super Wide Track, 1999 Electrical System (503) Diagram

#

Description
Price

1

Battery Cover

570022000

Unavailable

2

Battery | Includes 4 - 8.

410301100

Unavailable

3

FLAT WASHER - Call your local BRP dealership

391302100

Unavailable

4

Battery Cap

410300800

Unavailable

5

Hex. Screw M6 X 16

207161644

$1.49

6

Hex. Nut M6

232061414

$1.49

7

Hex. Screw M8 X 16

M40066

Unavailable

8

Tube

M39055

Unavailable

9

Wire Holder | Skandic 500F. Skandic 500F (SWT).

M27025

Unavailable

10

BATTERY WIRE - Call your local BRP dealership

605349434

Unavailable

11

Steel Strip

M5442811

Unavailable

12

Hex. Screw M6 X 25

207162544

$1.49

14

Elastic Stop Nut M6

232561414

$1.78

15

Flat Washer 6 mm

234062410

$1.49

16

VOLTAGE REGULATOR - Call your local BRP dealership | Skandic 500F. Skandic 500F (SWT).

515163900

Unavailable

17

Clip

414227300

$1.69

19

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.49

20

Ground Wire

M549887

Unavailable

21

Protection Cap

570151000

$21.99

22

Hex. Screw M8 X 16

236281684

$4.19

24

Ring Gear (86 tooth) | Skandic 500F. Skandic 500F (SWT).

415043100

Unavailable

25

Socket Head Screw M8 X 20

205082044

$1.49

26

Lock Washer 8 mm

234181401

$1.49

27

STARTER BRACKET, P.T.O. - Call your local BRP dealership

420951415

Unavailable

28

Socket Head Screw M8 X 20

205082044

$1.49

29

ELECTRIC STARTER ASSY - Call your local BRP dealership

410212400

Unavailable

30

STARTER BRACKET, M.A.G. - Call your local BRP dealership

420951426

Unavailable

31

Elastic Stop Nut M5

232551414

$1.49

32

Washer 5,3 mm

20008

$1.49

33

NUT - Call your local BRP dealership

M33003

Unavailable

34

Grease Tube Lmz, 400 G

413707500

Unavailable

35

Loctite 271, 10 ml

293800005

$26.99
