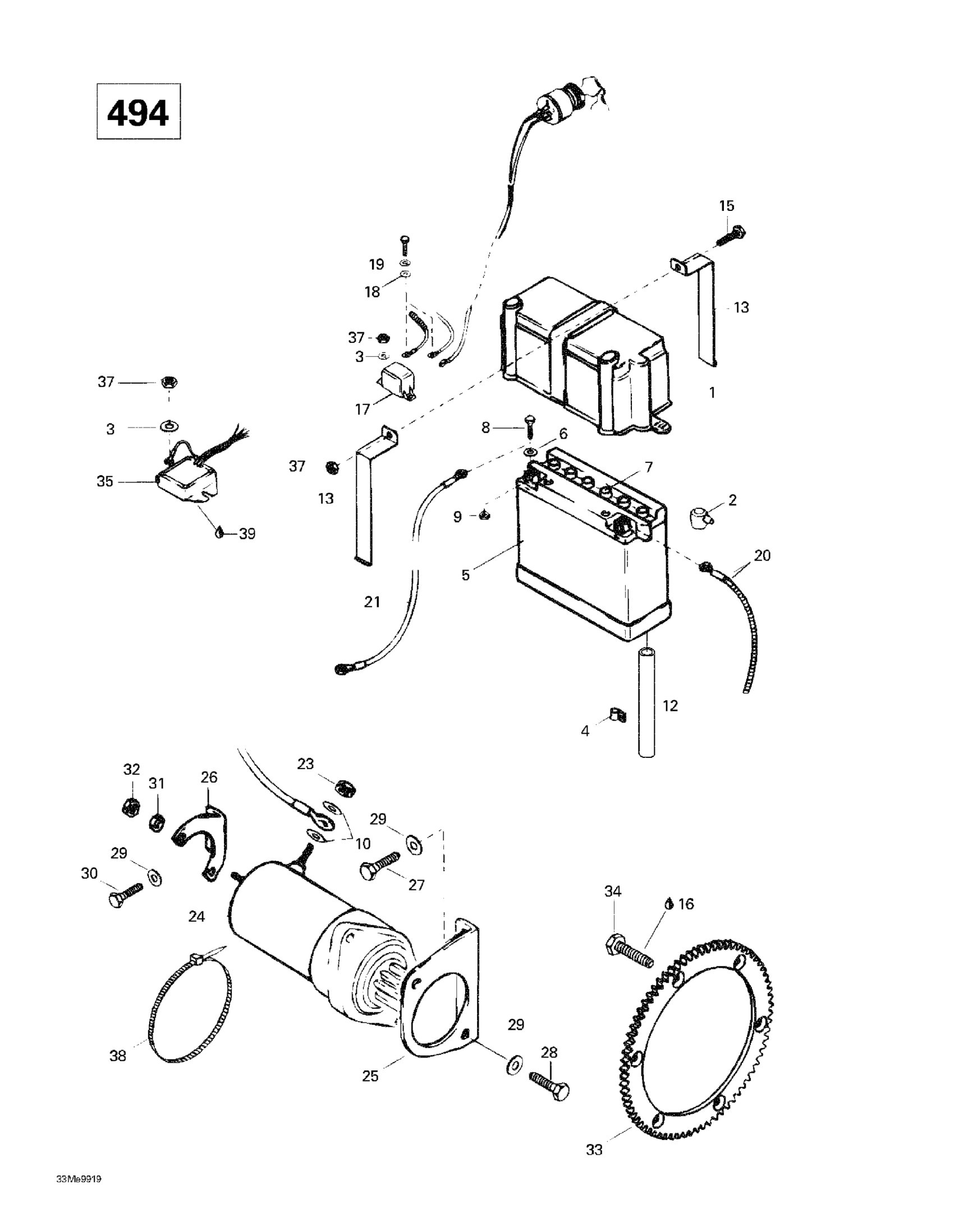

Ski-Doo Skandic Super Wide Track, 1999 Electrical System (494) Diagram

#

Description
Price

1

Battery Cover

570022000

Unavailable

2

Protection Cap

570151000

$18.43

3

Flat Washer 6 mm

234061410

Unavailable

4

Wire Holder | Skandic 500F. Skandic 500F (SWT).

M27025

Unavailable

5

Battery | Includes 4 - 8.

410301100

Unavailable

6

FLAT WASHER - Call your local BRP dealership

391302100

Unavailable

7

Battery Cap

410300800

Unavailable

8

Hex. Screw M6 X 16

207161644

Unavailable

9

Hex. Nut M6

232061414

$0.44

10

Flat Washer 6 mm

234062410

$0.64

12

Tube

M39055

Unavailable

13

Steel Strip

M5442811

Unavailable

15

Hex. Screw M6 X 25

207162544

Unavailable

16

Loctite 271, 10 ml

293800005

Unavailable

17

Starter Relay | Skandic WT LC.

420992817

Unavailable

18

Washer 5,3 mm

20008

Unavailable

19

Lock Washer

M20013

Unavailable

20

Battery Wire | Skandic WT LC.

M5440815

Unavailable

21

Ground Wire | Skandic WT LC.

M5443514

Unavailable

23

Elastic Stop Nut M6

232561414

Unavailable

24

Electric Starter | Includes 1 - 18. Skandic WT LC.

410207500

Unavailable

25

Starter Bracket (PTO) | Skandic WT LC.

M539431

Unavailable

26

Starter Bracket (MAG) | Skandic WT LC.

M539432

Unavailable

27

Socket Head Screw M8 X 20

205082044

$1.09

28

Hex. Screw M8 X 20

207182044

$0.61

29

Lock Washer 8 mm

234181401

Unavailable

30

Hex. Screw M8 x 16

207181644

$0.87

31

Flat Washer M5

234051410

Unavailable

32

Elastic Stop Nut M5

232551414

Unavailable

33

Ring Gear (86 tooth) | Skandic 500F. Skandic 500F (SWT).

415043100

Unavailable

34

Hex. Screw M8 X 16

236281684

Unavailable

35

VOLTAGE REGULATOR - Call your local BRP dealership | Skandic 500F. Skandic 500F (SWT).

515163900

Unavailable

37

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

38

Tie-Rap 180 mm

414115200

$0.09

39

Grease Tube Lmz, 400 G

413707500

Unavailable
