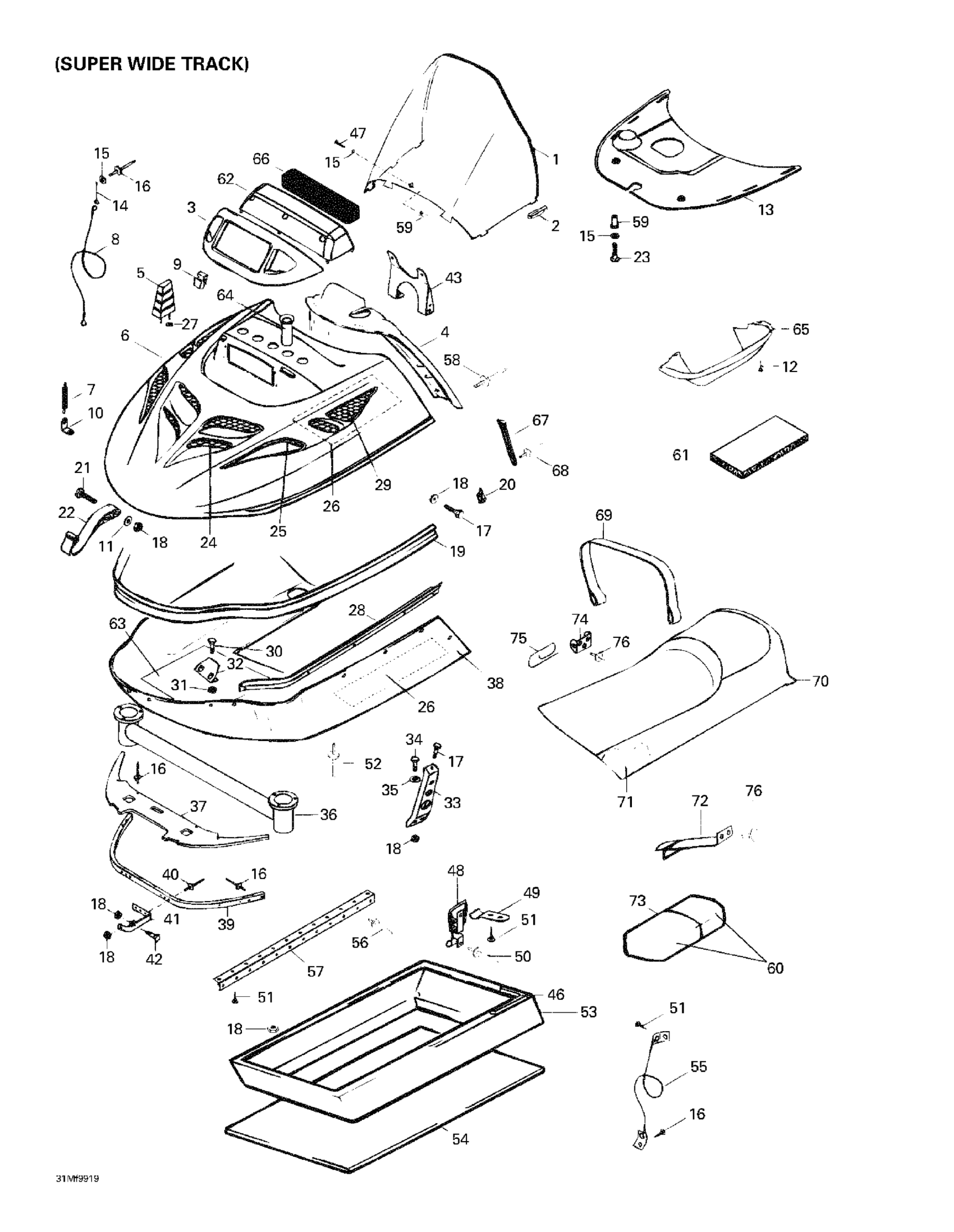

Ski-Doo Skandic Super Wide Track, 1999 Cab, Console, Seat 2 Diagram

#

Description
Price

1

Windshield | Skandic 500F (SWT).

M5343754

Unavailable

2

Windshield Latch

570023800

Unavailable

3

Lamp Moulding

572079200

Unavailable

4

Dash | Skandic 500F.

M5341435

Unavailable

5

Windshield Support

M5443136

Unavailable

6

Hood | Skandic Wide Track.

M5144346

Unavailable

7

Spring This part replaces M5442675.

5442675

Unavailable

8

Retainer Cable | SUV 600

M5342674

Unavailable

9

Clip

414227300

$1.45

10

SPRING PLATE - Call your local BRP dealership

M5443123

Unavailable

11

Flat Washer 6 mm

234062410

$0.64

12

Black, Dart

414644300

$0.78

13

Air Duct

M5142622

Unavailable

14

Cable Keeper

M5442870

Unavailable

15

Washer 5,3 mm

20008

Unavailable

16

Rivet

36005

Unavailable

17

Vis *Screw

M40078

Unavailable

18

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

19

Front Bumper

M5242798

Unavailable

20

RH Cap

M549096R

Unavailable

LH Cap

M549096L

Unavailable

21

SCREW - Call your local BRP dealership

M40193

Unavailable

22

Hinge This part replaces M5343075.

5343075

Unavailable

23

Screw M5 X 30

M40808

Unavailable

24

Front Grill

M5142669

Unavailable

25

RH Lower Grill

M5242672

Unavailable

LH Lower Grill

M5342673

Unavailable

26

Reflecting Sheet

M5443578

Unavailable

27

Safety Washer

36084

Unavailable

28

LH Hood Guide

M5242803

Unavailable

RH Hood Guide

M5242804

Unavailable

29

RH UPPER GRILL - Call your local BRP dealership

M5242671

Unavailable

LH Upper Grill | SUV 550

M5242670

Unavailable

30

Screw M5 X 16

M40247

Unavailable

31

NUT M5 - Call your local BRP dealership

M33062

Unavailable

32

Hood Guide

M5443217

Unavailable

33

SUPP.-BUMPER - Call your local BRP dealership

M5342509

Unavailable

34

SCREW - Call your local BRP dealership

M40332

Unavailable

35

Lock Washer M6, Black

234161471

$0.52

36

Face Bar | Skandic Wide Track LC.

M5244253

Unavailable

37

COVER - Call your local BRP dealership

605252352

Unavailable

38

Bottom Pan | Skandic SWT.

M5143758

Unavailable

39

SUPPORT-FRONT - Call your local BRP dealership | Includes 6 to 8 This part replaces M5246120.

5246120

Unavailable

40

Rivet

M36489

Unavailable

41

Hinge

M5342234

Unavailable

Hinge

M5342345

Unavailable

42

SCREW M6 X 45 - Call your local BRP dealership

M40084

Unavailable

43

Support | Skandic 500F. Skandic 600.

M5343120

Unavailable

46

Gasket Tape | Skandic 500F (SWT).

M39057

Unavailable

47

Screw M5 X 30

M40358

Unavailable

48

Lock | Skandic SWT.

M21138

Unavailable

49

Counter Spring | Skandic SWT.

M5442236

Unavailable

50

RIVET - Call your local BRP dealership

M36002

Unavailable

51

Screw | Skandic 500F (SWT).

M40191

Unavailable

52

Black, Rivet

M36036

Unavailable

53

Seat Base | Skandic SWT.

M5243102

Unavailable

54

Cushion | Skandic SWT.

M5340529

Unavailable

55

Seat Retainer Cable

293750070

$10.23

56

Black, Rivet

M36036

Unavailable

57

Hinge | Skandic SWT.

M5340913

Unavailable

58

Black, Rivet

M36036

Unavailable

59

NUT M5 - Call your local BRP dealership

250100018

Unavailable

60

TOOLS BOX - Call your local BRP dealership

708200043

Unavailable

61

Acoustic Foam

414631900

Unavailable

62

Intake Cover

M5142624

Unavailable

63

Reflection Sheet | Skandic Wide Track. Skandic Wide Track LC.

M5343579

Unavailable

64

INLET TUBE - Call your local BRP dealership This part replaces M5444445.

5444445

Unavailable

65

Air Duct | Skandic 500F. Skandic 500F (SWT).

M5144412

Unavailable

66

Filter

M5343135

Unavailable

67

Hood Latch

570027100

Unavailable

68

Black Rivet

36037

$1.48

69

Seat Belt

M538856

Unavailable

70

Seat Cover | Skandic Super Wide Track.

M5344380

Unavailable

71

Seat Foam | Skandic Super Wide Track.

M5442008

Unavailable

72

Spring

M539455

Unavailable

73

Tool Kit

529027900

Unavailable

74

Seat Belt Latch

M548824

Unavailable

75

Spring This part replaces M548834.

548834

Unavailable

76

Rivet

36108

$1.85
