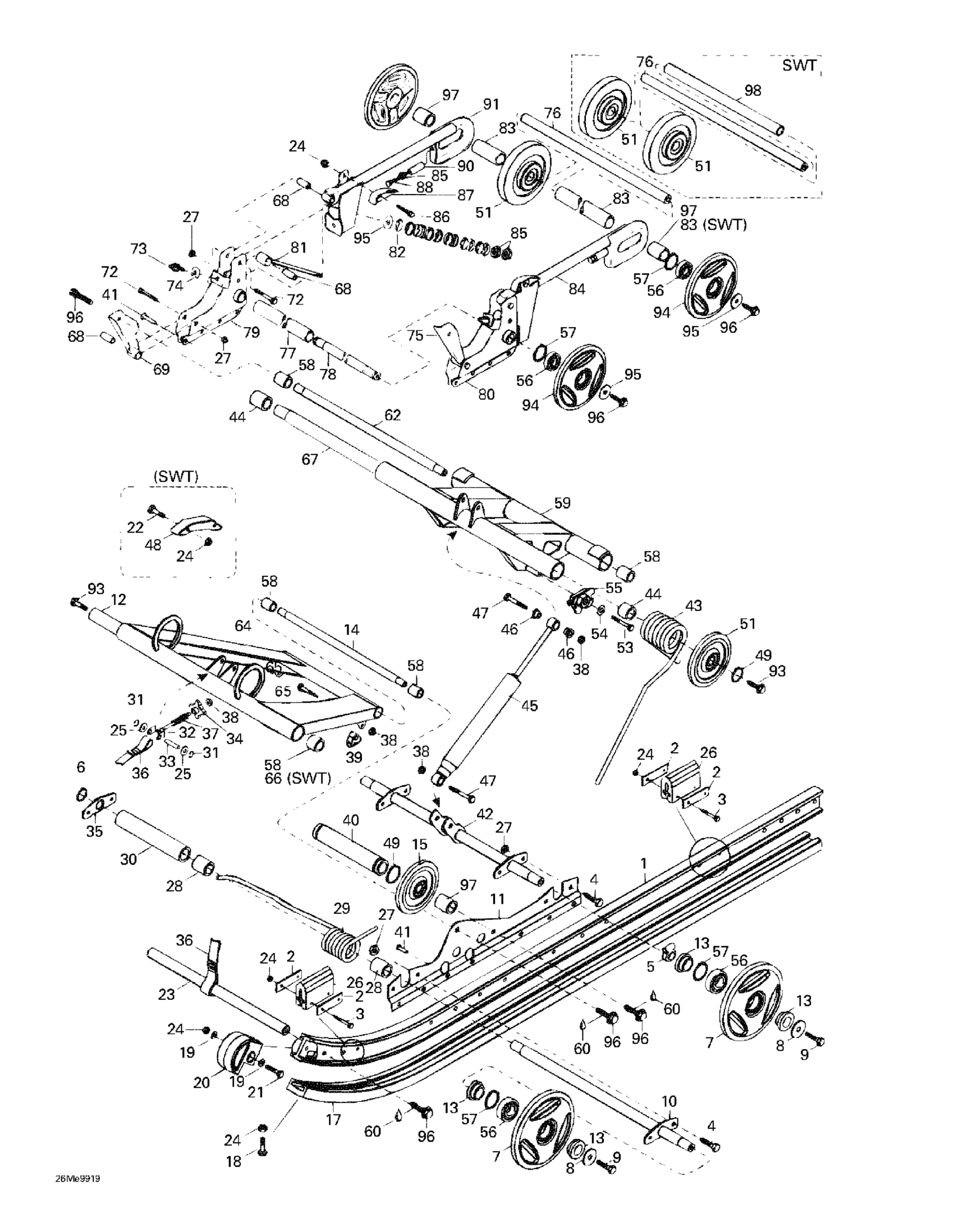

Ski-Doo Skandic Super Wide Track, 1999 Rear Suspension Diagram

#

Description
Price

1

RH Runner Ass’Y | Includes 1 to 5

M5142866

Unavailable

LH RUNNER ASS?Y - Call your local BRP dealership | Includes 1 to 5

M5142865

Unavailable

2

Washer

M548387

Unavailable

3

Hex. Screw M6 X 40

207064044

$1.48

4

Hex. Screw M8 x 16

207181644

$0.87

5

Spring Support

M548804

Unavailable

SPRING SUPPORT - Call your local BRP dealership

M5442112

Unavailable

6

Circlip 20X1.75 DIN471 This part replaces M31007.

293370056

Unavailable

7

Wheel 135 | Includes 18 to 19

503190797

Unavailable

8

Flat Washer 8 mm

234082410

$1.11

9

HEX. SCREW M8 X 20 - Call your local BRP dealership This part replaces M40336.

40336

Unavailable

10

Axle

M539653

Unavailable

11

RH Support

M538794

Unavailable

LH Support

M538793

Unavailable

12

Bogie Shaft This part replaces M542793.

542793

Unavailable

Boggie Shaft This part replaces M542794.

542794

Unavailable

13

Cushion

503189534

Unavailable

14

Shaft This part replaces M549695.

549695

Unavailable

15

Wheel 135

503191029

Unavailable

16

Ball Bearing

293350115

Unavailable

17

Runner Shoe

M549582

Unavailable

18

Hex. Screw M6 x 20

207162144

Unavailable

19

Flat Washer 6 mm

234061410

Unavailable

20

Runner Protector

605348954

Unavailable

21

Hex. Screw M6 X 25

207162544

Unavailable

22

BOLT CARRIAGE DIN.603 - Call your local BRP dealership This part replaces M40064.

207764044

Unavailable

23

Cross Shaft

M549718

Unavailable

24

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

25

Flat Washer 10 mm

234001410

Unavailable

26

RUBBER STOPPER - Call your local BRP dealership

570023100

Unavailable

27

Hex. Elastic Stop Nut M8

232581414

Unavailable

28

Sleeve

M548841

Unavailable

29

Spring L.H. This part replaces M5241177.

5241177

Unavailable

Spring R.H. This part replaces M5241178.

5241178

Unavailable

Spring This part replaces M538797.

538797

Unavailable

Spring R.H. This part replaces M538798.

538798

Unavailable

30

Sleeve

M5440313

Unavailable

31

Circlip

M41035

Unavailable

32

Bolt-Eye Adjuster

M5441643

Unavailable

33

Pin

M5441645

Unavailable

34

ADJUSTER KNOB - Call your local BRP dealership

572034000

Unavailable

35

Plate Support

M548469

Unavailable

36

STOPPER STRAP - Call your local BRP dealership This part replaces M5442604.

5442604

Unavailable

37

SPRING - Call your local BRP dealership

414460600

$5.58

38

Elastic Locking Nut M10 X 1.5

233601416

$1.68

39

Spring Roller This part replaces M548799.

548799

Unavailable

40

Support Shaft

M549680

Unavailable

41

RIVET - Call your local BRP dealership

M544212

Unavailable

42

SHAFT - Call your local BRP dealership This part replaces M5345454.

5345454

Unavailable

43

Spring L.H. This part replaces M538805.

538805

Unavailable

Spring R.H. This part replaces M5342228.

5342228

Unavailable

Spring R.H. This part replaces M538806.

538806

Unavailable

Spring L.H. This part replaces M5342229.

5342229

Unavailable

44

Bearing This part replaces M31023.

31023

Unavailable

45

SHOCK - Call your local BRP dealership This part replaces M23016.

23133

Unavailable

46

Shock Spacer - Call your local BRP dealership This part replaces M544417.

544417

Unavailable

47

Hex. Screw M10 X 1.5 X 50

207005044

Unavailable

48

Sliding Pad

503192731

Unavailable

49

Retaining Ring 25X2 Din471(1=10Pcs) This part replaces M31001.

31001

Unavailable

51

Wheel 165" | Includes 670 to 670b

503194127

$49.97

52

Ball Bearing

293350115

Unavailable

53

HEX. SCREW M6 X 10 - Call your local BRP dealership

207161044

Unavailable

54

Flat Washer 6 mm

234061410

Unavailable

55

LH ADJUST CAM - Call your local BRP dealership

572030800

Unavailable

RH ADJUST CAM - Call your local BRP dealership

572030900

Unavailable

56

Ball Bearing

293350115

Unavailable

57

Retaining Ring (1=10Pcs) This part replaces M31002.

31002

Unavailable

58

Shaft Sleeve This part replaces M542770.

542770

Unavailable

59

Reararm - Call your local BRP dealership This part replaces M5343493.

5343493

Unavailable

Bras Arr*Rear Arm This part replaces M5348213.

5348213

Unavailable

60

Loctite 271, 10 ml

293800005

Unavailable

62

Swing shaft - Call your local BRP dealership This part replaces M549656.

549656

Unavailable

64

Front Arm Welded | Skandic WT. Skandic WT LC.

M5242657

Unavailable

ARM-FRONT WELD - Call your local BRP dealership

M5242808

Unavailable

65

Hex. Screw M10 X 40

207004044

$4.65

66

Plastic Bushing This part replaces M541528.

541528

Unavailable

67

Shaft This part replaces M5343492.

5343492

Unavailable

REAR ARM SHAFT - Call your local BRP dealership This part replaces M5340577.

5340577

Unavailable

68

Spacer This part replaces M545758.

545758

Unavailable

69

Crank Arm R.H. This part replaces M5440350.

5440350

Unavailable

72

Hex. Screw M8 X 45

207084544

Unavailable

73

Rubber Stopper - Call your local BRP dealership This part replaces M535455.

535455

Unavailable

74

Adjustment Plate This part replaces M5440645.

5440645

Unavailable

75

Crank Arm Lh This part replaces M5440349.

5440349

Unavailable

76

SHAFT - Call your local BRP dealership

M5343284

Unavailable

Axe *Shaft

M5341979

Unavailable

77

Sleeve

M541815

Unavailable

78

Axle This part replaces M541816.

541816

Unavailable

79

Support For Rearaxle Lh This part replaces M539672.

539672

Unavailable

80

Support For Rearaxle Rh This part replaces M539673.

539673

Unavailable

81

BOLT-EYE ADJUSTER - Call your local BRP dealership This part replaces M5440377.

5440377

Unavailable

82

Cup Spring This part replaces M25004.

25004

Unavailable

83

SLEEVE - Call your local BRP dealership

M5443285

Unavailable

Spacer This part replaces M5440422.

5440422

Unavailable

84

EXTENSION TUBE LH - Call your local BRP dealership

605251783

Unavailable

85

Hex. Nut M10 X 1.5

232006414

$1.11

86

Hex. Screw M6 X 20 | XT Models

207162044

$0.62

87

Protector

M548262

Unavailable

88

SCREW - Call your local BRP dealership

M40239

Unavailable

90

Spacer - Call your local BRP dealership This part replaces M546668.

546668

Unavailable

91

EXTENSION TUBE RH - Call your local BRP dealership

605251784

Unavailable

93

Hex Sc. M10x 30 BN73 m8.8 MUP(1=10pcs) - Call your local BRP dealership This part replaces M40314.

40314

$2.94

94

BOND WHEEL 165 - Call your local BRP dealership

570066722

Unavailable

95

Flat Washer 10 mm This part replaces M20011.

234002410

Unavailable

96

Hex Sc. M10X 30 Bn73 M8.8 Zne(1=10Pcs) This part replaces M40335.

40335

$3.11

97

Sleeve

M546577

Unavailable

98

Sleeve

M5441980

Unavailable
