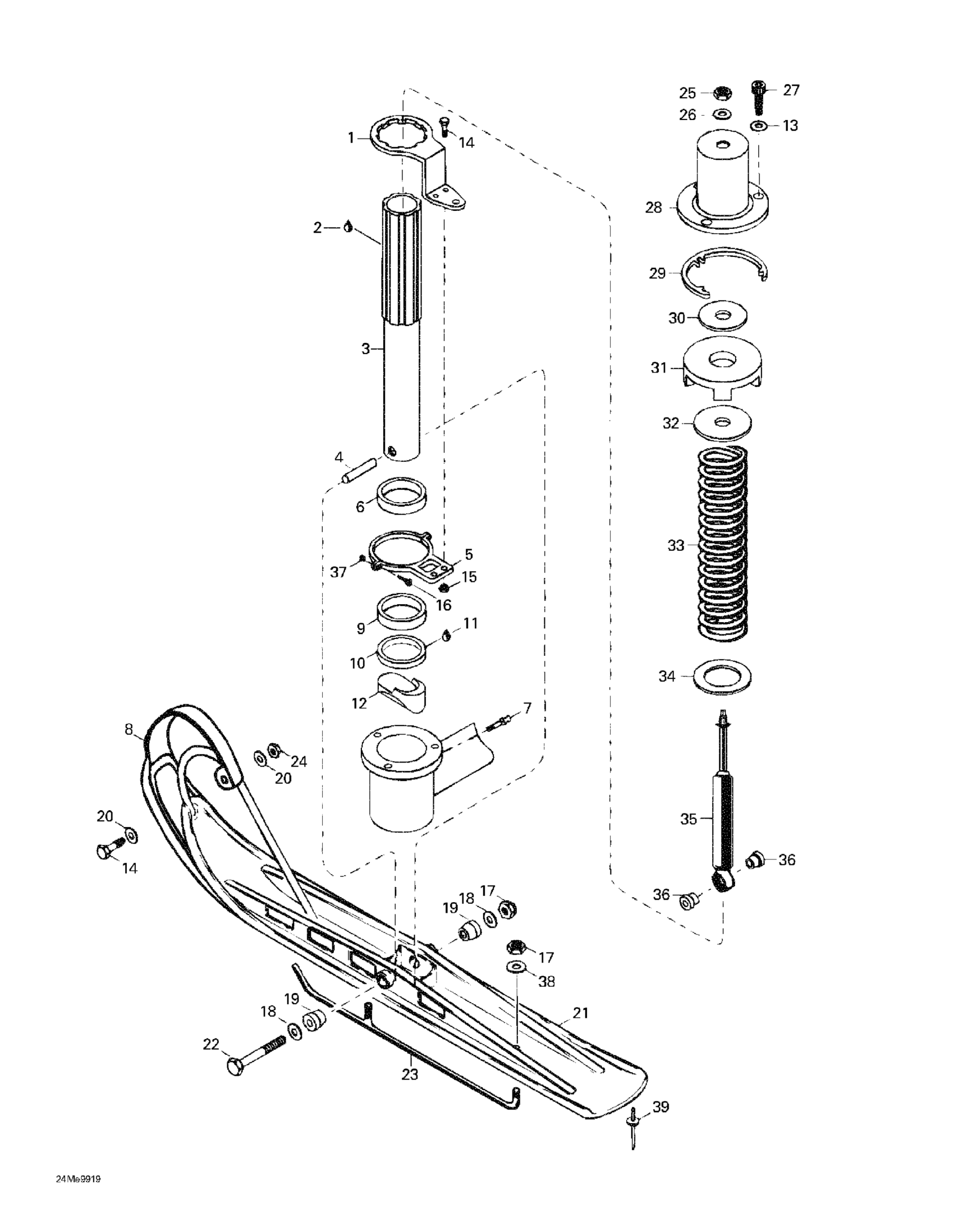

Ski-Doo Skandic Super Wide Track, 1999 Front Suspension And Ski Diagram

#

Description
Price

1

STEERING ARM - Call your local BRP dealership

M5244182

Unavailable

2

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable

3

Skileg 8 GR - Call your local BRP dealership This part replaces M5245362.

5245362

Unavailable

4

Ski Cushion | SWT, WTLC This part replaces M549716.

549716

Unavailable

5

Support Ass'Y This part replaces M5344180.

619380015

Unavailable

6

Upper Cushion

414803100

Unavailable

7

Grease Fitting M6 x 1,00(1=10pcs) - Call your local BRP dealership This part replaces M34011.

34011

Unavailable

8

Ski Liner 200 mm | SWT, WTLC

M5144415

Unavailable

9

Lower Cushion

414803200

Unavailable

10

Seal - Call your local BRP dealership This part replaces M316373.

316373

Unavailable

11

Loctite 243, 10 ml

293800060

$20.77

12

STOPPER - Call your local BRP dealership | SWT, WTLC

M5341750

Unavailable

13

Lock Washer 8 mm

234181401

Unavailable

14

Hex. Screw M6 X 25

207162544

Unavailable

15

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

16

Screw

M40146

Unavailable

17

Elastic Locking Nut M10 X 1.5

233601416

$1.68

18

WASHER-BLACK - Call your local BRP dealership

M20012

Unavailable

19

Cone Rubber | SWT, WTLC This part replaces M547543.

547543

Unavailable

20

Flat Washer 6 mm

234062410

$0.64

21

Welded Ski

M5241710

Unavailable

22

Hex. Screw M10 X 125 | SWT, WTLC

M40354

Unavailable

23

Carbide Ski Runner | SWT, WTLC

M5344021

Unavailable

24

Elastic Stop Nut M6

232561414

Unavailable

25

Hex. Nut M10 X 1.5

232006414

$1.11

26

Flat Washer 10 mm

234001410

Unavailable

27

Socket Head Screw M8 X 20

205082044

$1.09

28

PAINTED COVER - Call your local BRP dealership

605249284

Unavailable

29

SPACER - Call your local BRP dealership

503145600

$14.28

30

Absorberfibber washer - Call your local BRP dealership

605455680

Unavailable

31

Stopper

570025800

Unavailable

32

Absorberfibber washer - Call your local BRP dealership

605455680

Unavailable

33

Spring This part replaces M5241330.

5241330

Unavailable

34

Washer This part replaces M549493.

549493

Unavailable

35

Shock

M23018

Unavailable

36

Cushion

572034500

Unavailable

37

Elastic Stop Nut M4

232541414

$0.48

38

Flat Washer 10 mm

234001410

Unavailable

39

Rivet | SWT, WTLC

M36070

Unavailable
