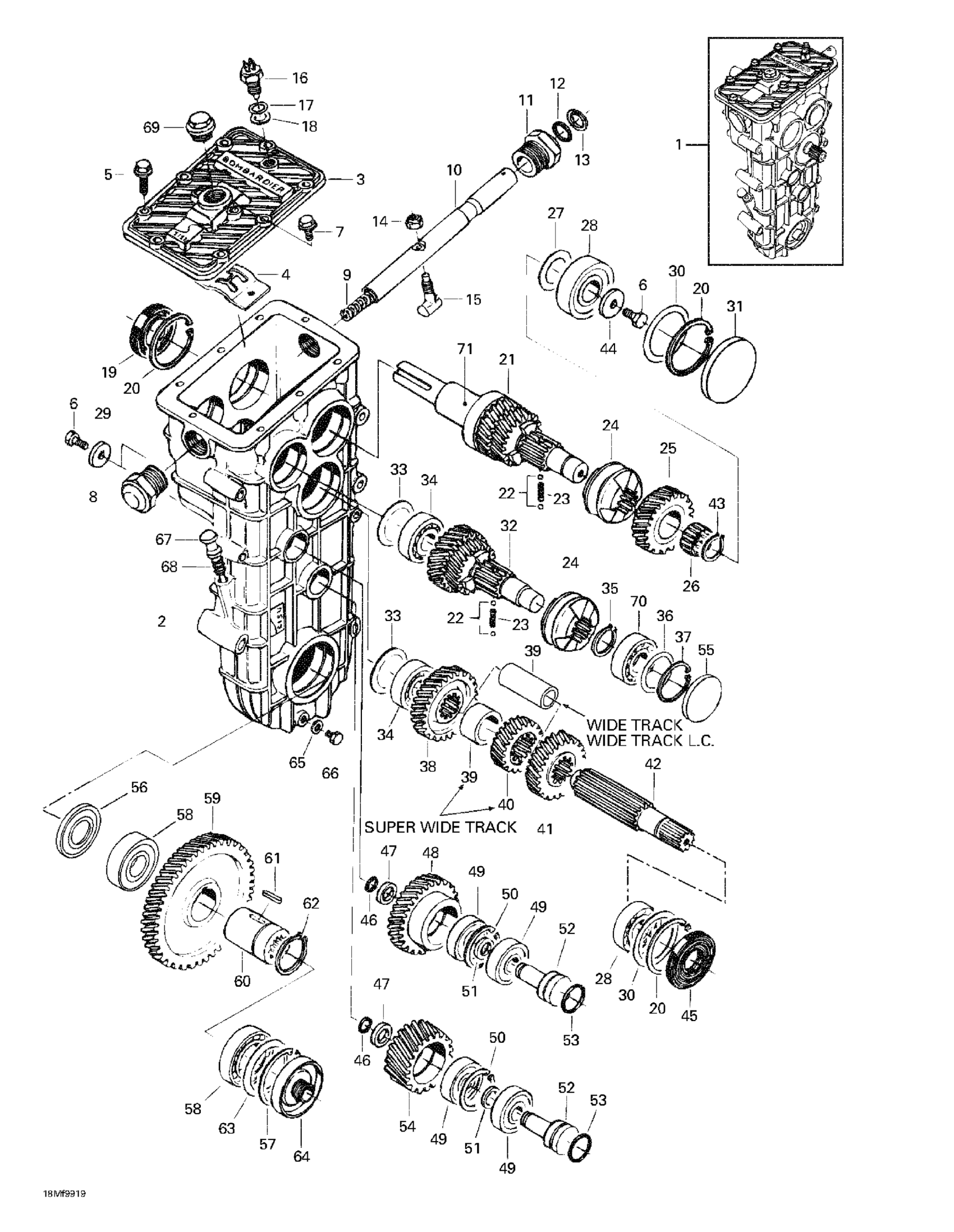

Ski-Doo Skandic Super Wide Track, 1999 Transmission Diagram
#
1
Transmission Ass'y | Includes 1 - 70. Skandic 500F.
M870156074
Unavailable
1
Transmission *Transmission | Skandic SWT.
M870156145
Unavailable
1
Transmission Ass'y | Skandic WT LC.
M870156100
Unavailable
2
HOUSING - Call your local BRP dealership This part replaces M875156138.
875156138
Unavailable
3
COVER - Call your local BRP dealership
M875156043
Unavailable
4
H-SCHEME - Call your local BRP dealership This part replaces M875156111.
875156111
Unavailable
5
Screw 80 x 25 - Call your local BRP dealership This part replaces M537001402.
537001402
Unavailable
7
Screw
M534801362
Unavailable
8
SLEEVE - Call your local BRP dealership This part replaces M875156076.
875156076
Unavailable
9
Spring This part replaces M875156078.
875156078
Unavailable
10
Shaft - Call your local BRP dealership This part replaces M875156072.
875156072
Unavailable
11
SLEEVE - Call your local BRP dealership This part replaces M875156077.
875156077
Unavailable
12
O-ring This part replaces M614601523.
614601523
Unavailable
13
Oil seal - Call your local BRP dealership This part replaces M614102031.
614102031
Unavailable
14
NUT M10 - Call your local BRP dealership This part replaces M510611002.
510611002
Unavailable
15
Pin - Call your local BRP dealership This part replaces M875156073.
875156073
Unavailable
16
Sender
M654100224
Unavailable
17
Shim
M617391218
Unavailable
18
Sealing Ring
M615581216
Unavailable
19
Oil seal This part replaces M614103562.
614103562
Unavailable
20
CIRCLIP - Call your local BRP dealership This part replaces M617330062.
617330062
Unavailable
21
COUNTER SHAFT - Call your local BRP dealership | Includes 11 to 12 This part replaces M875156063.
875156063
Unavailable
Variator Shaft | Includes 13 to 15
M875156155
Unavailable
22
Ball This part replaces M616810064.
616810064
Unavailable
23
Spring - Call your local BRP dealership This part replaces M875156105.
875156105
Unavailable
24
Clutch wheel (Two side) - Call your local BRP dealership This part replaces M875156005.
875156005
Unavailable
25
SPROCKET Z=27 L.H. - Call your local BRP dealership This part replaces M875156052.
875156052
Unavailable
Sprocket 29 Th
M875156135
Unavailable
Sprocket 28 Th
M875156115
Unavailable
26
Needle bearing This part replaces M611002529.
611002529
Unavailable
27
WASHER-AXIAL - Call your local BRP dealership
M616092542
Unavailable
28
BEARING 6305 - Call your local BRP dealership This part replaces M610063050.
610063050
Unavailable
29
Washer | Skandic 500F. Skandic 600.
M875156099
Unavailable
30
Shim 0,3mm - Call your local BRP dealership This part replaces M617395065.
617395065
Unavailable
31
PLUG - Call your local BRP dealership This part replaces M614100062.
614100062
Unavailable
32
Shaft - Call your local BRP dealership This part replaces M875156068.
875156068
Unavailable
33
Plug This part replaces M875152953.
875152953
Unavailable
34
BEARING 6304 - Call your local BRP dealership This part replaces M610063044.
610063044
Unavailable
35
CIRCLIP - Call your local BRP dealership This part replaces M617450028.
617450028
Unavailable
36
Shim
M617394252
Unavailable
37
Retaining Ring (1=10Pcs) This part replaces M31002.
31002
Unavailable
38
Wheel Z=34 L.H. - Call your local BRP dealership This part replaces M875156054.
875156054
Unavailable
39
SLEEVE - Call your local BRP dealership
M875156087
Unavailable
SLEEVE - Call your local BRP dealership
M875156088
Unavailable
40
Sprocket 24 Th
M875156060
Unavailable
41
Sprocket 29Th | SUV 550
M875156051
Unavailable
Sprocket 27 Th
M875156136
Unavailable
42
SHAFT - Call your local BRP dealership This part replaces M875156069.
875156069
Unavailable
43
CIRCLIP - Call your local BRP dealership This part replaces M617450025.
617450025
Unavailable
44
WASHER - Call your local BRP dealership
M875156112
Unavailable
45
Oil seal This part replaces M614102562.
614102562
Unavailable
46
O-RING - Call your local BRP dealership This part replaces M614601224.
614601224
Unavailable
47
Shim This part replaces M875156094.
875156094
Unavailable
48
SPROCKET-28 - Call your local BRP dealership This part replaces M875156050.
875156050
Unavailable
Sprocket 33 Th
M875156059
Unavailable
49
BALL BEARING - Call your local BRP dealership This part replaces M610063036.
610063036
Unavailable
50
Circlip - Call your local BRP dealership This part replaces M617330047.
617330047
Unavailable
51
Washer
M875147205
Unavailable
52
Axe *Shaft This part replaces M875147204.
875147204
Unavailable
53
O-ring This part replaces M614602431.
614602431
Unavailable
54
SPROCKET 31 TH - Call your local BRP dealership
M875156049
Unavailable
Sprocket 26 Th
M875156058
Unavailable
55
Plug This part replaces M614100052.
614100052
Unavailable
56
Seal oil - Call your local BRP dealership | Skandic 500F. This part replaces M2652101.
2652101
Unavailable
57
Snapring - Call your local BRP dealership This part replaces M617330068.
617330068
Unavailable
58
BALL BEARING - Call your local BRP dealership
M610060080
Unavailable
59
SPROCKET-55 - Call your local BRP dealership This part replaces M875156048.
875156048
Unavailable
Sprocket 59 Th
M875156057
Unavailable
Sprocket 53 Th
M875156114
Unavailable
60
Lower Shaft | Skandic 500F. Skandic 500F (SWT).
M875136962
Unavailable
61
Key | Skandic 500F. Skandic 500F (SWT).
M603345070
Unavailable
62
CIRCLIP - Call your local BRP dealership
M617300040
Unavailable
63
ADJUSTMENT SHIM - Call your local BRP dealership This part replaces M617395568.
617395568
Unavailable
64
Bouchon *Plug
M875156104
Unavailable
65
Gasket-ring - Call your local BRP dealership
615580812
Unavailable
66
HEX. SCREW M8 X 10 - Call your local BRP dealership This part replaces M528801342.
528801342
Unavailable
67
Filler Cap Ass'y
M875156097
Unavailable
68
O-ring - Call your local BRP dealership This part replaces M614600725.
614600725
Unavailable
69
Oilplug - Call your local BRP dealership This part replaces M875156098.
875156098
Unavailable
70
Bearing - Call your local BRP dealership This part replaces M6304.
6304
Unavailable
BEARING 6305 - Call your local BRP dealership This part replaces M610063050.
610063050
Unavailable
71
Sleeve
M875156153
Unavailable
