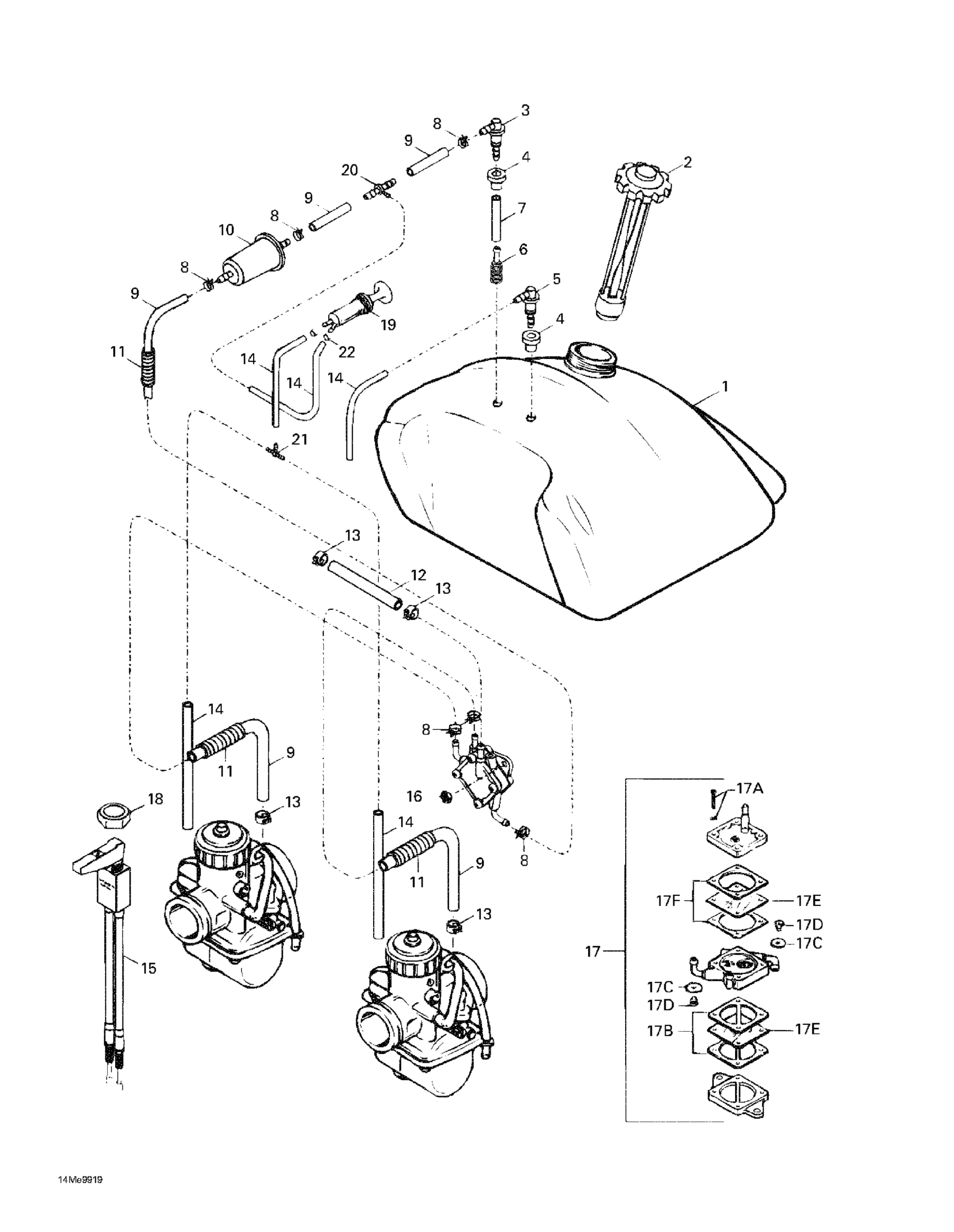

Ski-Doo Skandic Super Wide Track, 1999 Fuel System Diagram

#

Description
Price

1

Fuel Tank

M519393

Unavailable

2

Fuel Tank Cap

572161200

$36.89

3

CONNECTOR-MALE - Call your local BRP dealership This part replaces M5341709.

5341709

Unavailable

4

Grommet

280000674

$4.42

5

Male Connector This part replaces M533535.

533535

$18.43

6

Fuel Filter Strainer | CHALLENGER 1800 5600/5601.

414872100

$9.63

7

Was 415110000 Polyurethane Hose 5.2 mm

219704414

$117.66

8

Spring Clamp

M27086

Unavailable

9

Hose 5/8 1000MM LONG - Call your local BRP dealership

219704397

Unavailable

10

Fuel Filter This part replaces 414363600.

605352516

$17.66

11

HOUSING - Call your local BRP dealership

M28012

Unavailable

12

Polyurethane Hose 10000Mm Long

219704410

$46.12

13

Spring Clamp

414420700

$0.68

14

HOSE - Call your local BRP dealership

M39035

Unavailable

15

Choke This part replaces M535482.

535482

$69.20

16

Elastic Stop Nut M6

232561414

$1.55

17

FUEL PUMP - Call your local BRP dealership | SUV 550

403800600

Unavailable

17A

Screw | Skandic 500F. Skandic 500F (SWT).

404131600

Unavailable

17B

GASKET - Call your local BRP dealership

404902300

Unavailable

17C

GROMMET - Call your local BRP dealership

404902100

Unavailable

17D

VALVE - Call your local BRP dealership | Skandic 500F. Skandic 500F (SWT).

404900300

Unavailable

17E

DIAPHRAGM - Call your local BRP dealership

404902200

Unavailable

17F

GASKET - Call your local BRP dealership

404902400

Unavailable

18

NUT-PLASTIC - Call your local BRP dealership

512059364

Unavailable

19

Primer

415060500

$33.05

20

T-Fitting

414222400

$1.33

21

T Fitting

M21067

Unavailable

22

Clamp-spring

M543230

Unavailable
