Description

Price

1

CRANKCASE ASS?Y - Call your local BRP dealership | Includes 1 - 6.

420888493

Unavailable

2

Washer-Lock Din.128

420945832

$1.49

3

Hex. Screw M8 X 70

420841201

$3.19

4

Hex. Screw M8 X 45

207084544

$1.49

5

ALLEN SCREW M8 X 50 - Call your local BRP dealership

420841566

Unavailable

6

SOCKET HEAD SCREW M8 X 65 - Call your local BRP dealership

420841841

Unavailable

7

Cable Grommet

420860962

$13.49

8

Lock Washer

512056700

$3.29

9

Elastic Locking Nut M10 X 1.5

233601416

$1.69

10

Stud M8 X 173.5

420840556

$15.99

11

Stud M10 | Skandic 500F. Skandic 500F (SWT).

420640030

Unavailable

12

Open Clamp

414176000

$1.99

13

WASHER-LOCK DIN.128 - Call your local BRP dealership

420945751

Unavailable

14

Hex. Screw M6 X 16

207161644

$1.49

15

Was 413702700 Loctite 515, 50 ml

219704462

Unavailable

15

Loctite 243, 10 ml

293800060

$21.49

17

Wire Support | Touring E. Touring E LT (2). Touring LE.

420953310

Unavailable

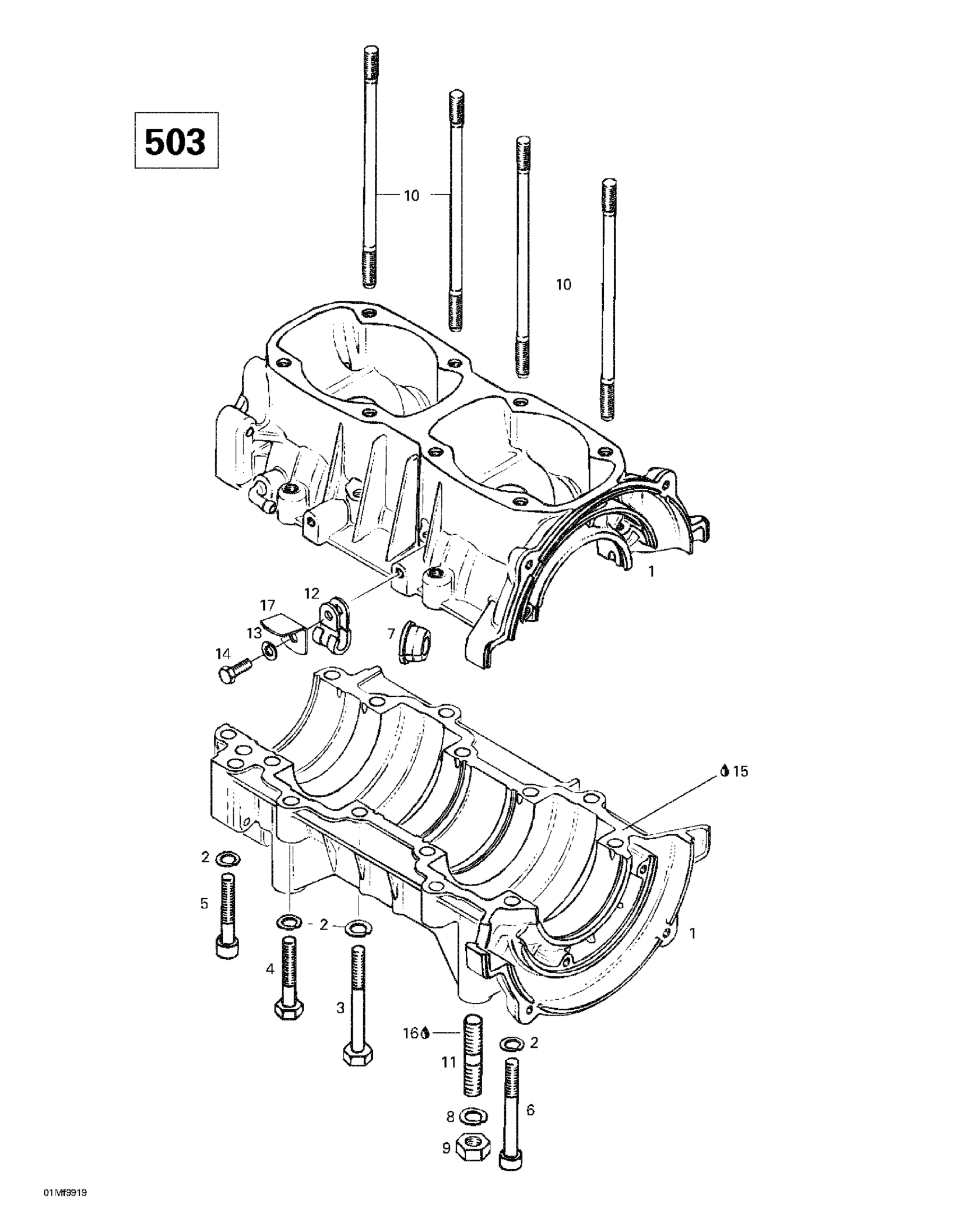

Ski-Doo Skandic Super Wide Track, 1999 Crankcase (503) Diagram

CRANKCASE ASS?Y - Call your local BRP dealership | Includes 1 - 6.

Washer-Lock Din.128

Hex. Screw M8 X 70

Hex. Screw M8 X 45

ALLEN SCREW M8 X 50 - Call your local BRP dealership

SOCKET HEAD SCREW M8 X 65 - Call your local BRP dealership

Cable Grommet

Lock Washer

Elastic Locking Nut M10 X 1.5

Stud M8 X 173.5

Stud M10 | Skandic 500F. Skandic 500F (SWT).

Open Clamp

WASHER-LOCK DIN.128 - Call your local BRP dealership

Hex. Screw M6 X 16

Was 413702700 Loctite 515, 50 ml

Loctite 243, 10 ml

Wire Support | Touring E. Touring E LT (2). Touring LE.
