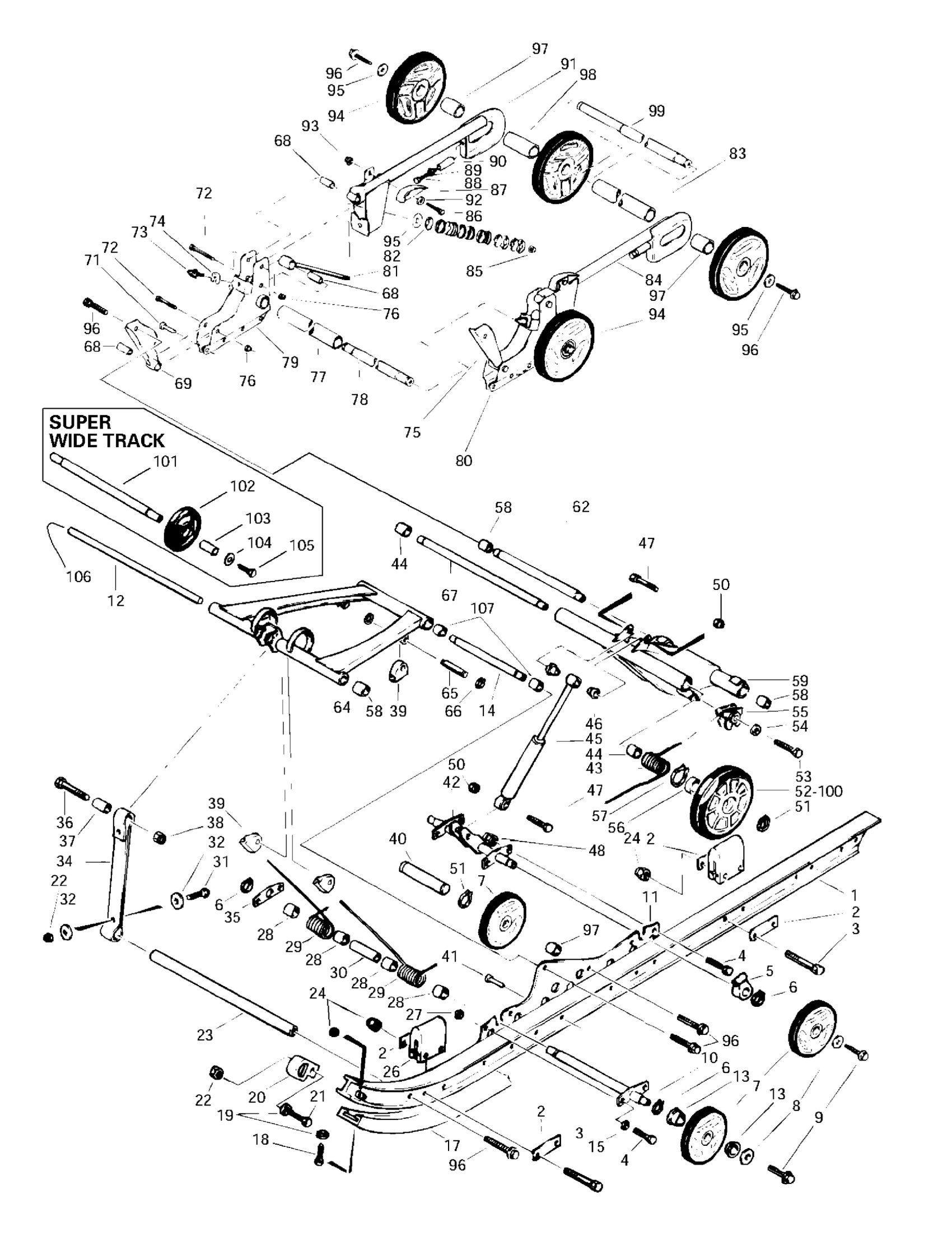

Ski-Doo Skandic Super Wide Track, 1997 Rear Suspension Diagram

#

Description
Price

1

RH Runner Ass'y

M519826

Unavailable

LH Runner Ass'y

M519827

Unavailable

LH Runner

M5140395

Unavailable

2

Washer

M548387

Unavailable

3

Hex. Screw M6 X 40

207064044

$1.48

4

Hex. Screw M8 x 16

207181644

$0.87

5

Spring Support

M548804

Unavailable

6

Circlip 20X1.75 DIN471 This part replaces M31007.

293370056

Unavailable

7

Wheel 135 | Includes 18 to 19

503190797

Unavailable

8

Flat Washer 8 mm

234082410

$1.11

9

HEX. SCREW M8 X 20 - Call your local BRP dealership This part replaces M40336.

40336

Unavailable

10

Axle

M539653

Unavailable

11

RH Support

M538794

Unavailable

LH Support

M538793

Unavailable

12

Boggie Shaft This part replaces M542794.

542794

Unavailable

Bogie Shaft This part replaces M542793.

542793

Unavailable

13

Cushion

503189534

Unavailable

14

Shaft This part replaces M549695.

549695

Unavailable

15

Hex. Screw M6 X 40

207064044

$1.48

16

HEX. SCREW M8 X 20 - Call your local BRP dealership This part replaces M40336.

40336

Unavailable

17

Runner Shoe

M549582

Unavailable

18

Hex. Screw M6 X 20 | XT Models

207162044

$0.62

19

Flat Washer 6 mm

234061410

Unavailable

20

Runner Protector

605348954

Unavailable

21

Hex. Screw M6 X 25

207162544

Unavailable

22

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

23

Cross Shaft

M549718

Unavailable

24

Hex. Screw M6 X 40

207064044

$1.48

26

RUBBER STOPPER - Call your local BRP dealership

570023100

Unavailable

27

Elastic Locking Nut M10 X 1.5

233601416

$1.68

28

Sleeve

M548841

Unavailable

29

Spring This part replaces M538797.

538797

Unavailable

Spring R.H. This part replaces M538798.

538798

Unavailable

RH Spring | Skandic Wide Track LC.

M529896

Unavailable

LH Spring | Skandic Wide Track LC.

M529895

Unavailable

30

Sleeve

M5440313

Unavailable

31

Hex. Screw M6 X 25

207162544

Unavailable

32

Flat Washer 6 mm

234062410

$0.64

34

Stopper Strap

M536063

Unavailable

35

Plate Support

M548469

Unavailable

36

Hex. Screw M8 X 50

207085044

Unavailable

37

Sleeve

M546065

Unavailable

38

Hex. Elastic Stop Nut M8

232581414

Unavailable

39

Spring Roller This part replaces M548799.

548799

Unavailable

40

Support Shaft

M549680

Unavailable

41

RIVET - Call your local BRP dealership

M544212

Unavailable

42

SHAFT - Call your local BRP dealership This part replaces M5345454.

5345454

Unavailable

43

Spring L.H. This part replaces M538805.

538805

Unavailable

Spring L.H. This part replaces M538805.

538805

Unavailable

Spring R.H. This part replaces M538806.

538806

Unavailable

Spring L.H. This part replaces M5342229.

5342229

Unavailable

44

Bearing This part replaces M31023.

31023

Unavailable

45

SHOCK - Call your local BRP dealership This part replaces M23016.

23133

Unavailable

46

Shock Spacer - Call your local BRP dealership This part replaces M544417.

544417

Unavailable

47

Hex. Screw M10 X 1.5 X 50

207005044

Unavailable

48

Hex. Elastic Stop Nut M8

232581414

Unavailable

50

Elastic Locking Nut M10 X 1.5

233601416

$1.68

51

Retaining Ring 25X2 Din471(1=10Pcs) This part replaces M31001.

31001

Unavailable

52

Idler Wheel

M46032

Unavailable

53

HEX. SCREW M6 X 10 - Call your local BRP dealership

207161044

Unavailable

54

Flat Washer 6 mm

234061410

Unavailable

55

LH ADJUST CAM - Call your local BRP dealership

572030800

Unavailable

RH ADJUST CAM - Call your local BRP dealership

572030900

Unavailable

56

Ball Bearing

293350115

Unavailable

57

Retaining Ring (1=10Pcs) This part replaces M31002.

31002

Unavailable

58

Shaft Sleeve This part replaces M542770.

542770

Unavailable

59

Bras Arr*Rear Arm This part replaces M5348213.

5348213

Unavailable

Rear Arm Welded | Skandic Wide Track LC.

M539654

Unavailable

62

Swing shaft - Call your local BRP dealership This part replaces M549656.

549656

Unavailable

64

Front Arm Welded | Skandic Super Wide Track.

M5240572

Unavailable

Front Arm Welded | Skandic Wide Track LC.

M5241654

Unavailable

65

Lock Pin

M5440082

Unavailable

66

Circlip

M41035

Unavailable

67

REAR ARM SHAFT - Call your local BRP dealership This part replaces M5340577.

5340577

Unavailable

Rear Cross Shaft | Skandic Wide Track LC.

M539652

Unavailable

68

Spacer This part replaces M545758.

545758

Unavailable

69

Crank Arm R.H. This part replaces M5440350.

5440350

Unavailable

71

RIVET - Call your local BRP dealership

M544212

Unavailable

72

Hex. Screw M8 X 45

207084544

Unavailable

73

Rubber Stopper - Call your local BRP dealership This part replaces M535455.

535455

Unavailable

74

Adjustment Plate This part replaces M5440645.

5440645

Unavailable

75

Crank Arm Lh This part replaces M5440349.

5440349

Unavailable

76

Hex. Elastic Stop Nut M8

232581414

Unavailable

77

Sleeve

M541815

Unavailable

78

Axle This part replaces M541816.

541816

Unavailable

79

Support For Rearaxle Lh This part replaces M539672.

539672

Unavailable

80

Support For Rearaxle Rh This part replaces M539673.

539673

Unavailable

81

BOLT-EYE ADJUSTER - Call your local BRP dealership This part replaces M5440377.

5440377

Unavailable

82

Cup Spring This part replaces M25004.

25004

Unavailable

83

Sleeve

M5441980

Unavailable

Sleeve | Skandic Wide Track LC.

M549713

Unavailable

84

LH Extension

M5241870

Unavailable

85

Hex. Nut M10 X 1.5

232006414

$1.11

86

Hex. Screw M6 X 20 | XT Models

207162044

$0.62

87

Protector

M548262

Unavailable

88

SCREW - Call your local BRP dealership

M40239

Unavailable

89

Hex. Nut M10 X 1.5

232006414

$1.11

90

Spacer - Call your local BRP dealership This part replaces M546668.

546668

Unavailable

91

RH Extension

M5241871

Unavailable

92

Flat Washer 6 mm

234062410

$0.64

93

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

94

Bond Wheel

570045322

Unavailable

95

Flat Washer 10 mm This part replaces M20011.

234002410

Unavailable

96

Hex Sc. M10X 30 Bn73 M8.8 Zne(1=10Pcs) This part replaces M40335.

40335

$3.11

97

Sleeve

M546577

Unavailable

98

Spacer This part replaces M5440422.

5440422

Unavailable

99

Axe *Shaft

M5341979

Unavailable

Shaft | Skandic Wide Track LC.

M5342045

Unavailable

100

Hex Sc. M10x 30 BN73 m8.8 MUP(1=10pcs) - Call your local BRP dealership This part replaces M40314.

40314

$2.94

101

Shaft | Skandic Super Wide Track.

M5342041

Unavailable

102

Idler Wheel

M46027

Unavailable

103

Sleeve | Skandic Super Wide Track.

M541776

Unavailable

104

Lock Washer 8 mm

234181401

Unavailable

105

Hex. Screw M8 X 20

207182044

$0.61

106

Sleeve | Skandic Wide Track LC.

M5442047

Unavailable

107

Plastic Bushing This part replaces M541528.

541528

Unavailable
