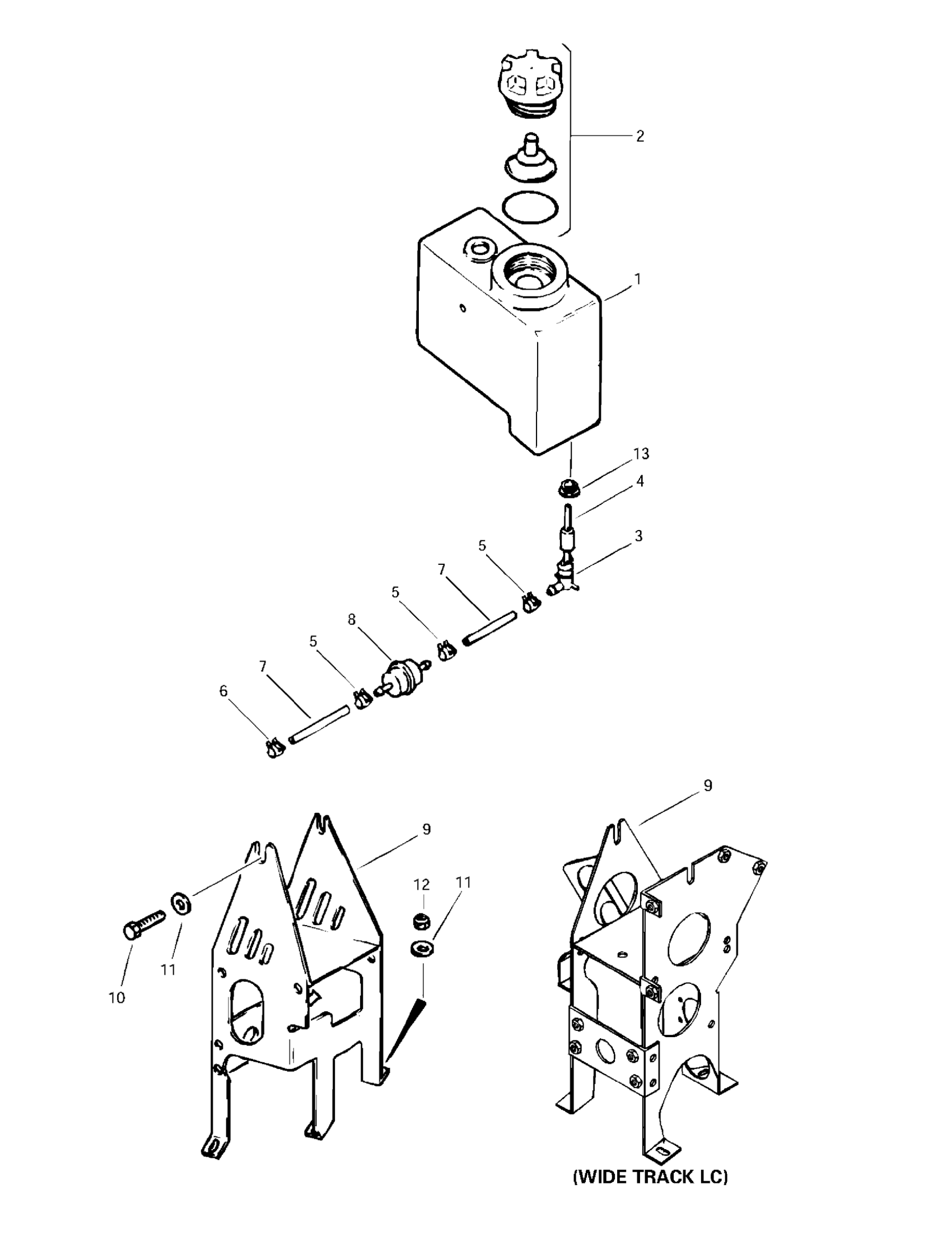

Ski-Doo Skandic Super Wide Track, 1997 Oil Tank And Support Diagram

#

Description

Price

1

Oil Tank

571002500

Unavailable

2

OIL TANK CAP - Call your local BRP dealership

580657210

Unavailable

3

LEVEL SWITCH - Call your local BRP dealership | Canada / U.S.A

414681800

Unavailable

4

Float

414681900

Unavailable

5

Spring Clamp

414415200

$0.83

6

Spring Clamp

414420700

Unavailable

7

Polyurethane Hose, 8 Mm 3000Mm Long

219704412

$27.27

8

Filter

414536500

$3.25

9

Support | Skandic Super Wide Track.

M5340976

Unavailable

Support | Skandic Wide Track LC.

M5342059

Unavailable

10

HEX. SCREW M6 X 12 - Call your local BRP dealership

207161244

Unavailable

11

Washer | Skandic 500F. Skandic 500F (SWT).

M2009

Unavailable

12

Elastic Stop Nut M6

232561414

Unavailable

13

Insulating Ring

570023000

Unavailable
