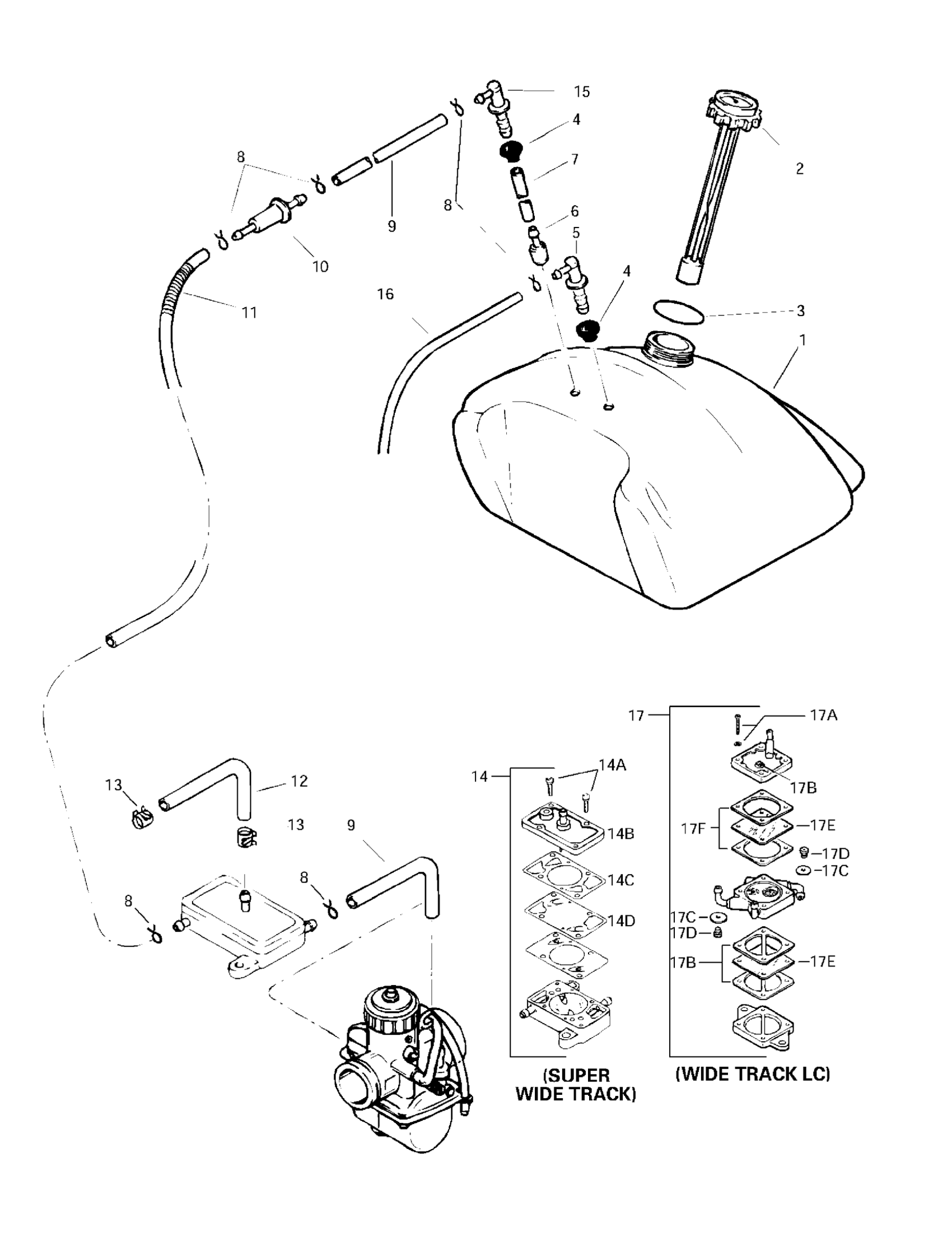

Ski-Doo Skandic Super Wide Track, 1997 Fuel System Diagram

#

Description
Price

1

Fuel Tank

M519393

Unavailable

2

Fuel Tank Cap

572161200

$35.79

3

Gasket

M544297

Unavailable

4

Grommet

280000674

$4.28

5

Male Connector This part replaces M533535.

533535

$17.88

6

Fuel Filter

414865700

$9.63

7

Hose

M39030

Unavailable

8

Spring Clamp

M27086

Unavailable

9

Polyurethane Hose 10000Mm Long

219704410

$52.96

10

Fuel Filter This part replaces 414363600.

605352516

$17.13

11

HOUSING - Call your local BRP dealership

M28012

Unavailable

12

Polyurethane Hose 10000Mm Long

219704410

$52.96

13

Spring Clamp

414420700

$0.66

14

FUEL PUMP DF44-226A - Call your local BRP dealership

403800800

Unavailable

14A

Screw

404118500

Unavailable

14B

Packing (Cap)

404901600

Unavailable

14C

Diaphragm

404901700

Unavailable

14D

Membrane

404901800

Unavailable

15

Male Connector | Skandic Wide Track LC.

M533606

Unavailable

16

HOSE - Call your local BRP dealership

M39035

Unavailable

17

FUEL PUMP - Call your local BRP dealership | SUV 550

403800600

Unavailable

17A

Screw | Skandic 500F. Skandic 500F (SWT).

404131600

Unavailable

17B

GASKET - Call your local BRP dealership

404902300

Unavailable

17C

GROMMET - Call your local BRP dealership

404902100

Unavailable

17D

VALVE - Call your local BRP dealership | Skandic 500F. Skandic 500F (SWT).

404900300

Unavailable

17E

DIAPHRAGM - Call your local BRP dealership

404902200

Unavailable

17F

GASKET - Call your local BRP dealership

404902400

Unavailable

18

CABLE-CHOKE - Call your local BRP dealership | Includes 33 to 34

M524046

Unavailable

Choke This part replaces M535482.

535482

$67.13
