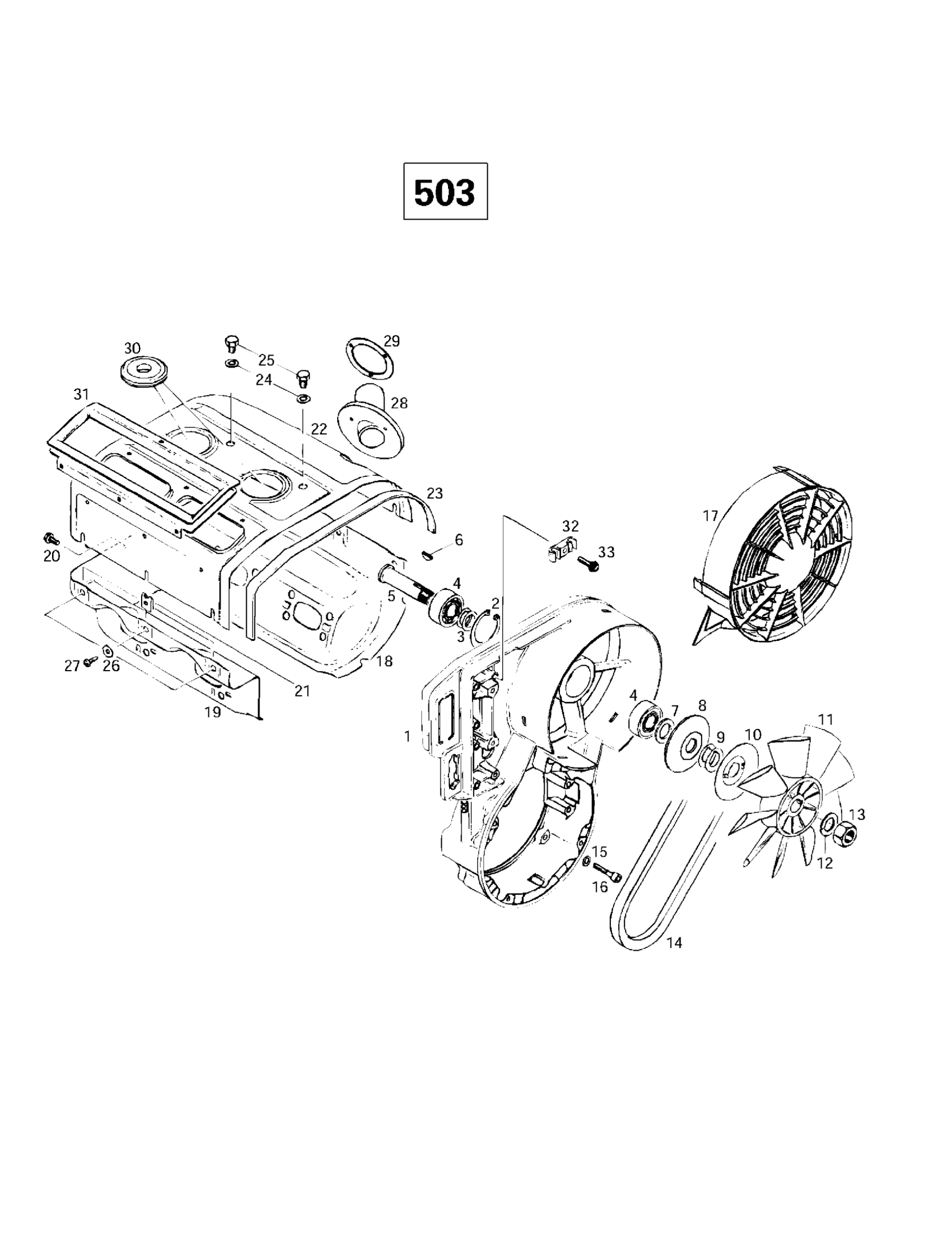

Ski-Doo Skandic Super Wide Track, 1997 Cooling System Fan (503) Diagram

#

Description
Price

1

Fan Housing

420912202

Unavailable

2

Lock Ring

420945880

Unavailable

3

Shim

420244585

Unavailable

4

Ball Bearing

420832161

Unavailable

5

Fan Axle This part replaces 420937940.

420937941

Unavailable

6

Woodruff Key

420246015

Unavailable

7

Spacer Bushing

420827650

Unavailable

8

Flange

420980496

Unavailable

9

Shim 0.5 mm

420827080

Unavailable

Shim 0.2 mm

420827082

Unavailable

10

Protection Washer

420980523

Unavailable

11

FAN - Call your local BRP dealership

420866292

Unavailable

12

Lock Washer

420945756

Unavailable

13

Nut M16 This part replaces 420942285.

420942289

Unavailable

14

V-Belt

414630800

$37.66

15

WASHER-LOCK DIN.128 - Call your local BRP dealership

420945751

Unavailable

16

Socket Head Screw M6 X 30

205063044

Unavailable

17

FAN COVER - Call your local BRP dealership

420975695

$26.89

18

Cylinder Cowl (Exhaust Side) | Skandic Super Wide Track.

420911069

Unavailable

19

Cylinder Cowl (Carburetor Side) | Skandic Super Wide Track.

420911067

Unavailable

20

TAPTITE SCREW M6 X 12 - Call your local BRP dealership

420240385

Unavailable

21

Spring Nut

420842390

Unavailable

22

Cylinder Cowl (Upper Half) | Skandic Super Wide Track.

420912824

Unavailable

23

Sealing Strip 440 mm | Skandic Super Wide Track.

420960961

Unavailable

24

Washer-Lock Din.128

420945832

Unavailable

25

Hex. Screw M8 x 16

207181644

$0.87

26

FLAT WASHER - Call your local BRP dealership

420926180

Unavailable

27

Tapping Screw M4.8 X 16

417300006

Unavailable

28

Fitting | Skandic Super Wide Track.

570125500

Unavailable

29

Connector Ring | Skandic Super Wide Track.

512030300

Unavailable

30

Grommet | Skandic Super Wide Track.

570124700

Unavailable

31

Seal | Skandic Super Wide Track.

570124600

Unavailable

32

CLAMP - Call your local BRP dealership

420860940

Unavailable

33

SCREW-TAPPING - Call your local BRP dealership This part replaces 420941250.

420941251

Unavailable
