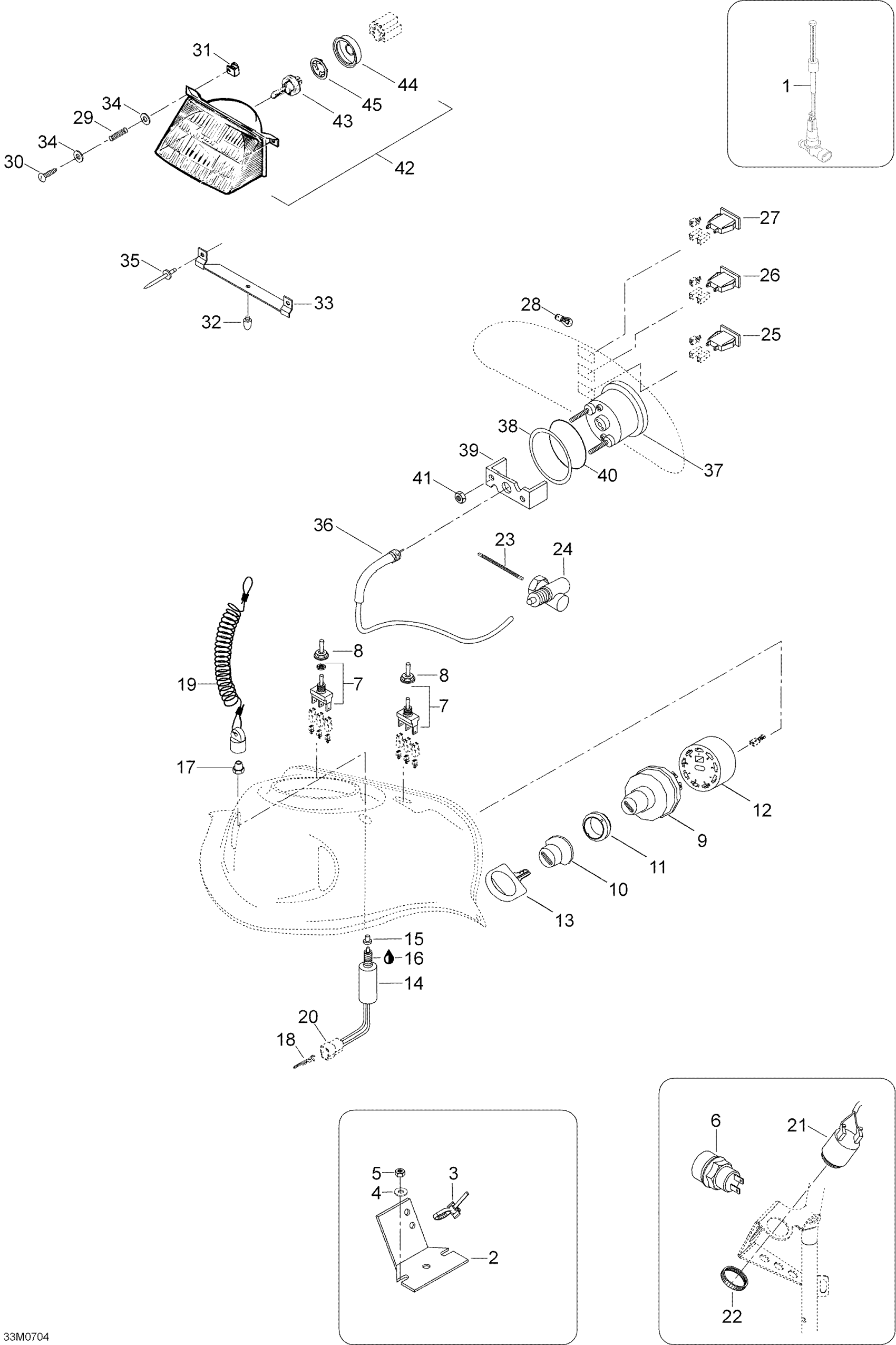

Ski-Doo Skandic LT 440F, 2007 Electrical System Diagram

#

Description
Price

1

OIL SENSOR - Call your local BRP dealership

605452095

Unavailable

2

Cooling Plate

605350731

Unavailable

3

Tie-Rap 180 mm

414115200

$0.09

4

Flat Washer 6 mm

234062410

$0.64

5

Elastic Stop Nut M6

232561414

Unavailable

6

Push Button

415130372

Unavailable

7

Switch (Heating Grip) | FREERIDE

410107300

$34.58

8

Switch Cover

515175281

$15.03

9

IGNITION SWITCH - Call your local BRP dealership

515176548

Unavailable

10

Switch Boot

570013700

Unavailable

11

FACE NUT - Call your local BRP dealership

410112100

$14.29

12

FEMALE TERMINAL HOUSING, 9 CIRCUITS - Call your local BRP dealership

572150700

Unavailable

13

Blank Key

415129350

Unavailable

14

Brake Switch

515175653

$15.57

15

Plunger Cap

570151100

$10.14

16

Was 293550004 Dielectric Grease, 150 g

219704453

Unavailable

17

Switch Nut

515145900

$10.83

18

CONNECTOR - Call your local BRP dealership

605642628

Unavailable

19

Cap Ass'y

515178283

$37.66

20

Male Housing

M42268

Unavailable

21

HORN - Call your local BRP dealership

515176035

Unavailable

22

PLASTIC NUT - Call your local BRP dealership

414805101

$3.57

23

Square Pin Nska L=75Mm This part replaces M45075.

45075

$18.43

24

Gear Unit 1:1.4 Left Op-0127-002-N0-Gu This part replaces M35021.

35021

Unavailable

25

PILOT LAMP, ELECTRIC REVERSE - Call your local BRP dealership | North America

410113400

$9.98

26

PILOT LAMP, HEADLAMP - Call your local BRP dealership | North America

515175726

Unavailable

27

PILOT LAMP, OIL LEVEL/BRAKE - Call your local BRP dealership

515175728

Unavailable

28

INSTRUMENTATION BULB - Call your local BRP dealership

410504200

Unavailable

29

Spring

517168600

Unavailable

30

PLASTITE PHILLIPS SCREW M4 X 40 - Call your local BRP dealership

243244040

Unavailable

31

Projector Nut

572078600

Unavailable

32

RUBBER STOPPER - Call your local BRP dealership

410608200

$5.35

33

HOLDER - Call your local BRP dealership

M539864

Unavailable

34

Flat Washer M5

234051410

Unavailable

35

Rivet

M36489

Unavailable

36

Speedometer Cable

M45006

Unavailable

37

Speedometer Kmh/mph

605152889

Unavailable

38

Washer

517258500

Unavailable

39

Case Holder

414806500

Unavailable

40

O-Ring

414807100

Unavailable

41

NUT M5 - Call your local BRP dealership

M33062

Unavailable

42

Headlamp | Includes 42 to 45

410609100

Unavailable

43

Halogen Bulb, 60/55 W, 12 V ( H4 )

515176274

Unavailable

44

PROTECTOR CAP - Call your local BRP dealership

410607100

Unavailable

45

BULB HOLDER - Call your local BRP dealership

410608300

$9.97
