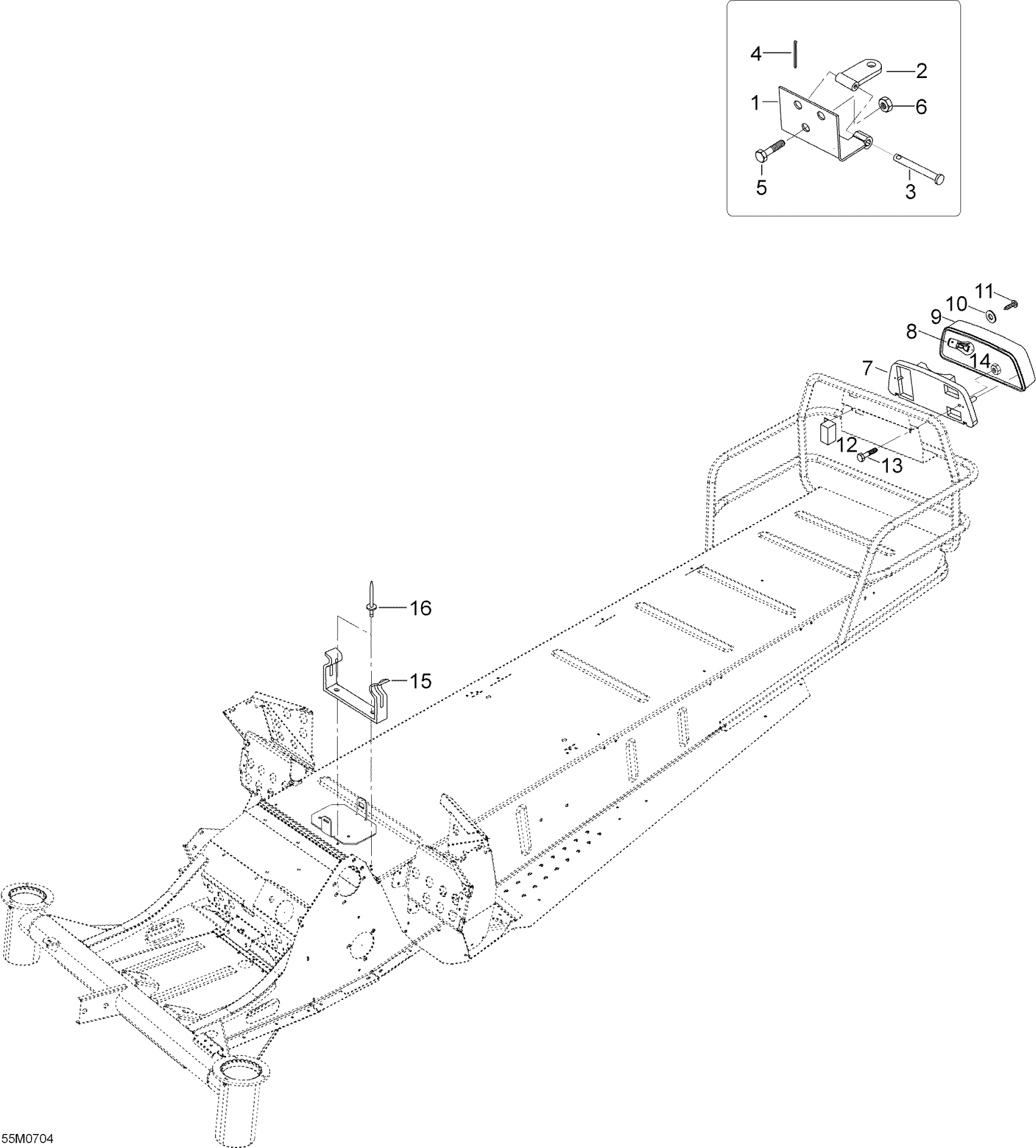

Ski-Doo Skandic LT 440F, 2007 Frame and Components Diagram

#

Description
Price

1

Plate

M5346638

Unavailable

2

TONGUE WELD - Call your local BRP dealership | Model- North America This part replaces M548745.

548745

Unavailable

3

PIN-RETAINER - Call your local BRP dealership | North America

560309200

Unavailable

4

Cotter Pin

41031

$6.26

5

HEX. SCREW M8 X 20 - Call your local BRP dealership This part replaces M40336.

40336

Unavailable

6

Hex. Elastic Stop Nut M8

232581414

$0.47

7

LIGHT HOUSING - Call your local BRP dealership

510004061

Unavailable

8

Bulb

520000758

$7.49

9

Lens

414513700

Unavailable

10

Phillips Tapping Screw M3.9 X 25

209632540

$0.98

11

Phillips Tapping Screw M3.9 X 25

209632540

$0.98

12

PROTECTION PLATE - Call your local BRP dealership

605448415

Unavailable

13

Hex. Screw M6 X 30

207063044

$0.98

14

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

15

Support

M5346204

Unavailable

16

Rivet

36108

$1.85
